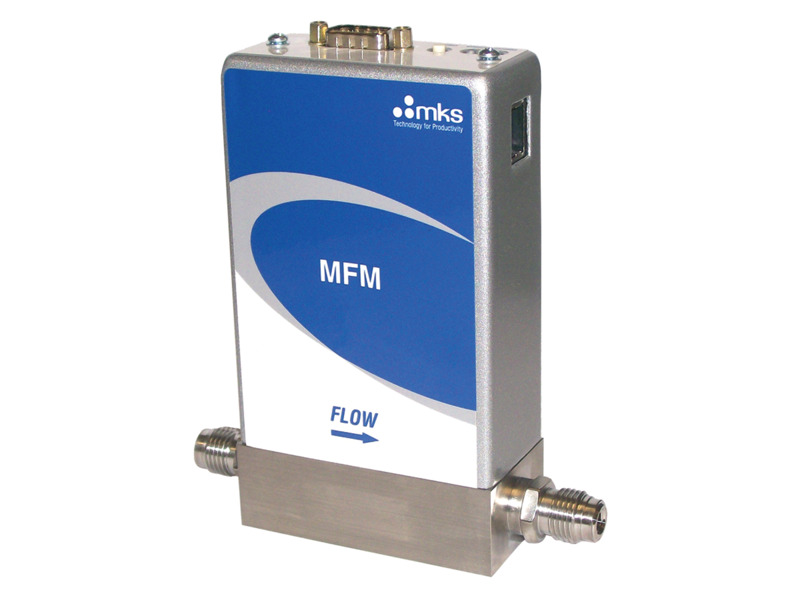

GM50A/GM51A Metal-sealed 5-50,000 sccm Mass Flow Meters
Model: GM51A-MFM
GM50A/GM51A Metal-sealed 5-50,000 sccm Mass Flow Meters
Model: GM51A-MFM
Overview
Overview
The GM51A is a 1.125 inch wide, general purpose metal sealed, Mass Flow Meter (MFM) well suited for a wide variety of applications requiring flow metering from 5 sccm to 50 slm Full Scale, N2 equivalent.
Technical Specs
- TypeMass Flow Meter (MFM)
- Full Scale Flow Range5000 sccm
- Measurement Ranges0.1-100% of Full Scale (range on mech.)
- Fitting Type0.275Analog 0-5 VDC (9 Pin D connector), Tied Grounds
- Flow Input Output SignalVoltage (0 to 5 VDC)
Current (4 to 20 mA)Voltage (0 to 5 VDC)
Current (4 to 20 mA)
- ConnectorAnalog 0-5 VDC (15 pin D Connector), Celerity
- ComplianceCE
