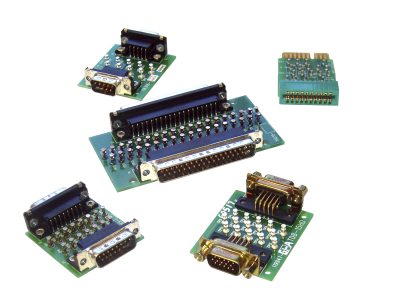

Our voltage monitoring diagnostic boards offer a convenient and fast method for calibrating, testing and troubleshooting MKS Mass Flow Controllers, Baratron Capacitance Manometers and other electronic instruments.
- Industry standard connectors for easy in-situ monitoring of input/output
- Compact package for testing/troubleshooting in tight spaces
- For mass flow controllers, Baratron capacitance manometers and other electronic instruments See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | TCE-20Test Diagnostic Board, 20 pin edge card, female to male | |||||
 | TDB-15Test Diagnostic Board, 15 pin D, female to male | In Stock | ||||
 | TDB-15HDTest Diagnostic Board, 15 pin high density D, female to male | |||||
| TDB-25Test Diagnostic Board, 25 pin D, female to male | ||||||

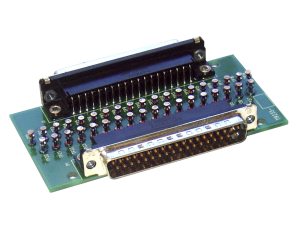

 | TDB-37Test Diagnostic Board, 37 pin D, female to male | |||||

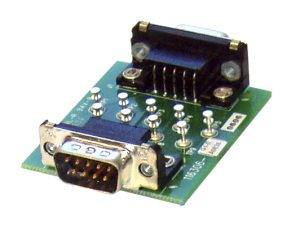

 | TDB-9Test Diagnostic Board, 9 pin D, female to male | In Stock |
