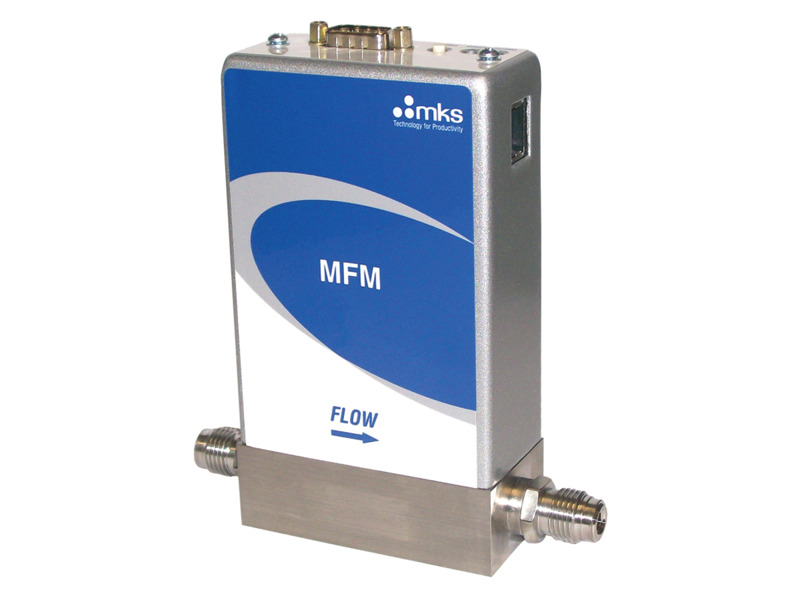

GM50A/GM51A Metal-sealed 5-50,000 sccm Mass Flow Meters
Model: GM50A-MFM
GM50A/GM51A Metal-sealed 5-50,000 sccm Mass Flow Meters
Model: GM50A-MFM
Overview
Overview
The GM50A is a general purpose, metal sealed, 1.45 inch wide, Mass Flow Meter (MFM) well suited for a wide variety of applications requiring flow metering from 5 sccm to 50 slm Full Scale, N2 equivalent. The GM50A Meter incorporates the latest in digital flow meter electronics along with a well proven, patented thermal sensor and mechanical design.
Technical Specs
- TypeMass Flow Meter
- Full Scale Flow Range10000 sccm
- Measurement Ranges2-100% of Full Scale (range on mech.)
- Fitting TypeW-seal surface mount
- Flow Input Output SignalVoltage (0 to 5 VDC)
Current (4 to 20 mA)
- Analog Connector15 pin Type D male
9 pin Type D male
15 pin Type D male - ComplianceCE
Technical Specs
- TypeMass Flow Meter
- Full Scale Flow Range10000 sccm
- Measurement Ranges2-100% of Full Scale (range on mech.)
- Fitting TypeW-seal surface mount
- Flow Input Output SignalVoltage (0 to 5 VDC)
Current (4 to 20 mA)
- Analog Connector15 pin Type D male
9 pin Type D male
15 pin Type D male - ComplianceCE
Resources & Downloads
Literature
GM50A Metal Sealed Mass Flow Meter, 5 sccm - 50 slm(2.4 MB, PDF)
