Pipe compression fitting adapters allow ISO-KF vacuum flanges to be compression fitted to vacuum pipe.

Adapt to hand tightened pipe compression fitting
Compression connect for tube insertion
Viton O-Ring

See All Features

Show Filters:

Showing 17 of 17 total products

	Compare	Description	Compatibility	Drawings, CAD & Specs	Flange Size	Tube OD	Inner Diameter	Length	Avail.	Price

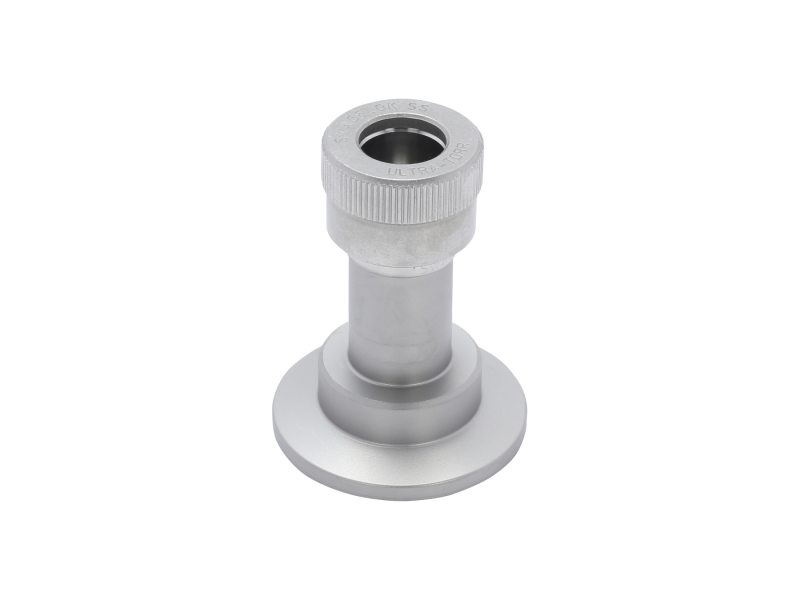

		100316903ISO-KF Flange Adapter, NW25 to 0.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW25	0.5 in.	0.41 in. (10 mm)	2.4 in. (61 mm)	2 Weeks	$113

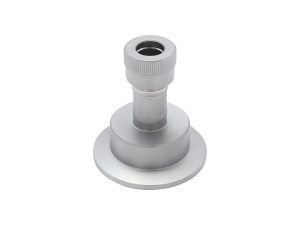

		100316905ISO-KF Flange Adapter, NW40 to 0.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW40	0.5 in.	0.41 in. (10 mm)	2.6 in. (66 mm)	5 Weeks	$453
		100316906ISO-KF Flange Adapter, NW50 to 1.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW50	1.5 in.	1.25 in. (32 mm)	3.0 in. (76.2 mm)	Contact Us	$872
		100316910ISO-KF Flange Adapter, NW10 to 0.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW10	0.5 in.	0.41 in. (10 mm)	2.1 in. (53 mm)	Contact Us

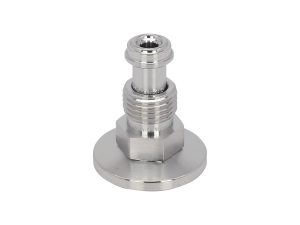

		100316911ISO-KF Flange Adapter, NW16 to 0.25 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW16	0.25 in.	0.19 in. (5 mm)	1.4 in. (36 mm)	5 Weeks	$273

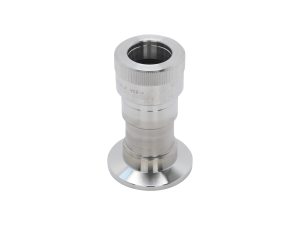

		100316913ISO-KF Flange Adapter, NW25 to 0.75 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW25	0.75 in.	0.62 in. (16 mm)	2.5 in. (64 mm)	Contact Us	$470
		100316915ISO-KF Flange Adapter, NW40 to 0.75 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW40	0.75 in.	0.62 in. (16 mm)	2.8 in. (71 mm)	Contact Us	$730
		100316916ISO-KF Flange Adapter, NW50 to 2.0 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW50	2.0 in.	2.01 in. (51 mm)	3.4 in. (87 mm)	5 Weeks	$825
		100316921ISO-KF Flange Adapter, NW16 to 0.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW16	0.5 in.	0.41 in. (10 mm)	2.4 in. (61 mm)	2 Weeks	$315
		100316923ISO-KF Flange Adapter, NW25 to 1.0 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW25	1.0 in.	0.88 in. (22 mm)	2.4 in. (61 mm)	5 Weeks	$525
		100316925ISO-KF Flange Adapter, NW40 to 1.0 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW40	1.0 in.	0.88 in. (22 mm)	2.8 in. (71 mm)	Contact Us	$537
		100316926ISO-KF Flange Adapter, NW50 to 0.75 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW50	0.75 in.	0.62 in. (16 mm)	2.8 in. (71 mm)	Contact Us	$1,405
		100316931ISO-KF Flange Adapter, NW16 to 0.75 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW16	0.75 in.	0.62 in. (16 mm)	2.4 in. (61 mm)	5 Weeks	$770
		100316935ISO-KF Flange Adapter, NW40 to 1.5 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW40	1.5 in.	1.25 in. (32 mm)	2.9 in. (74 mm)	Contact Us	$680

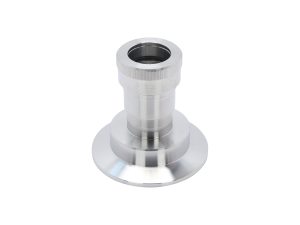

		100316936ISO-KF Flange Adapter, NW50 to 1.0 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW50	1.0 in.	0.88 in. (22 mm)	2.8 in. (71 mm)	5 Weeks	$580
		100316945ISO-KF Flange Adapter, NW40 to 1.125 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW40	1.125 in.	1.14 in. (29 mm)	2.9 in. (74 mm)	Contact Us	$481
		100316946ISO-KF Flange Adapter, NW50 to 1.125 inch O.D. Pipe Compression Fitting	UNIVERSAL		NW50	1.125 in.	1.14 in. (29 mm)	2.9 in. (74 mm)	5 Weeks	$364

Specifications

Component Type
Pipe Compression Fitting Adapter
Series
Series 31

Material
Stainless Steel
Flange Type
ISO-KF

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings(1.1 MB, PDF)
