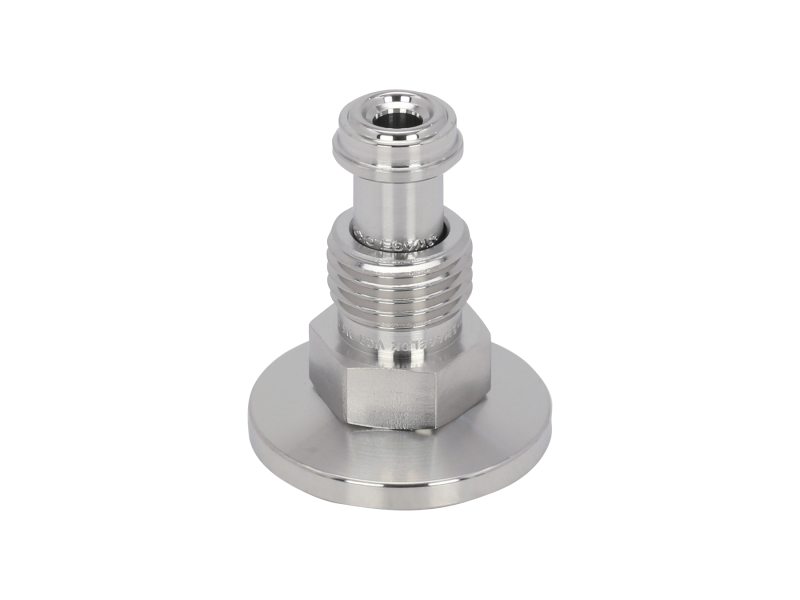

ISO-KF Flange Adapter, NW16 to 0.25 inch O.D. Pipe Compression Fitting
Model: 100316911
ISO-KF Flange Adapter, NW16 to 0.25 inch O.D. Pipe Compression Fitting
ISO-KF Flange Adapter, NW16 to 0.25 inch O.D. Pipe Compression Fitting
Model: 100316911
Overview
Overview
The 100316911 ISO-KF Flange Adapter is used to convert a NW16 size ISO-KF vacuum flange to a 1/4 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Technical Specs
-
Component TypePipe Compression Fitting Adapter
-
SeriesSeries 31
-
MaterialStainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW16
-
Tube OD0.25 in.
-
Length1.4 in. (36 mm)
-
Inner Diameter0.19 in. (5 mm)
-
Dimension "A"0.19 in.
-
Dimension "B"1.4 in.
-
Dimension "C"0.62 in.
