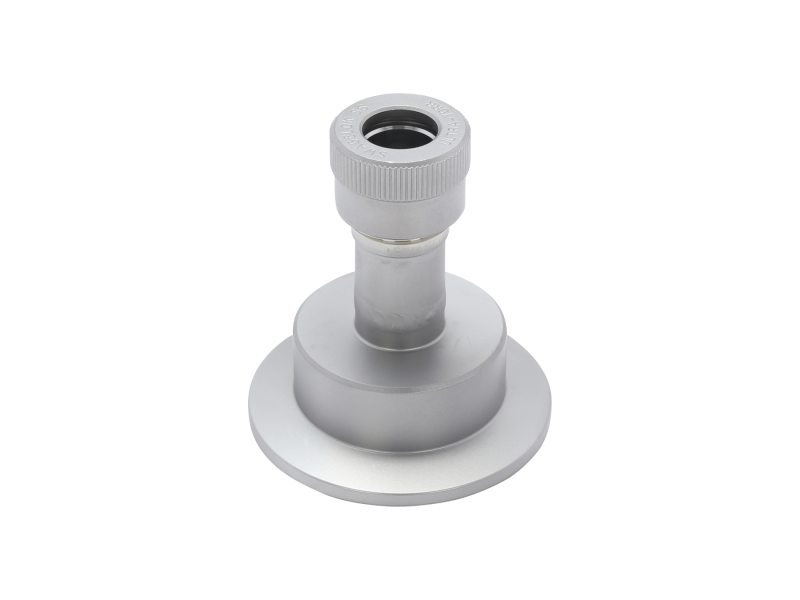

ISO-KF Flange Adapter, NW40 to 0.5 inch O.D. Pipe Compression Fitting
Model: 100316905
ISO-KF Flange Adapter, NW40 to 0.5 inch O.D. Pipe Compression Fitting
ISO-KF Flange Adapter, NW40 to 0.5 inch O.D. Pipe Compression Fitting
Model: 100316905
Overview
Overview
The 100316905 ISO-KF Flange Adapter is used to convert a NW40 size ISO-KF vacuum flange to a 1/2 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Technical Specs
-
Component TypePipe Compression Fitting Adapter
-
SeriesSeries 31
-
MaterialStainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW40
-
Tube OD0.5 in.
-
Length2.6 in. (66 mm)
-
Inner Diameter0.41 in. (10 mm)
-
Dimension "A"0.41 in.
-
Dimension "B"2.6 in.
-
Dimension "C"0.80 in.
