ISO-KF Vacuum Flange to Rubber Hose Adapters
Overview
- Adapt and ISO-KF flange to rubber hose
- Compatible with standard vacuum hose bores
- Aluminum construction
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

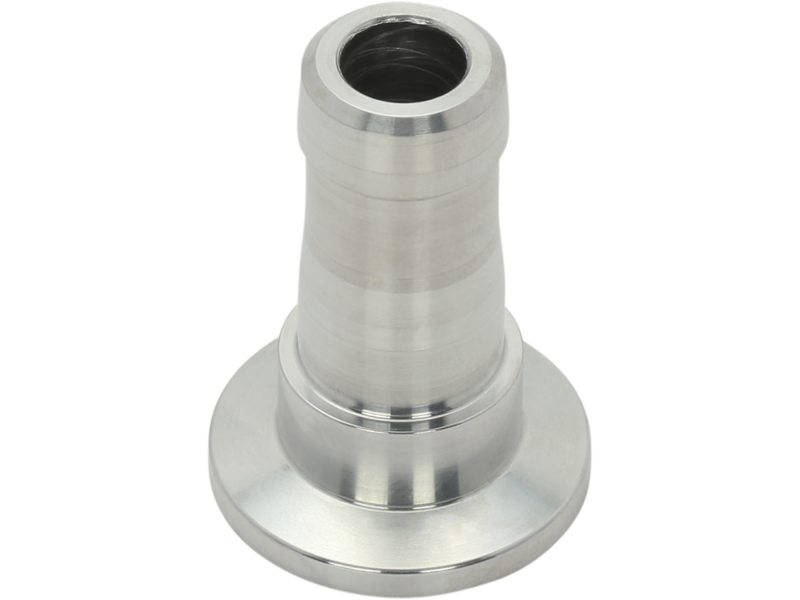

100311801 ISO-KF Flange Adapter, NW16 ISO-KF to 0.625 or 0.75 inch Rubber Hose |
1 Week
|
$16.10 |
|
|||
|

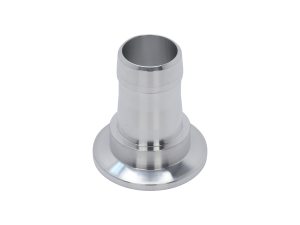

100311803 ISO-KF Flange Adapter, NW25 ISO-KF to 0.75 or 0.875 inch Rubber Hose |
1 Week
|
$18.86 |
|
|||
|

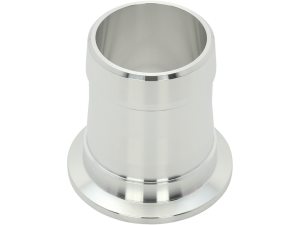

100311805 ISO-KF Flange Adapter, NW40 ISO-KF to 1.5 or 1.625 inch Rubber Hose |
1 Week
|
$26.00 |
|
|||
|

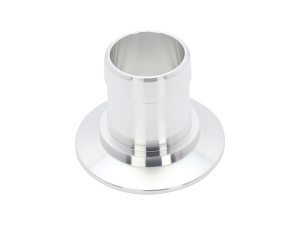

100311806 ISO-KF Flange Adapter, NW50 ISO-KF to 1.5 or 1.625 inch Rubber Hose |
1 Week
|
$30.00 |
|
|||
|
100311811 ISO-KF Flange Adapter, NW16 ISO-KF to 0.5 or 0.625 inch Rubber Hose |
4 Weeks
|
$16.10 |
|
Specifications
| Models |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Component Type | Hose Adapter | Hose Adapter | Hose Adapter | Hose Adapter | Hose Adapter | |
| Flange Type | ISO-KF | ISO-KF | ISO-KF | ISO-KF | ISO-KF | |
| Flange Size | NW16 | NW25 | NW40 | NW50 | NW16 | |
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
| Hose Size | 0.625 or 0.75 in. | 0.75 or 0.875 in. | 1.5 or 1.625 in. | 1.5 or 1.625 in. | 0.5 or 0.625 in. | |
| Length | 1.65 in. (42 mm) | 1.65 in. (42 mm) | 1.73 in. (44 mm) | 2.17 in. (55 mm) | 2.17 in. (55 mm) | |
| Dimension "A" | 0.63 in. | 0.75 in. | 0.88 in. | 1.63 in. | 1.63 in. | |
| Dimension "B" | 1.65 in. | 1.65 in. | 1.73 in. | 2.17 in. | 2.17 in. |
Notes:

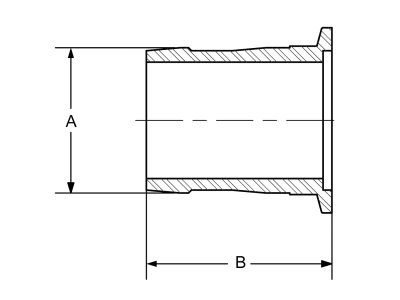

Please see rubber hose adapter schematic for dimension callouts.
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
