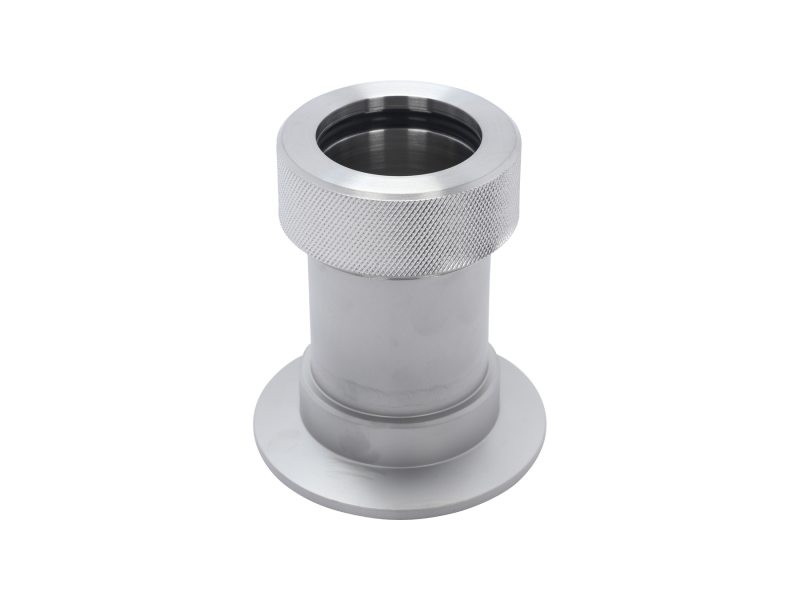

ISO-KF Flange Adapter, NW50 to 1.5 inch O.D. Pipe Compression Fitting
Model: 100316906
ISO-KF Flange Adapter, NW50 to 1.5 inch O.D. Pipe Compression Fitting
ISO-KF Flange Adapter, NW50 to 1.5 inch O.D. Pipe Compression Fitting
Model: 100316906
Overview
Overview
The 100316906 ISO-KF Flange Adapter is used to convert a NW50 size ISO-KF vacuum flange to a 1 1/82inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Technical Specs
-
Component TypePipe Compression Fitting Adapter
-
SeriesSeries 31
-
MaterialStainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW50
-
Tube OD1.5 in.
-
Length3.0 in. (76.2 mm)
-
Inner Diameter1.25 in. (32 mm)
-
Dimension "A"1.25 in.
-
Dimension "B"3.0 in.
-
Dimension "C"0.94 in.
