Temperature Converters
Model: FTC-MC5
Temperature Converters
Model: FTC-MC5

Overview
Overview

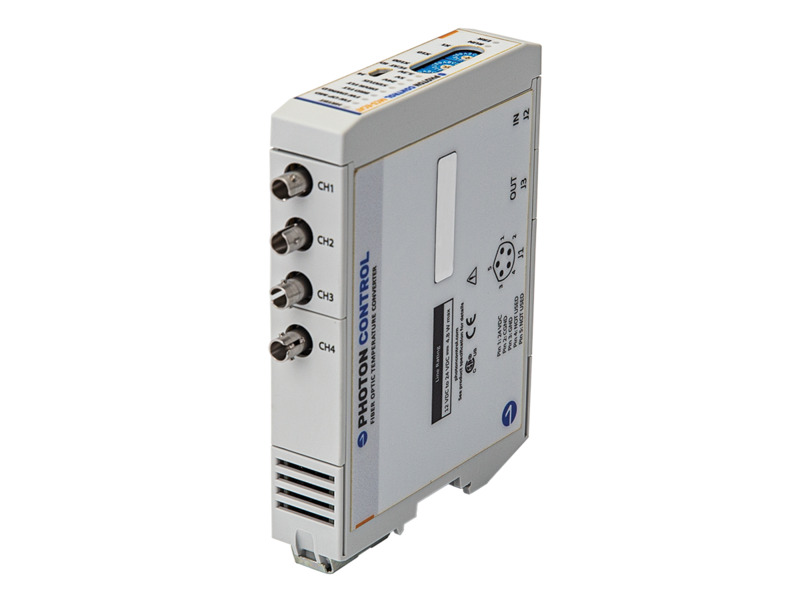

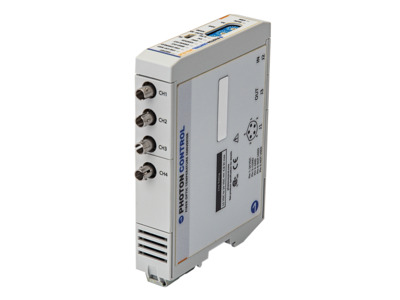

MKS fiber optic multichannel temperature converters are compatible with all fiber optic sensor probes and offer industry leading accuracy, repeatability, and reliability for temperature monitoring applications. The converter is configurable up to five measurement channels offering cost reduction and space savings per measurement point.
Technical Specs
- Number of Channels1 to 5
- Communication ProtocolModbus® RTU, Analog or EtherCAT®
- Analog Output4-20 mA (16-bit DAC)
- Measurement RangeProbe Dependent
- AccuracyProbe Dependent
- Stability±0.1ºC (2σ)
- Resolution0.01ºC
- Operating Temperature Range5-60ºC
- Input Power24 VDC
- Dimensions141 mm H x 25 mm W x 100 mm D
Technical Specs
- Number of Channels1 to 5
- Communication ProtocolModbus® RTU, Analog or EtherCAT®
- Analog Output4-20 mA (16-bit DAC)
- Measurement RangeProbe Dependent
- AccuracyProbe Dependent
- Stability±0.1ºC (2σ)
- Resolution0.01ºC
- Operating Temperature Range5-60ºC
- Input Power24 VDC
- Dimensions141 mm H x 25 mm W x 100 mm D
Resources & Downloads
Literature
Multichannel Temperature Converter (FTC-MC5)(664.4 kB, PDF)
