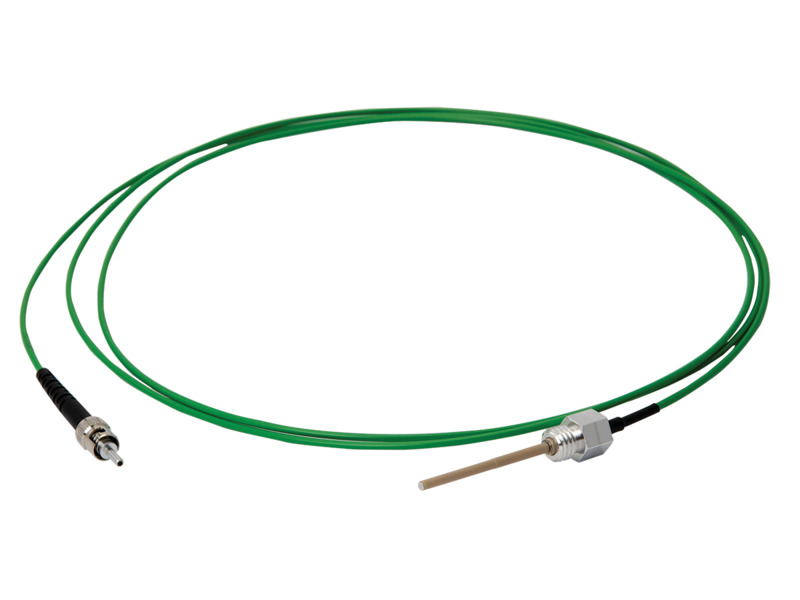

Fiber Optic Probe

Products
Specifications
Features
Resources
Contact Us

Overview

MKS fiber optic temperature sensor probes are designed to offer industry leading accuracy, repeatability, and reliability for a wide range of applications. The probe is immune to RF and enables customers to monitor temperature in extreme environments. They are easy to install, robust and can be customized for OEM applications. Customized design available upon request.

Immune to RF
Highly accurate across full temperature range
Excellent sensor-to-sensor precision
Outstanding long-term repeatability
Sensors do not require recalibration
Probes and converters are fully interchangeable

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		FTP-C150 Fiber Optic Probe Contact Us	FTP-C150 Fiber Optic Probe	UNIVERSAL	0.0	1.0	0.0		0.0	Contact Us

Show All

Specifications

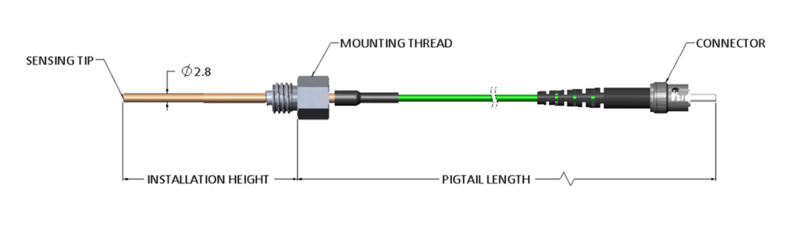

Models	FTP-C150
Measurement Range ¹	-40 to 150ºC
Accuracy	±0.5ºC (standard)
Tip Material	Aluminum
Shaft Material	PEEK
Mounting Hardware ²	Spring Loaded Thread M10x1.5 (standard)
Installation Height	50 mm (standard)
Pigtail Bend Radius	25 mm
Pigtail Length ³	2 m
Connector	ST

Notes:

Custom designs for wider temperature range (-100ºC to 450ºC) available upon request.
Additional mounting options available upon request
1 m and 3 m lengths available upon request
