Compare Description Drawings, CAD & Specs Flange Size Flange Size 2 Inner Diameter Length Availability Price
100315601
$80
6 Weeks
 100315601 NW16 1.33 in. CF 0.62 in. (16 mm) 2.08 in. (53 mm)
6 Weeks
 $80

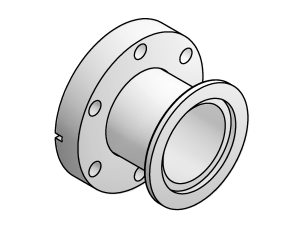

CF ConFlat Ultra High Vacuum Flange Adapter
100315603
$159
2 Weeks
 100315603 NW25 2.75 in. CF 0.87 in. (22 mm) 1.78 in. (45 mm)
2 Weeks
 $159
100315605
$170
4 Weeks

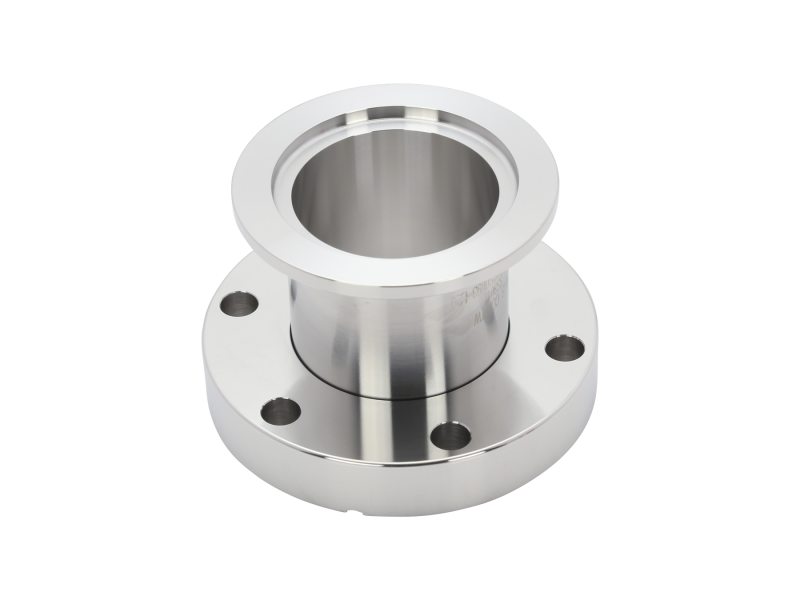

 100315605 NW40 2.75 in. CF 1.33 in. (34 mm) 1.78 in. (45 mm)
4 Weeks
 $170
100315606
$198
5 Weeks
 100315606 NW50 4.5 in. CF 1.83 in. (46 mm) 1.95 in. (50 mm)
5 Weeks
 $198
100315611
$82
2 Weeks

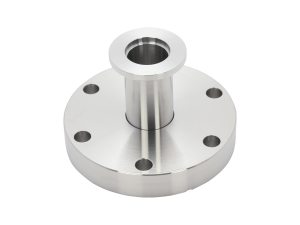

 100315611 NW16 2.75 in. CF 0.62 in. (16 mm) 1.78 in. (45 mm)
2 Weeks
 $82
100319812
$243
7 Weeks
 100319812 NW25 2.125 in. CF 1.37 in. (35 mm) 2.11 in. (54 mm)
7 Weeks
 $243
100319813
$161
4 Weeks
 100319813 NW50 2.75 in. CF 1.83 in. (46 mm) 2.11 in. (54 mm)
4 Weeks
 $161

Specifications

  • Component Type
    ISO-KF to CF Flange Adapter
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF and CF
