ISO-KF Flange Adapter, NW25 to 2.125 in. CF Flange 304 Stainless Steel
Model: 100319812
ISO-KF Flange Adapter, NW25 to 2.125 in. CF Flange 304 Stainless Steel
ISO-KF Flange Adapter, NW25 to 2.125 in. CF Flange 304 Stainless Steel
Model: 100319812
Overview
Overview
The 100315812 Flange Adapter is used to convert a size NW25 ISO-KF vacuum flange to a 2.125 inch CF flange and is made with 304 stainless steel. This Series 31 adapter is used to convert an ISO-KF flange for use with CF flange vacuum components.
Technical Specs
-
Component TypeISO-KF to CF Flange Adapter
-
SeriesSeries 31
-
Material304 Stainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW25
-
Flange Size 22.125 in. CF
-
Length2.11 in. (54 mm)
-
Inner Diameter1.37 in. (35 mm)
-

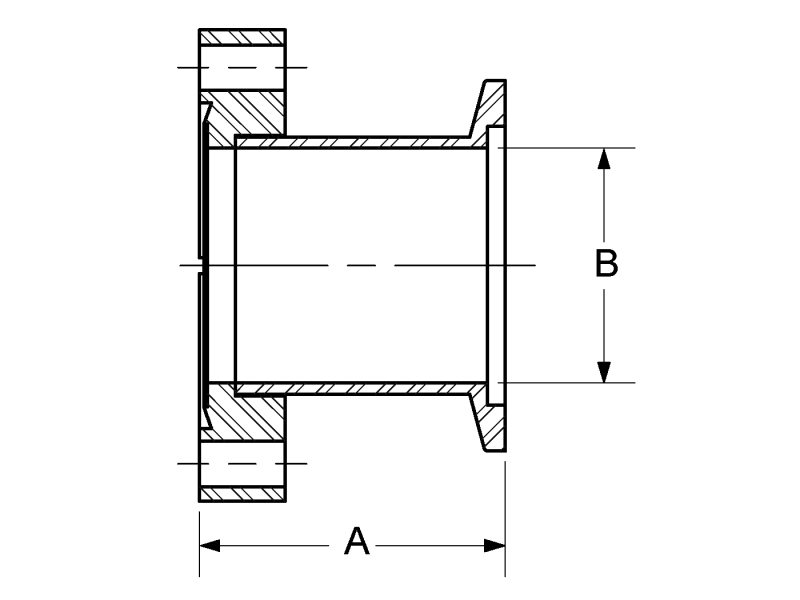

Dimension "A"2.11 in.
-
Dimension "B"1.37 in.
