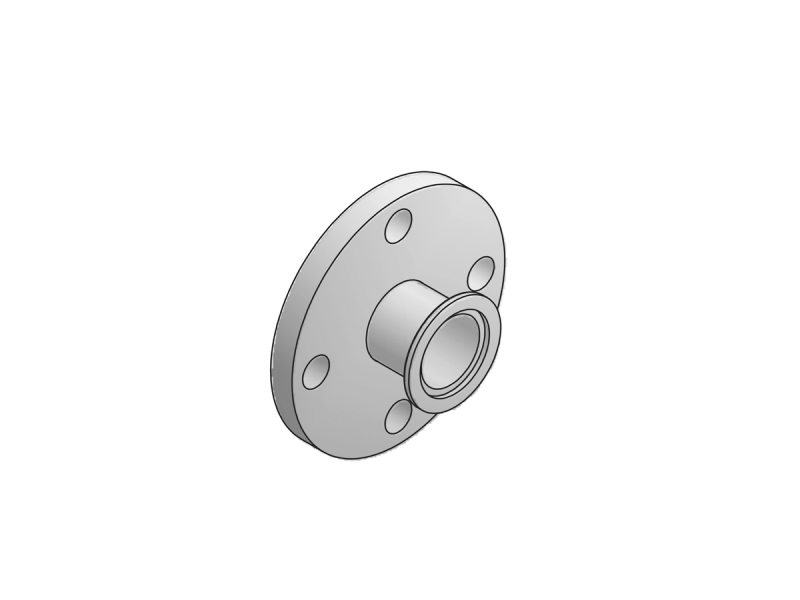

ISO-KF to ASA Adapters with O-Ring Grove

ISO-KF to ASA Adapters with O-Ring Grove

Products
Accessories
Resources
Contact Us

Overview

These ASA flange adapters feature an O-ring grove on the ASA flange and are used to adapt ISO-KF vacuum flanges to ASA style flanges.

Adapt to ASA-style flanges
O-ring grove
304 Stainless Steel construction

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	Flange Size 2	Outer Diameter	Groove ID	Inner Diameter	Availability	Featured Item	Price		Brand
		100316725 ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange with O-Ring Grove $368 Contact Us	100316725 ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	2.0 in. ASA	6.0 in. (152 mm)	3.42 in. (2-237)	1.33 in. (34 mm)	Contact Us		$368
		100316726 ISO-KF Flange Adapter, NW50 to 2.0 in. ASA Flange with O-Ring Grove $311 5 Weeks	100316726 ISO-KF Flange Adapter, NW50 to 2.0 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	2.0 in. ASA	6.0 in. (152 mm)	3.42 in. (2-237)	1.83 in. (46 mm)	5 Weeks		$311
		100316735 ISO-KF Flange Adapter, NW40 to 3.0 in. ASA Flange with O-Ring Grove $822 4 Weeks	100316735 ISO-KF Flange Adapter, NW40 to 3.0 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	3.0 in. ASA	7.5 in. (191 mm)	4.69 in. (2-247)	1.33 in. (34 mm)	4 Weeks		$822
		100316736 ISO-KF Flange Adapter, NW50 to 3.0 in. ASA Flange with O-Ring Grove $575 Contact Us	100316736 ISO-KF Flange Adapter, NW50 to 3.0 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	3.0 in. ASA	7.5 in. (191 mm)	2.66 in. (2-231)	1.83 in. (46 mm)	Contact Us		$575
		100316775 ISO-KF Flange Adapter, NW40 to 1.5 in. ASA Flange with O-Ring Grove $322 4 Weeks	100316775 ISO-KF Flange Adapter, NW40 to 1.5 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	1.5 in. ASA	5.0 in. (127 mm)	3.42 in. (2-237)	1.33 in. (34 mm)	4 Weeks		$322
		100316776 ISO-KF Flange Adapter, NW50 to 1.5 in. ASA Flange with O-Ring Grove $206 4 Weeks	100316776 ISO-KF Flange Adapter, NW50 to 1.5 in. ASA Flange with O-Ring Grove	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	1.5 in. ASA	5.0 in. (127 mm)	4.69 in. (2-247)	1.83 in. (46 mm)	4 Weeks		$206

Show All

Specifications

Component Type

ISO-KF to ASA Flange Adapter
Series

Series 31
Material

304 Stainless Steel

Flange Type

ISO-KF
Length

1.81 inch (46 mm)

Specifications

Component Type

ISO-KF to ASA Flange Adapter
Series

Series 31
Material

304 Stainless Steel

Flange Type

ISO-KF
Length

1.81 inch (46 mm)

Accessories

ASA Flange O-Rings

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		100001380 Viton O-Ring, 1.5 inch ASA Flange, O-Ring Size 2-231	UNIVERSAL		Contact Us	$5.99
		100006098 Viton O-Ring, 2.0 inch ASA Flange, O-Ring Size 2-237	UNIVERSAL		Contact Us	$22.93
		100006099 Viton O-Ring, 3.0 inch ASA Flange, O-Ring Size 2-247	UNIVERSAL		7 Weeks	$27

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

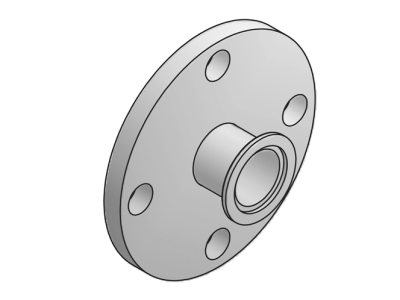

ISO-KF Flange to ASA Flange Adapters

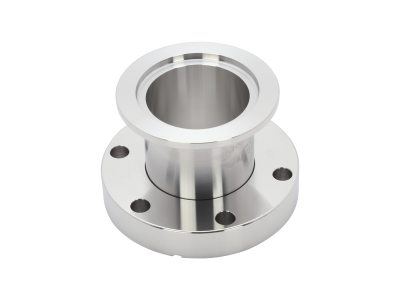

ISO-KF Flange to CF Flange Adapters
