Alter® TM Closed Frame Microwave Magnetron Heads

Alter® TM Closed Frame Microwave Magnetron Heads

Products
Resources
Contact Us

alter tm closed frame microwave magnetron head

alter tm closed frame microwave magnetron head

Overview

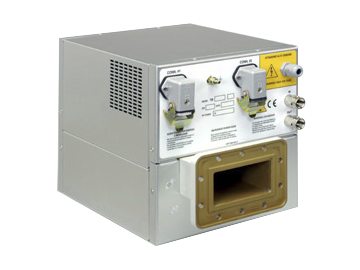

Alter® TM Series Microwave Heads are available with either air cooled magnetron (TMA) or water cooled magnetron (TM0), and power ranging from 1.0 kW up to 10 kW. These heads are designed for applications where the head will not have any further enclosure. Alter® TM Series Microwave Heads are easy to install - with connectors for line power and signals, and have been designed for the highest energy transfer to load, and when installed and used according the magnetron's manufacturers specification can be expected to reach the longest tube life. If power levels exceed 2 kW, it is recommended that an isolator be installed.

Simple, rugged and cost-effective design
Standard waveguide size WR 340, able to handle up to 10 kW power @ 2,450 MHz Microwave Power Systems
Complete cable sets, with length on request, for easy "plug & play" with Alter® power supplies

alter tm closed frame microwave magnetron head

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Type	Cooling	Power Output	Frequency	Availability	Featured Item	Price		Brand
		ALTER-TM Microwave Magnetron Head, Closed Frame , 2450 MHz Contact Us	ALTER-TM Microwave Magnetron Head, Closed Frame , 2450 MHz	UNIVERSAL	0.0	1.0	0.0		0.0	Magnetron Head	Water or Air (depending on model)	1.2, 2, 3, 6, or 10 kW (depending on model)	2.45 or 5.80 GHz (depending on model)	Contact Us

Show All

Specifications

Type

TM Series Closed Frame Magnetron Head
Cooling

TMA: Air
TM0, TM5810: Water
Power Output

TMA: 1, 1.2, 2, 3 kW
TM0: 1.2, 2, 3, 6, 10 kW

Flange Type

TMA, TM0: R26
TM5810: R58
Frequency

TMA, TM0: 2450 MHz
TM5810: 5800 MHz

Specifications

Type

TM Series Closed Frame Magnetron Head
Cooling

TMA: Air
TM0, TM5810: Water
Power Output

TMA: 1, 1.2, 2, 3 kW
TM0: 1.2, 2, 3, 6, 10 kW

Flange Type

TMA, TM0: R26
TM5810: R58
Frequency

TMA, TM0: 2450 MHz
TM5810: 5800 MHz

Resources

Manuals

C150 & TM150 Manual (2.6 MB, PDF)
TM060/TM061 Magnetron Head Manual (771.9 kB, PDF)
TM 150 Magnetron Head Manual (449.9 kB, PDF)
TM 066 & TM 100 Magnetron Head Manual (471.4 kB, PDF)
TMA/TM0 Magnetron Head Manual (867.1 kB, PDF)

Drawings And Cad

TMO Microwave Head Dimensional Drawing (44.3 kB, PDF)
TMA Microwave Head Dimensional Drawing (44.7 kB, PDF)

Resources

Manuals

C150 & TM150 Manual (2.6 MB, PDF)
TM060/TM061 Magnetron Head Manual (771.9 kB, PDF)
TM 150 Magnetron Head Manual (449.9 kB, PDF)
TM 066 & TM 100 Magnetron Head Manual (471.4 kB, PDF)
TMA/TM0 Magnetron Head Manual (867.1 kB, PDF)

Drawings And Cad

TMO Microwave Head Dimensional Drawing (44.3 kB, PDF)
TMA Microwave Head Dimensional Drawing (44.7 kB, PDF)

alter cm 340/440 air-cooled microwave power supply

Alter® CM 340/CM 440 Compact, Air-cooled Microwave Power Supplies for 1.0 & 1.2 kW, 2.45 GHz Magnetrons

alter sm 1690 air-cooled switch mode microwave power supply

Alter® SM 1690 Air-cooled Switch Mode Microwave Power Supply for 10kW, 2.45 GHz Magnetrons

alter cr 840 air-cooled microwave power supply

Alter® CR 840 Compact, Air-cooled, Resonant Microwave Power Supply for 2kW, 2.45 GHz Magnetrons

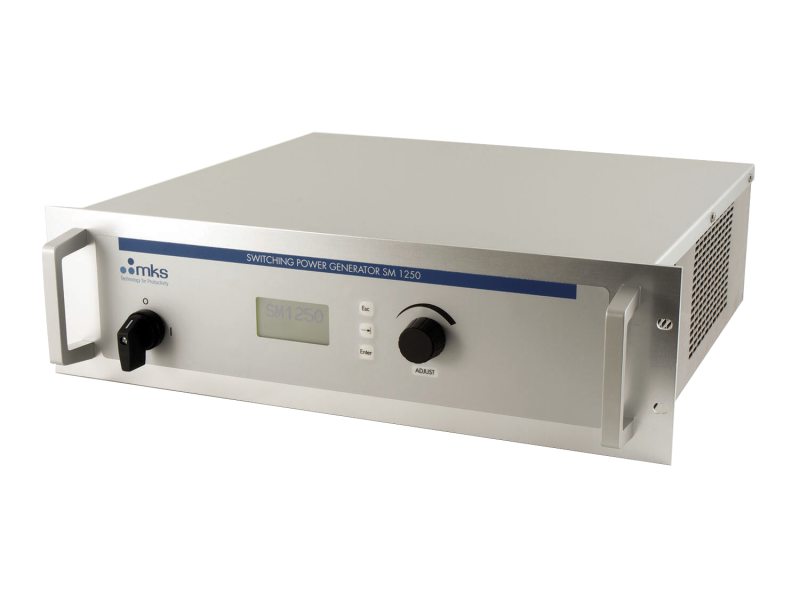

alter sm 1250 air-cooled switch mode microwave power supply

Alter® SM 1250 Air-cooled Switch Mode Microwave Power Supply for 3kW, 2.45 GHz Magnetrons

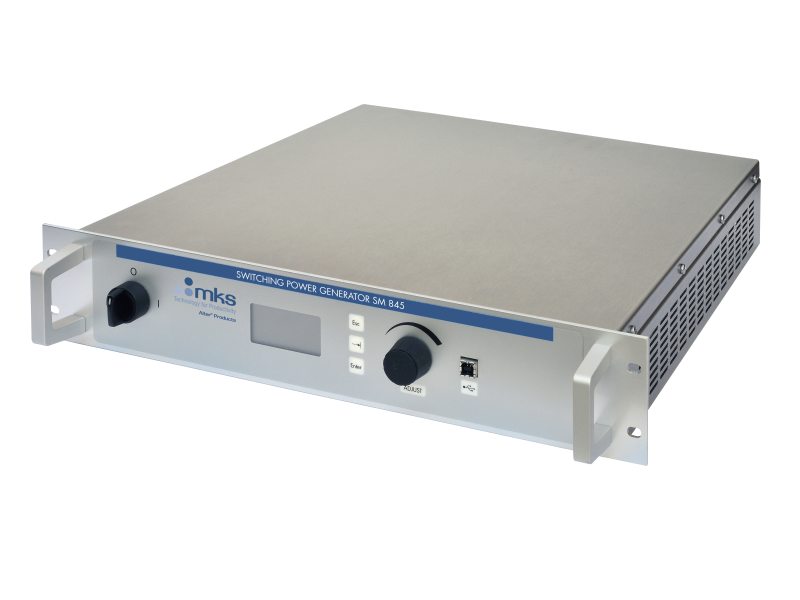

alter sm 845 air-cooled switch mode microwave power supply
