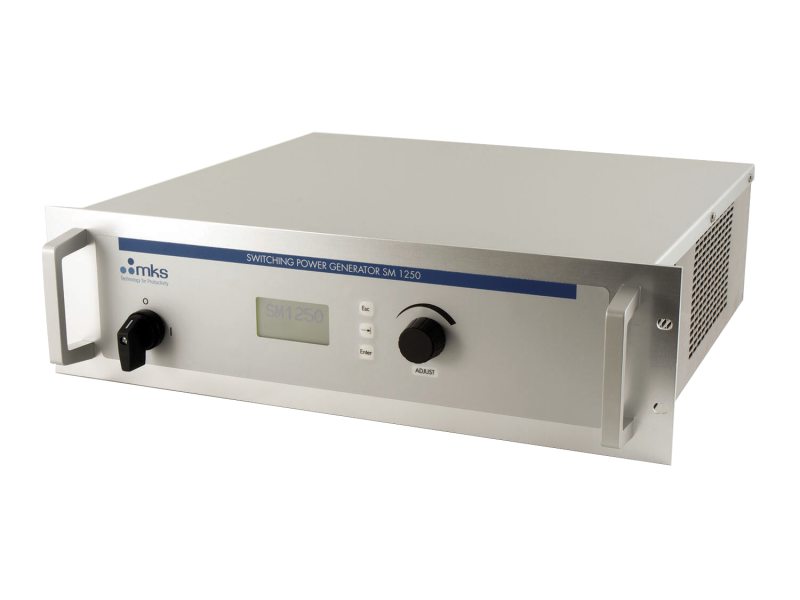

Alter® SM 1250 Air-cooled Switch Mode Microwave Power Supply for 3kW, 2.45 GHz Magnetrons
Alter® SM 1250 Air-cooled Switch Mode Microwave Power Supply for 3kW, 2.45 GHz Magnetrons
The SM 1250 magnetron power supply is a compact, air-cooled, switch-mode power supply designed to drive most nominal 3 kW @ 2.45 GHz magnetron models. For power control versatility, depending on the model, the output power of the SM 1250 can be variably adjusted from 10 to 100% using an external 1 to 10 VDC analog signal, or by remote control through a fieldbus interface or by front panel commands.
- High efficiency power supply design requires only air cooling - simplifies installation & reduces cost
- Low output ripple - suitable for most applications
- Advanced filament control for low maintenance and long magnetron life
- Efficient power stage design for low harmonics and inrush current
- "Plug & Play" design for fast & easy installation See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SM-1250Microwave Power Supply, Switch Mode, 3 kW, 2.45 GHz Magnetron |
Specifications
- TypeSM 1250 Switch-mode Microwave Power Supply
- Power Output4500 W max
- Input Voltage3 x 208VAC or 3 x 400VAC
- Line Frequency50/60 Hz
- Efficiency92%
- Output Current1000 mA max
- Alarm ManagementIn the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.
- DimensionsWidth, Rack 447.4 mm (17.61 inches)
Width, Front Panel 483 mm (19.02 inches)
Height, Total 130.5 mm (3U, 5.14 inches)
Length, Total 420 mm (16.54 inches) - Weight21kg (46 lbs)
- CoolingForced air, approx 120 m3/h
- Ambient Operating Temperature40°C (104° F) max
- ComplianceCE
- Preferred Microwave Magnetron HeadTM031 (Closed head, waveguide size WR340), or TI031 Integral Head with Iso launcher, waveguide size WR340 (others if electrically compatible)
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz | |||||
 | DC1340Microwave Directional Coupler, Single Channel, 2450 MHz | |||||
 | RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz | |||||
| DC2340Microwave Directional Coupler, Dual Channel, 2450 MHz | |||||
| RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz |
Resources
Drawings & CADs
SM 1250 Magnetron Power Supply Dimensional Drawing(128.8 kB, PDF)
Manuals
SM 1250 D & T Microwave Power Supply Manual(1.2 MB, PDF) SM 1250 DX & TX Microwave Power Supply Manual(1.1 MB, PDF)
