Alter® CM 340/CM 440 Compact, Air-cooled Microwave Power Supplies for 1.0 & 1.2 kW, 2.45 GHz Magnetrons

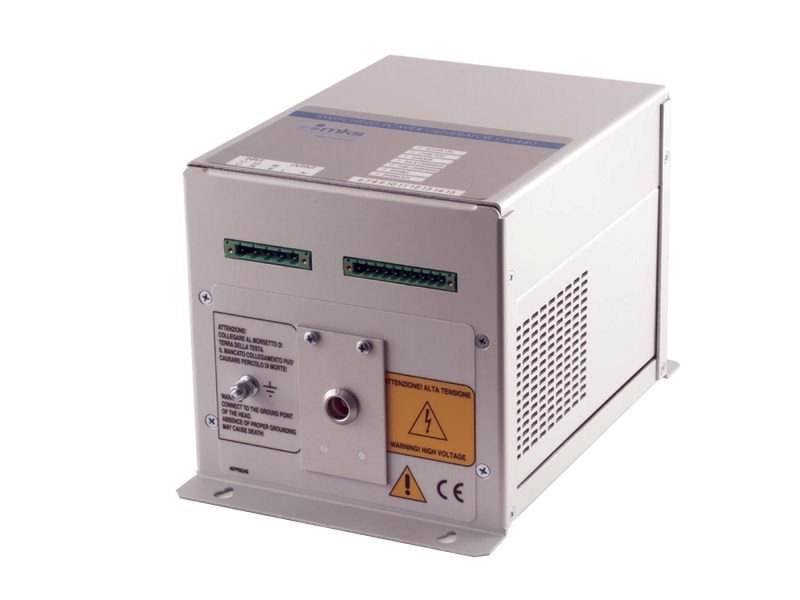

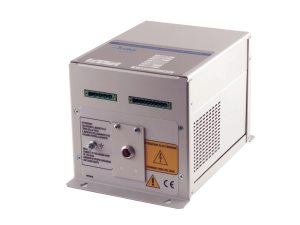

CM 340 and CM 440 magnetron power supplies are compact, air-cooled power supplies designed to drive magnetrons having a maximum power of 1.0 and 1.2 kW. The CM 340 is able to power and control most magnetron models within the nominal range of 900 W to 1 kW at 2.45 GHz while the CM 440 power supply provides the same performance for magnetrons with a nominal maximum power of 1.2 kW at 2.45 GHz.

Compact & lightweight form factor - ideal for installations where saving space is critical
High efficiency power supply design requires only air cooling simplifying installation and reducing cost
Medium output ripple is suitable for industrial heating applications
Easy assembly inside an electrical enclosure, with access to the terminal block on the bottom of the unit and output on the top

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Power Output	Power Requirements	Line Frequency	Efficiency	Avail.	Price
		CM-340Microwave Power Supply, 1.0 kW, 2.45 GHz Magnetron, Alter CM-340	UNIVERSAL		1450 W	190 - 265 VAC	50/60 Hz	90%
		CM-440Microwave Power Supply, 1.2 kW, 2.45 GHz Magnetron, Alter CM-440	UNIVERSAL		1700 W	190 - 265 VAC	50/60 Hz	90%

Specifications

Type
CM 340/CM 440 Microwave Power Supplies
Power Output
CM 340: 1450 W
CM 440: 1700 W
Input Voltage
230 VAC (nominal)
Range: 190 to 265 VAC
Line Frequency
50/60 Hz
Efficiency
90%
Output Current
CM 340: 350 mA
CM 440: 420 mA
Alarm Management
In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions
Width: 180 mm (7.1 inches)
Height: 178 mm (7.1 inches) (total)
Length: 280 mm (11 inches) (total)
Weight
5.6 kg (12.4 lbs.)
Cooling
Forced air, 80 m3/h
Ambient Operating Temperature
40° C (104° F) maximum
Compliance
CE
Preferred Microwave Magnetron Head
CM 340: TMx09 (Closed head, waveguide size WR340) and other manufacturers electrically compatible heads.
CM 440: TMx12 (Closed head, waveguide size WR340) TI012 (Integral Head with ISO launcher, waveguide size WR340) and other manufacturers electrically compatible heads.

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

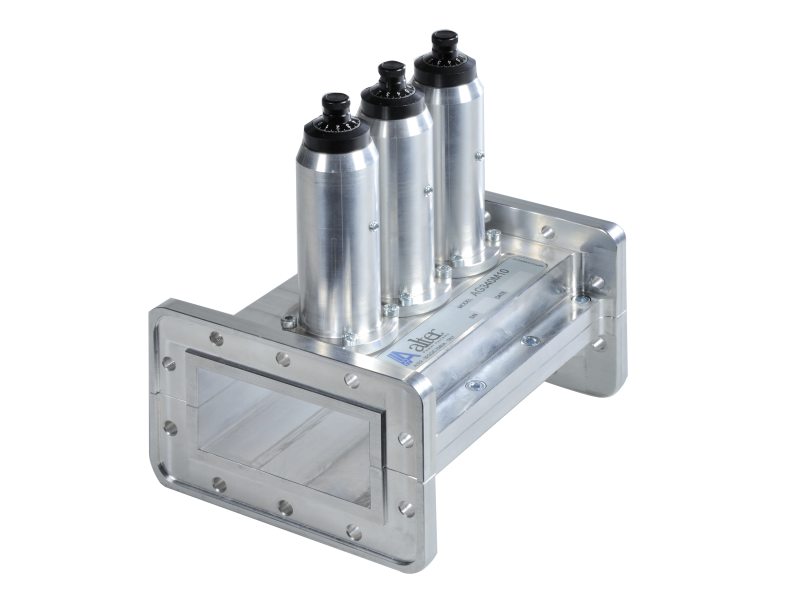

		AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz	UNIVERSAL

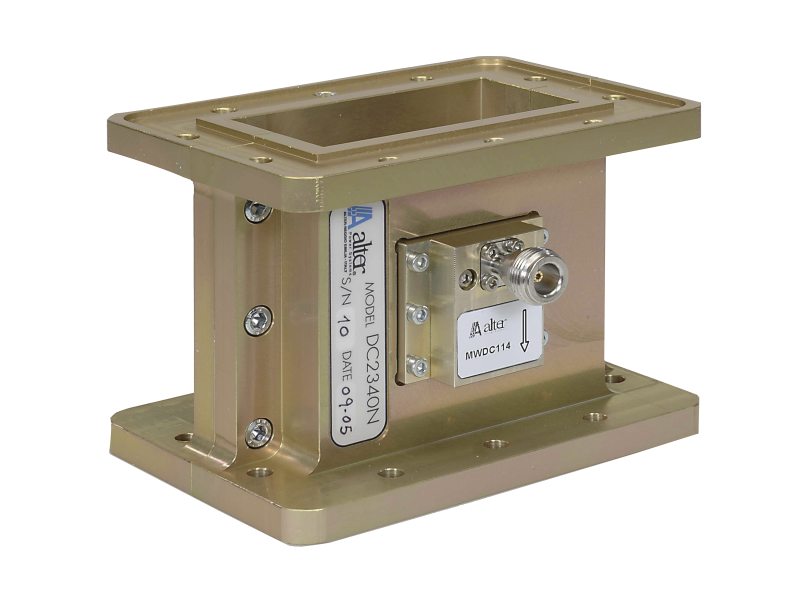

		DC1340Microwave Directional Coupler, Single Channel, 2450 MHz	UNIVERSAL

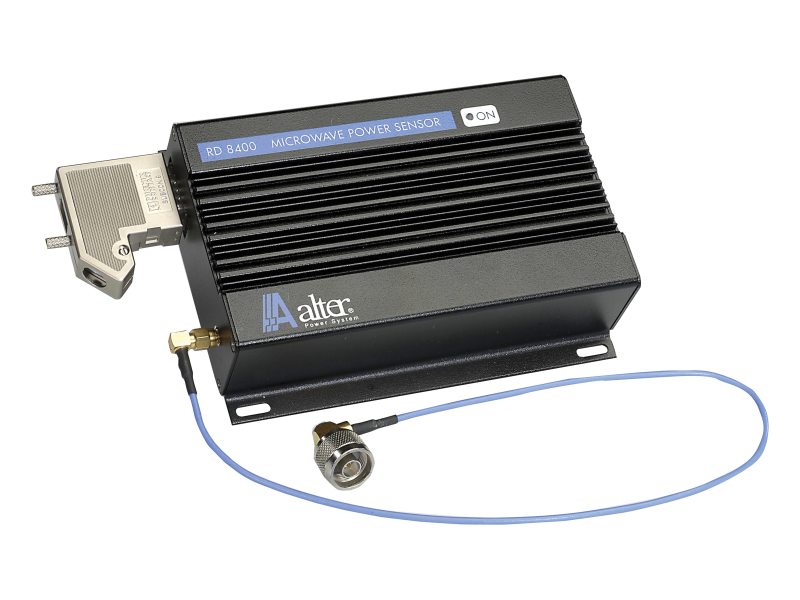

		RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL
		DC2340Microwave Directional Coupler, Dual Channel, 2450 MHz	UNIVERSAL
		RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL

Resources

Alter® CM 340/CM 440 Compact, Air-cooled Microwave Power Supplies for 1.0 & 1.2 kW, 2.45 GHz Magnetrons

Alter® CM 340/CM 440 Compact, Air-cooled Microwave Power Supplies for 1.0 & 1.2 kW, 2.45 GHz Magnetrons

Specifications

Accessories

Resources

Drawings & CADs

Manuals

Literature

Related Products

Alter® TI Integral Microwave Magnetron Heads with Isolator

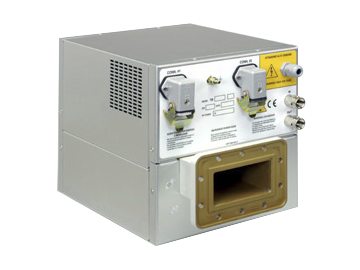

Alter® TM Closed Frame Microwave Magnetron Heads
