Alter® CR 840 Compact, Air-cooled, Resonant Microwave Power Supply for 2kW, 2.45 GHz Magnetrons
Alter® CR 840 Compact, Air-cooled, Resonant Microwave Power Supply for 2kW, 2.45 GHz Magnetrons

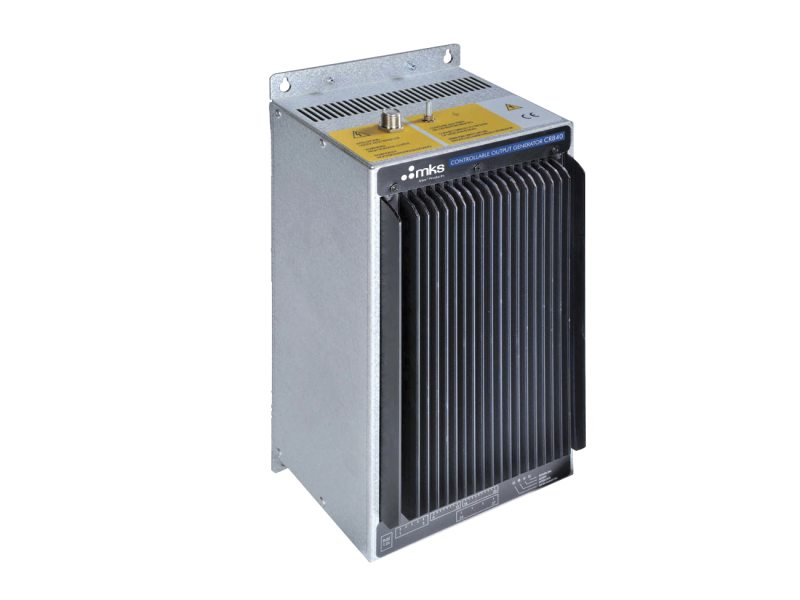

The CR 840 magnetron power supply is a compact, air-cooled, switch-mode power supply designed to drive most nominal 2 kW @ 2.45 GHz magnetron models. Depending on the model, power output can be variably adjusted from 10 to 100% using an external analog signal, a digital PWM signal, or with a simple digital ON-OFF signal.
- Compact and lightweight form factor makes it ideal for installations where the space saving is critical
- ON/OFF version is a highly competitive alternative to large & heavy, traditional L-C power supplies
- High efficiency power supply design requires only air cooling for simple & low cost installation
- Standard output ripple suitable for industrial heating applications
- Stable filament control for in long magnetron life
- Efficient power stage design results in very low harmonics and inrush current See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CR-840Microwave Power Supply, 2 kW, 2.45 GHz Magnetron, Alter CR-840 |
Specifications
- TypeCR 840 Switch-mode Microwave Power Supply
- Power Output3000 W max
- Input Voltage3 x 400V + N
- Line Frequency50/60 Hz
- Efficiency92%
- Output Current750 mA max
- Alarm ManagementIn the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.
- DimensionsWidth, 190 mm (7.48 inches)
Height, 168.5 mm (6.63 inches)
Length, 387 mm (15.24 inches) - Weight10kg (22 lbs)
- CoolingForced air, approx 80 m3/h
- Ambient Operating Temperature40° C (104° F) maximum
- ComplianceCE
- Preferred Microwave Magnetron HeadTMA20 (Closed head, air cooled, waveguide size WR340)
TM020 (Closed head, water cooled, waveguide size WR 340)
TI020 (Integral head, waveguide size WR340, includes isolator)
Other manufacturer's electrically compatible heads.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | DC1340Microwave Directional Coupler, Single Channel, 2450 MHz | |||||
 | AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz | |||||
| DC2340Microwave Directional Coupler, Dual Channel, 2450 MHz | |||||
 | RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz | |||||
| RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz |
Resources
Drawings & CADs
CR 840 Microwave Power Supply Dimensional Drawing(161.9 kB, PDF)
Literature
CR 840 Microwave Power Supply for 2kW, 2.45 GHz Magnetrons(277.5 kB, PDF)
Manuals
FR 840 & CR 840 Microwave Power Supply Manual(564.7 kB, PDF)
