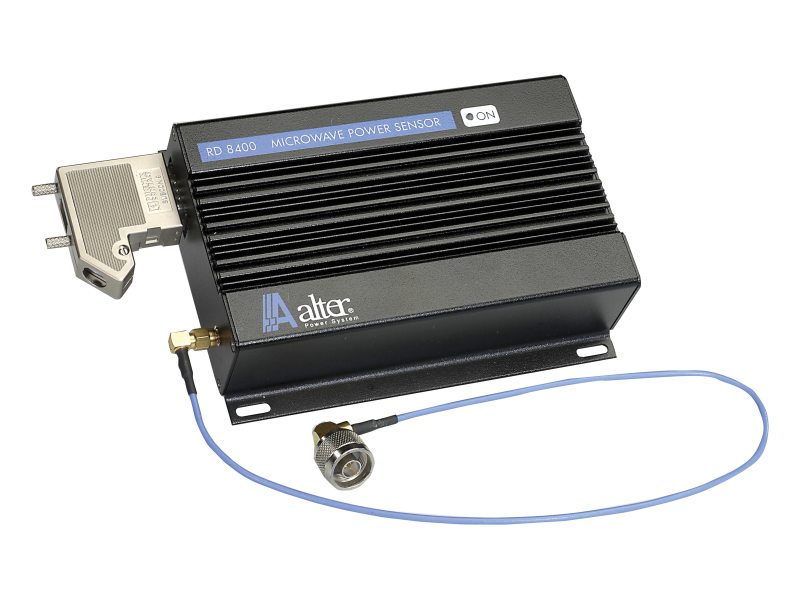

Microwave Linear Power Sensor, Single Channel, 2450 MHz
Model: RD8400A1
Microwave Linear Power Sensor, Single Channel, 2450 MHz
Microwave Linear Power Sensor, Single Channel, 2450 MHz
Model: RD8400A1
Overview
Overview
The Alter® RD 8400A1 Single-channel Linear Power Sensor enables measurement of reflected microwave power of microwave generators in continuous power or the peak value of the mean power.
Technical Specs
-
TypeMicrowave Linear Power Sensor
-
Operating Frequency2450 MHz, ±50MHz
-
Number of Channels1
-
For Use WithMicrowave Generators 2 - 10 kW, 2.450 GHz
-
Dimensions173 x 130 x 45 mm
-
Ambient Temperature5 - 40°C
-
Weight0.5 kg.
-
Coax Cable600 mm standard, other lengths available
-
ProtectionIP 20
-
Input Voltage12 - 24 VDC
-
Input Signal Range-30 to +10 dBm
-
Error at Different Values of Frequency±1% (max.)
-
Different Attenuation Value for Each Channelyes
-
Outputs1 or 2, not correlated
-
Output Signal0 - 10 VCC
