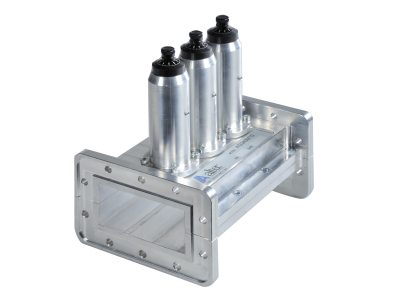

Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz
Model: AG340
Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz
Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz
Model: AG340
Overview
Overview
The AG340 Manual 3-Stub tuner is design for load impedance matching in high power microwave applications. The stubs come with precision multi turn dial mechanism for tuning adjustment providing a wide range of tuning capability for microwave system of up to 10kW of forward power at 2450 MHz.
Technical Specs
-
TypeMicrowave Tuner
-
Stub Insertion Length25 mm
-
Flange TypeR 26 (IEC 153)
-
MaterialAluminium (waveguide and stubs)
-
FinishAlodine
-
Waveguide SizeWR340
-
Operating Frequency2450 MHz, ±50 Mhz
-
For Use WithMicrowave Systems up to 10 kW of forward power at 2.45 GHz
