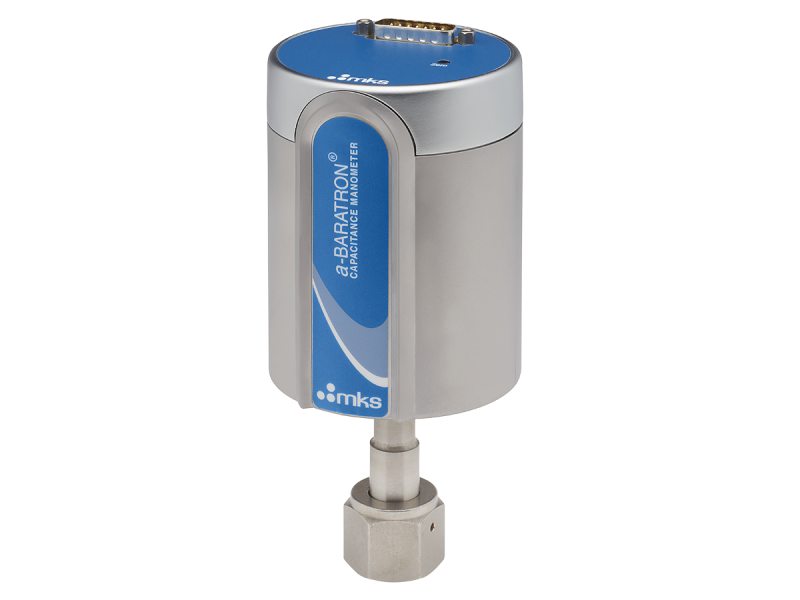

Absolute Pressure Transducer, 0.1 Torr, 80°C, NW16 ISO-KF, 0-10 VDC, DB15

Technical Specs

  • Type
    Pressure Transducer
  • Sensor Type
    Standard with Standard Tube Length
  • Measurement Type
    Absolute
  • Full Scale Range
    0.1 Torr
  • Sensor Temperature
    80°C
  • Fitting Type
    NW16 ISO-KF
  • Analog Output
    0 - 10 VDC
  • Electrical Connector
    15-pin D-sub male with screw locks
  • Accuracy
    0.40% of Reading
  • Resolution
    0.002% Full Scale
  • Time Constant
    40 ms
  • Zero Temperature Coefficient
    0.002% FS/°C for 1 - 1000 Torr, 0.01% FS/°C for <1 Torr
  • Span Temperature Coefficient
    0.02% of Reading/°C
  • Operating Temperature Range
    15 - 50°C
  • Overpressure Limit
    45 psia
  • Exposed Materials
    Inconel and Incoloy nickel alloys (some optional fittings are made from 300 series stainless steel)
  • Power Requirements
    ±15 VDC
  • Trip Points
    None
  • Calibration Orientation
    Standard
  • Compliance
    CE
