946 Vacuum System Controller
Model: 946
946 Vacuum System Controller
Model: 946
Overview
Overview

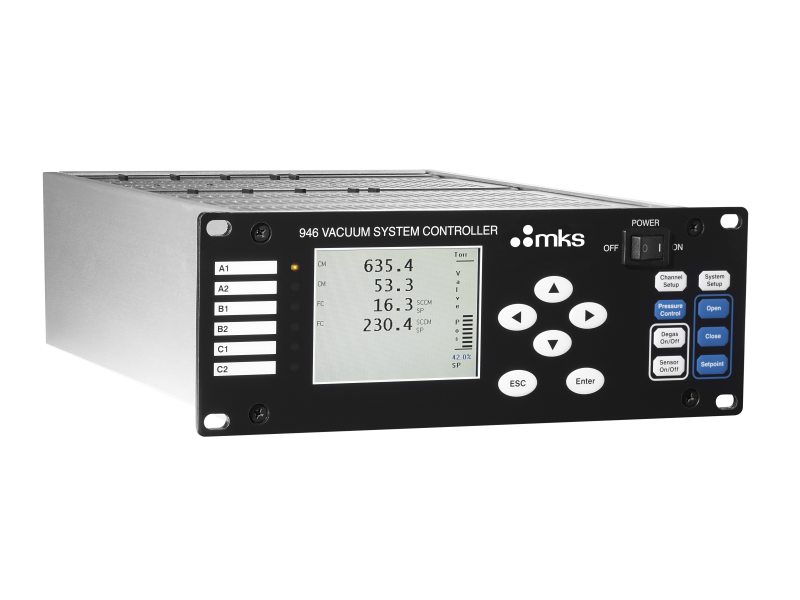

The 946 is a versatile half-rack vacuum gauge measurement and control system. It provides power and simultaneous readout for up to six different vacuum gauges and/or mass flow controllers, with options for controlling pressure. This highly flexible vacuum system controller supports a wide range of sensor technologies, including Baratron® capacitance manometers, cold cathode, hot cathode, standard Pirani and convection Pirani sensors for a measurement range from ultra-high vacuum to above atmospheric pressure. In addition, the Series 946 Controller will also monitor and control MKS I, G, or P-Series and legacy mass flow controllers as well as MKS pressure control valves.
Technical Specs
- TypeVacuum System Controller
- Measurement Range10,000 Torr to 10-11 Torr, 1.0 x 10-11 to 10,000 Torr, 1.0 x 10-11 to 2.7 x 10+4 mbar, 1.0 x 10-9 to 2.7 x 10+6 Pascal, 1.0 x 10-8 to 2.0 x 10+7 microns (Dependent upon sensor type)
- Display320x240 color QVGA TFT LCD with back lighting. Up to 6 pressure or flow displays. Display indicators for unit of measure, calibration functions, user calibration, set points, PID control status and valve position.
- Front Panel ControlsPower on-off switch, setup and operational commands can be accessed via the keypad
- UnitsUser Selectable
- Compatible withMKS Vacuum Sensors and Capacitance Manometers
- RegionUnited Kingdom
- Power Requirements100-240 VAC 50/60 Hz 150 W
- InterfaceRS232 and RS485
- Relays12
- Operating Temperature5-40°C (41-104°F)
- Storage Temperature10-55°C (50-131°F)
- MountingHalf 19-inch rack mount
- Insulation CoordinationOver voltage Category II, Pollution Degree 2
- Weight8 lbs. (3.6 kg)
- ComplianceCE
Technical Specs
- TypeVacuum System Controller
- Measurement Range10,000 Torr to 10-11 Torr, 1.0 x 10-11 to 10,000 Torr, 1.0 x 10-11 to 2.7 x 10+4 mbar, 1.0 x 10-9 to 2.7 x 10+6 Pascal, 1.0 x 10-8 to 2.0 x 10+7 microns (Dependent upon sensor type)
- Display320x240 color QVGA TFT LCD with back lighting. Up to 6 pressure or flow displays. Display indicators for unit of measure, calibration functions, user calibration, set points, PID control status and valve position.
- Front Panel ControlsPower on-off switch, setup and operational commands can be accessed via the keypad
- UnitsUser Selectable
- Compatible withMKS Vacuum Sensors and Capacitance Manometers
- RegionUnited Kingdom
- Power Requirements100-240 VAC 50/60 Hz 150 W
- InterfaceRS232 and RS485
- Relays12
- Operating Temperature5-40°C (41-104°F)
- Storage Temperature10-55°C (50-131°F)
- MountingHalf 19-inch rack mount
- Insulation CoordinationOver voltage Category II, Pollution Degree 2
- Weight8 lbs. (3.6 kg)
- ComplianceCE
Resources & Downloads
Drawings & CADs
946 Vacuum System Controller Dimensional Drawing(176.7 kB, PDF)
