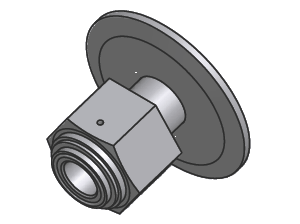

ISO-KF Vacuum Flange to VCR®-F Adapters

ISO-KF Vacuum Flange to VCR®-F Adapters

Products
Resources
Contact Us

Overview

VCR®-F adapters are used to connect ISO-KF flanges to VCR-F vacuum fittings.

Adapt to VCR®-F fittings
NW16 to NW50 flange sizes
304 Stainless Steel construction

Products

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Flange Size	VCR Fitting Size	Inner Diameter	Availability	Featured Item	Price		Brand
		100319211 ISO-KF Flange Adapter, NW16 Size Flange to 0.25 inch Female VCR Fitting $86.42 4 Weeks	100319211 ISO-KF Flange Adapter, NW16 Size Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	4 VCR Female	0.19 in. (5 mm)	4 Weeks		$86.42

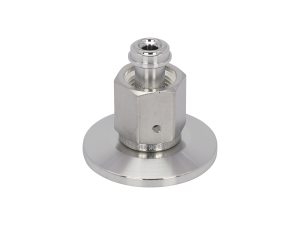

		100319213 ISO-KF Flange Adapter, NW25 Size Flange to 0.25 inch Female VCR Fitting $87.41 4 Weeks	100319213 ISO-KF Flange Adapter, NW25 Size Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	4 VCR Female	0.19 in. (5 mm)	4 Weeks		$87.41

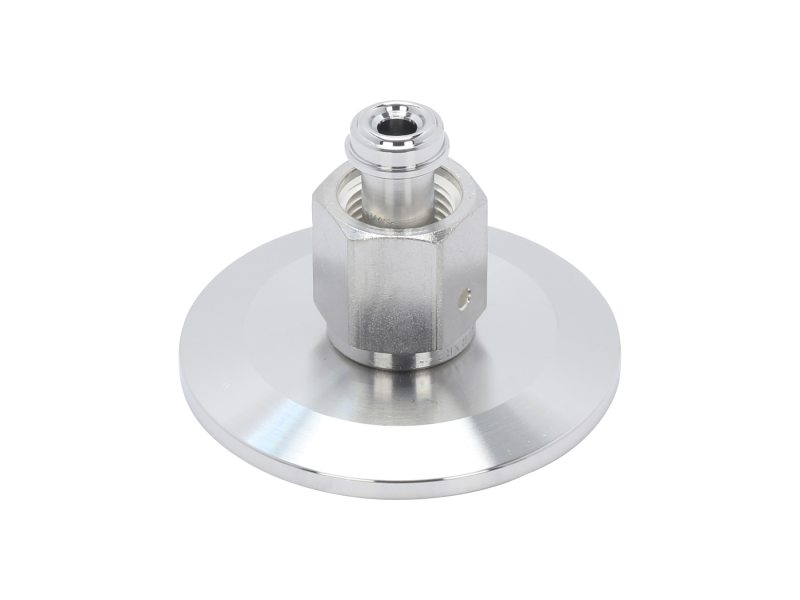

		100319215 ISO-KF Flange Adapter, NW40 Size Flange to 0.25 inch Female VCR Fitting $80 3 Weeks	100319215 ISO-KF Flange Adapter, NW40 Size Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	4 VCR Female	0.19 in. (5 mm)	3 Weeks		$80

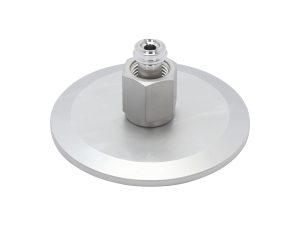

		100319216 ISO-KF Flange Adapter, NW50 Size Flange to 0.25 inch Female VCR Fitting $94.83 5 Weeks	100319216 ISO-KF Flange Adapter, NW50 Size Flange to 0.25 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	4 VCR Female	0.19 in. (5 mm)	5 Weeks		$94.83

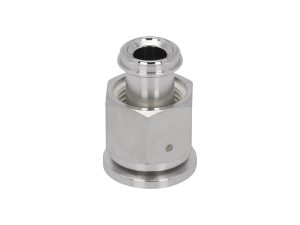

		100319221 ISO-KF Flange Adapter, NW16 Size Flange to 0.5 inch Female VCR Fitting $96 2 Weeks	100319221 ISO-KF Flange Adapter, NW16 Size Flange to 0.5 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW16	8 VCR Female	0.41 in. (10 mm)	2 Weeks		$96

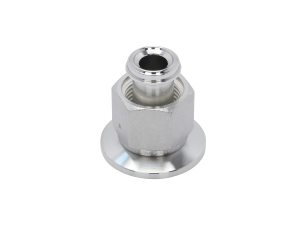

		100319223 ISO-KF Flange Adapter, NW25 Size Flange to 0.5 inch Female VCR Fitting $96 4 Weeks	100319223 ISO-KF Flange Adapter, NW25 Size Flange to 0.5 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	8 VCR Female	0.41 in. (10 mm)	4 Weeks		$96

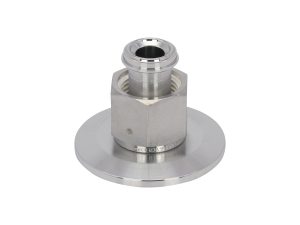

		100319225 ISO-KF Flange Adapter, NW40 Size Flange to 0.5 inch Female VCR Fitting $102 5 Weeks	100319225 ISO-KF Flange Adapter, NW40 Size Flange to 0.5 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	8 VCR Female	0.41 in. (10 mm)	5 Weeks		$102
		100319226 ISO-KF Flange Adapter, NW50 Size Flange to 0.5 inch Female VCR Fitting $145.92 5 Weeks	100319226 ISO-KF Flange Adapter, NW50 Size Flange to 0.5 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	8 VCR Female	0.41 in. (10 mm)	5 Weeks		$145.92
		100319233 ISO-KF Flange Adapter, NW25 Size Flange to 0.75 inch Female VCR Fitting $219.58 4 Weeks	100319233 ISO-KF Flange Adapter, NW25 Size Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW25	12 VCR Female	0.62 in. (16 mm)	4 Weeks		$219.58
		100319235 ISO-KF Flange Adapter, NW40 Size Flange to 0.75 inch Female VCR Fitting $245.89 5 Weeks	100319235 ISO-KF Flange Adapter, NW40 Size Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW40	12 VCR Female	0.62 in. (16 mm)	5 Weeks		$245.89
		100319236 ISO-KF Flange Adapter, NW50 Size Flange to 0.75 inch Female VCR Fitting $302.49 Contact Us	100319236 ISO-KF Flange Adapter, NW50 Size Flange to 0.75 inch Female VCR Fitting	UNIVERSAL	0.0	1.0	0.0		0.0	NW50	12 VCR Female	0.62 in. (16 mm)	Contact Us		$302.49

Show All

Notes:

Please see flange adapter schematic for dimension callouts.

Specifications

Component Type

Female VCR Fitting Adapter
Series

Series 31

Material

Stainless Steel
Flange Type

ISO-KF

Specifications

Component Type

Female VCR Fitting Adapter
Series

Series 31

Material

Stainless Steel
Flange Type

ISO-KF

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)

ISO-KF Flange to VCR-M Adapters

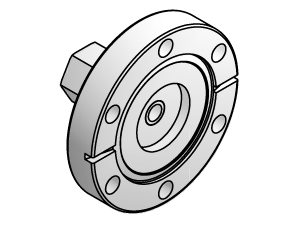

CF UHV Flange to Female VCR Adapters
