Aluminum ISO-KF to NPT-F Pipe Adapters

Aluminum ISO-KF to NPT-F Pipe Adapters

Aluminum ISO-KF to NPT-F Pipe Adapters

Aluminum NPT-F pipe adapters are used to convert NW10 to NW50 size ISO-KF vacuum flanges to a female thread NPT pipe connection.

Adapt ISO-KF flanges to NPT-F pipe
NW10 to NW50 flange sizes
Aluminum construction

See All Features

Show Filters:

Showing 10 of 10 total products

	Compare	Description	Compatibility	Drawings, CAD & Specs	Flange Size	NPT Fitting Size	Outer Diameter	Length	Avail.	Price
		100312000ISO-KF Flange Adapter, NW10 Flange to 0.125 in. Female NPT, Aluminum	UNIVERSAL		NW10	0.125 in. Female	0.62 in. (16 mm)	0.75 in. (19.1 mm)	1 Week	$19.82
		100312001ISO-KF Flange Adapter, NW16 Flange to 0.125 in. Female NPT, Aluminum	UNIVERSAL		NW16	0.125 in. Female	0.62 in. (16 mm)	0.75 in. (19.1 mm)	1 Week	$19.82
		100312003ISO-KF Flange Adapter, NW25 Flange to 0.125 in. Female NPT, Aluminum	UNIVERSAL		NW25	0.125 in. Female	0.88 in. (22 mm)	0.75 in. (19.1 mm)	1 Week	$23.46

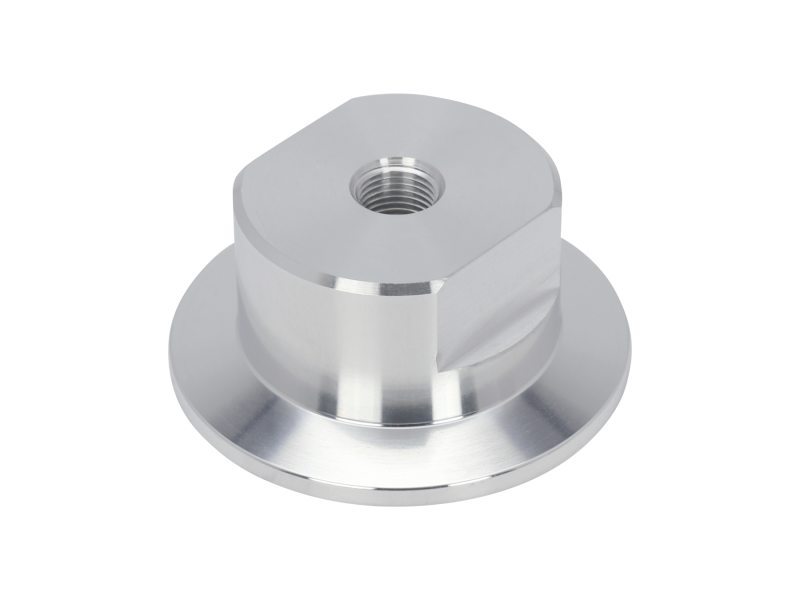

		100312005ISO-KF Flange Adapter, NW40 Flange to 0.125 in. Female NPT, Aluminum	UNIVERSAL		NW40	0.125 in. Female	1.25 in. (32 mm)	1.0 in. (25.4 mm)	4 Weeks	$23.10
		100312006ISO-KF Flange Adapter, NW50 Flange to 0.125 in. Female NPT, Aluminum	UNIVERSAL		NW50	0.125 in. Female	1.75 in. (44 mm)	1.0 in. (25.4 mm)	Contact Us
		100312200ISO-KF Flange Adapter, NW10 Flange to 0.25 in. Female NPT, Aluminum	UNIVERSAL		NW10	0.25 in. Female	0.62 in. (16 mm)	0.75 in. (19.1 mm)	4 Weeks	$236
		100312201ISO-KF Flange Adapter, NW16 Flange to 0.25 in. Female NPT, Aluminum	UNIVERSAL		NW16	0.25 in. Female	0.62 in. (16 mm)	0.75 in. (19.1 mm)	1 Week	$17.63
		100312203ISO-KF Flange Adapter, NW25 Flange to 0.25 in. Female NPT, Aluminum	UNIVERSAL		NW25	0.25 in. Female	0.88 in. (22 mm)	0.75 in. (19.1 mm)	1 Week	$19.34
		100312205ISO-KF Flange Adapter, NW40 Flange to 0.25 in. Female NPT, Aluminum	UNIVERSAL		NW40	0.25 in. Female	1.25 in. (32 mm)	1.0 in. (25.4 mm)	1 Week	$23.10
		100312206ISO-KF Flange Adapter, NW50 Flange to 0.25 in. Female NPT, Aluminum	UNIVERSAL		NW50	0.25 in. Female	1.75 in. (44 mm)	1.0 in. (25.4 mm)	3 Weeks	$56

Specifications

Component Type
Female NPT Pipe Adapter
Series
Series 31
Material
Aluminum

Flange Type
ISO-KF
Length
0.75 inch (19 mm)

Resources

Literature

Series 31 ISO-KF Vacuum Components & Fittings(1.1 MB, PDF)
