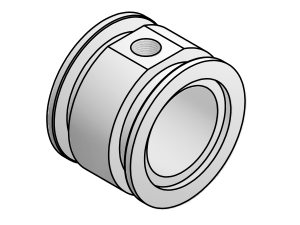

Aluminum ISO-KF to NPT-F Pipe Adapter Tees
Overview
- Branch NPT-F pipe from and ISO-KF flange
- NW16 to NW50 thru ports
- Aluminum construction
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
100319301 ISO-KF Flange Adapter Tee, NW16 Flange to 0.125 in. Female NPT, Aluminum |
4 Weeks
|
$86 |
|
|||
|

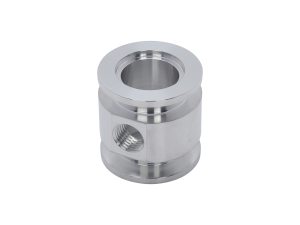

100319303 ISO-KF Flange Adapter Tee, NW25 Flange to 0.125 in. Female NPT, Aluminum |
1 Week
|
$39 |
|
|||
|

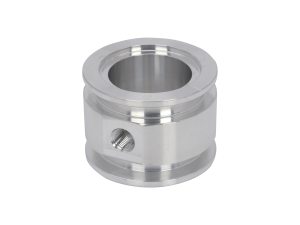

100319305 ISO-KF Flange Adapter Tee, NW40 Flange to 0.125 in. Female NPT, Aluminum |
4 Weeks
|
$48 |
|
|||
|
|
100319306 ISO-KF Flange Adapter Tee, NW50 Flange to 0.125 in. Female NPT, Aluminum | $815 |
|
||||
|

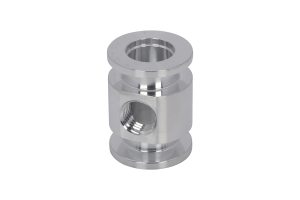

100319501 ISO-KF Flange Adapter Tee, NW16 Flange to 0.25 in. Female NPT, Aluminum |
4 Weeks
|
$221 |
|
|||
|
100319503 ISO-KF Flange Adapter Tee, NW25 Flange to 0.25 in. Female NPT, Aluminum |
4 Weeks
|
$225 |
|
|||
|
100319505 ISO-KF Flange Adapter Tee, NW40 Flange to 0.25 in. Female NPT, Aluminum |
4 Weeks
|
$74 |
|
|||
|
|
100319506 ISO-KF Flange Adapter Tee, NW50 Flange to 0.25 in. Female NPT, Aluminum |
4 Weeks
|
$112 |
|
Notes:
Please see flange adapter schematic for dimension callouts.
Specifications
-
Component TypeFemale NPT Pipe Adapter Tee
-
SeriesSeries 31
-
MaterialAluminum
-
Flange TypeISO-KF
-
Length1.57 in. (40 mm)
Resources
Literature
- Series 31 ISO-KF Vacuum Components & Fittings (1.1 MB, PDF)
