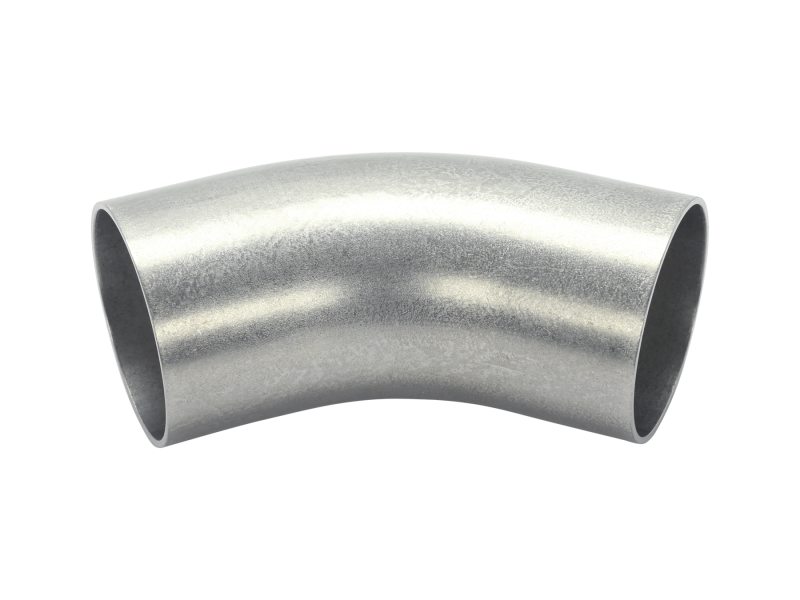

2 inch 45 degree butt weld elbow with tangents vacuum fitting

Overview

Butt weld 45 degree elbow fittings with tangents are offered in 0.75 to 6 inch diameter stainless steel vacuum tubing. These elbows have radius equal to 1.5x the tubing diameter and straight tangent section on each end. 45 degree elbows are used to make a 45 degree change of direction in vacuum tubing.

45° butt weld elbows with tangents
304 Stainless Steel construction
0.75 to 6 in. vacuum tubing diameters

See All Features

Products

Compare	Description	Compatibility	rankScore	Tube OD	Wall Thickness	Modulus	Tangent Length	Availability	Price
1002345WT075 45 Degree Elbow Fitting, Buttweld, Tangents, 0.75 in. O.D., 304 Stainless Steel $28 1 Week	1002345WT075 45 Degree Elbow Fitting, Buttweld, Tangents, 0.75 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	0.75 in.	0.065 in.	0.76 in.	0.30 in.	1 Week	$28
1002345WT100 45 Degree Elbow Fitting, Buttweld, Tangents, 1 in. O.D., 304 Stainless Steel $32 1 Week	1002345WT100 45 Degree Elbow Fitting, Buttweld, Tangents, 1 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.0 in.	0.065 in.	1.19 in.	0.56 in.	1 Week	$32
1002345WT150 45 Degree Elbow Fitting, Buttweld, Tangents, 1.5 in. O.D., 304 Stainless Steel $34 1 Week	1002345WT150 45 Degree Elbow Fitting, Buttweld, Tangents, 1.5 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	1.5 in.	0.065 in.	1.63 in.	0.69 in.	1 Week	$34
1002345WT200 45 Degree Elbow Fitting, Buttweld, Tangents, 2 in. O.D., 304 Stainless Steel $37 1 Week	1002345WT200 45 Degree Elbow Fitting, Buttweld, Tangents, 2 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.0 in.	0.065 in.	2.31 in.	1.07 in.	1 Week	$37
1002345WT250 45 Degree Elbow Fitting, Buttweld, Tangents, 2.5 in. O.D., 304 Stainless Steel $47 1 Week	1002345WT250 45 Degree Elbow Fitting, Buttweld, Tangents, 2.5 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	2.5 in.	0.065 in.	3.0 in.	1.44 in.	1 Week	$47
1002345WT300 45 Degree Elbow Fitting, Buttweld, Tangents, 3 in. O.D., 304 Stainless Steel $74 1 Week	1002345WT300 45 Degree Elbow Fitting, Buttweld, Tangents, 3 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	3.0 in.	0.065 in.	3.69 in.	1.82 in.	1 Week	$74
1002345WT400 45 Degree Elbow Fitting, Buttweld, Tangents, 4 in. O.D., 0.083 in. 304 SS $88 1 Week	1002345WT400 45 Degree Elbow Fitting, Buttweld, Tangents, 4 in. O.D., 0.083 in. 304 SS	UNIVERSAL	1.0	4.0 in.	0.083 in.	4.81 in.	2.33 in.	1 Week	$88
1002345WT401 45 Degree Elbow Fitting, Buttweld, Tangents, 4 in. OD, 0.065 in. 304 SS $88 1 Week	1002345WT401 45 Degree Elbow Fitting, Buttweld, Tangents, 4 in. OD, 0.065 in. 304 SS	UNIVERSAL	1.0	4.0 in.	0.065 in.	4.81 in.	2.33 in.	1 Week	$88
1002345WT600 45 Degree Elbow Fitting, Buttweld, Tangents, 6 in. O.D., 304 Stainless Steel $256 1 Week	1002345WT600 45 Degree Elbow Fitting, Buttweld, Tangents, 6 in. O.D., 304 Stainless Steel	UNIVERSAL	1.0	6.0 in.	0.083 in.	7.33 in.	3.60 in.	1 Week	$256

Show All

Specifications

Component Type

45 Degree Elbow with Tangents
Fitting Type

Butt Weld

Series

Series 23
Material

304 Stainless Steel

Features

Buttweld Component Construction

The Series 23 components are constructed of 304 or 304L welded, drawn, and annealed stainless steel tubing. (316L is available on request.) For most vacuum process applications, this provides the best combination of the following critical features:

Low outgassing under vacuum
Chemically resistant
Annealed for consistent leak free welding
Minimized corrosion concentration points
Good availability
Cost consistent with the above requirements

Each component is fabricated using pulled port and 100% penetration TIG weld techniques. All welded components are leak free, carefully cleaned for high vacuum use and then packaged to remain clean until the time of installation.

Recommended Welding Techniques

Series 23 fittings are designed to be welded using techniques preferred for vacuum applications. These techniques include internal (socket type) welding and external buttwelding. The most commonly used type of weld for high vacuum applications is a TIG (Tungsten Inert Gas) fusion weld, preferably without filler rod. For the best results, remove components from packaging in clean conditions during installation. Handle the components with clean gloves and equipment in the absence of any fibers, fingerprint oils, or other greases. If these precautions are taken, the weld is more likely to be leak free and the integrity of the vacuum surface will remain intact and ready for use.

General hints for good vacuum welds include:

Always start with clean and properly weld prepped components.
For internal welds, minimize warping by using only enough heat for 60-75% penetration.
For external buttwelds, make sure they are 100% penetration with no internal cracks or crevices.
Do not weld internally then externally around the entire circumference of the fittings.
Make sure there is little or no gap between pieces to be welded.
Ensure that all surfaces affected by the heat of the weld, especially the vacuum side, are purged properly with inert gas.

Applications

Vacuum buttweld fittings are designed to be used in any vacuum applications where minimizing the number of sealed joints is critical.

Semiconductor wafer fabrication areas for remote installations and below a raised floor
Permanent house vacuum lines
Vacuum utility lines for vacuum fixtures
High temperature lines
Burn box exhaust lines
