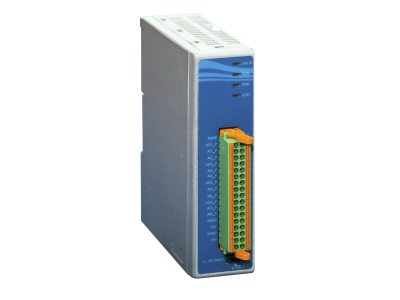

industrial automation analog input/output module
Analog IO Module, 8 Voltage Inputs, 4 Voltage Outputs, MKS System Bus
$842
Analog IO Module, 8 Current Inputs, 4 Voltage Outputs, MKS System Bus
$842

Specifications

  • Type
    Analog Input/Output Module
  • ADC Native Resolution
    16-bits
    (irrespective of the range user selects)
  • Number of Inputs
    8 (differential only)
  • Number of Outputs
    4, differential or single ended (configured by the user)
  • Minimum Precision
    14 noise-free bits for 95% of readings over full voltage range
  • Input & Output Ranges
    Voltage: 0-5V, 0-10V , ±5V, ±10V
    Current: 0-20ma , 4-20ma
    (Factory configurable between voltage and current)
  • Output Voltage Range
    -10V to 9.9997V
  • Anti-alias HW Filtering
    200Hz ±20%, 6dB/octave minimum
  • Input Voltage
    -10V to +9.9997V
  • DAC Native Resolution
    16-bits
  • Analog Input Minimum Input CMRR
    50dB, 0-1kHz
  • Analog Input Sampling Rate
    6.25 kHz (160 µSec, for all 8 channels)
  • Analog Output Output Accuracy at 25°C Ambient
    ±1.2mV measured at I/O connector with 2 kOhm load
  • Analog Output Output Accuracy Temp Drift
    0.02% of output value (20 - 35°C)
  • Maximum Output Current
    5mA, into a 2 kOhm, 10 nF load
  • Minimum Common Mode Voltage Range
    ±8V
  • Minimum Input Impedance
    10 milliohms
  • Maximum Power Consumption per Module
    Assuming all AOs are current outputs @20mA ≥24V_IO@ 0.25Amp, 24V_CORE@ 0.15Amp
  • Pull Down Resistors on + and - Inputs
    10 milliohms to Ground
  • Protection
    ESD to IEC 61000-4-2 ±4kV contact, short to 24V, +15V, or -15V
  • Operating Temperature
    0° to +55°C
  • Storage Temperature
    -40 to 85°C
  • Altitude
    Up to 2000 meters
  • Humidity
    5 to 95% non-condensing
  • Dimensions
    35 x 125 x 92.3 mm (1.4 x 3.3 x 4.9 inches) (W x H x D)
  • Mounting
    DIN rail
  • Compliance
    RoHs, CE

Features

MKS Automation Platform

These modules are part of the MKS Automation Platform that provides a modular, scalable and configurable solution to meet your automation and control requirements. Designed to provide a complete automation solution to improve operational and productivity efficiencies, the Automation Platform enables faster implementations, provides lowest total cost of ownership, and improves utilization of existing tools and assets.
