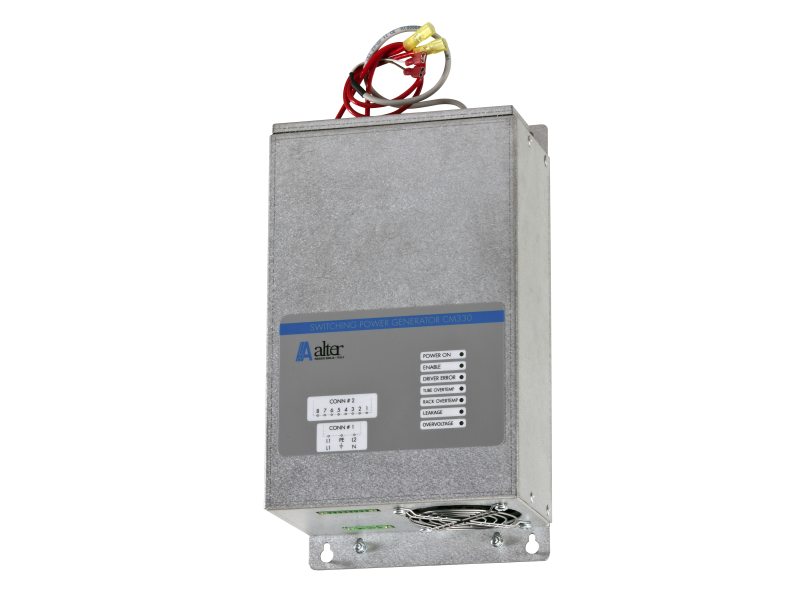

Alter® CM 330 Compact, Air-cooled Microwave Power Supply for 1kW, 2.45 GHz Magnetrons

The CM 330 Magnetron Power Supply is a compact, air-cooled, switch-mode power supply with an integrated filament transformer designed to drive a 1 kW magnetron. The CM 330 power supply is able to power and control 2 M244 type magnetrons with a maximum power of 1 kW @ 2.45 GHz. The output power of the CM 330 can be adjusted from 10% up to 100% using an external, linear 0 - 10 V analog signal.

Compact and lightweight form factor suitable for installations where the space saving is mandatory
Highly competitive alternative to larger/heavier traditional L-C power supplies
High efficiency power supply design requiring only air cooling simplifies installation and reduces cost
Low output ripple makes it suitable for laboratory and professional oven equipment
System designed for easy assembly inside an electrical enclosure

See All Features

Showing 1 of 1 total products

	Compare	Description	Compatibility	Drawings, CAD & Specs	Power Output	Power Requirements	Line Frequency	Avail.	Price
		CM-330Microwave Power Supply, 1 kW, 2.45 GHz Magnetron, Alter CM-330	UNIVERSAL		1400 W	160 - 260 VAC	50/60 Hz	Contact Us

Specifications

Type
CM 330
Power Output
1400 W
Input Voltage
160 to 260 VAC
Line Frequency
50/60 Hz
Efficiency
92%
Output Current
340 mA
Alarm Management
In the event of an alarm condition, the alarm contact opens, the output power is switched off and the alarm contact is latched. A reset procedure is required to turn the unit back on.

Dimensions
Width 180 mm (7.1 in.) Height, total (mm) 105 mm (4.1 in.) Length, total (mm) 320 mm (12.6 in.)
Weight
3.8 kg / 8.4 lbs.
Cooling
Forced air, 80 m³/h
Ambient Operating Temperature
40°C/104°F (max)
Compliance
CE mark, Directive EMC and LV, through norms EN61010-1, EN61000-6-2, EN61000-6-4
Preferred Microwave Magnetron Head
TxA10 (Open frame head, waveguide size WR340), Other manufacturers electrically compatible heads

Accessories

Description	Compatibility	Avail.
AG340Microwave Tuner, Air-Cooled, Manual, 3-Stub, 2450 MHz	UNIVERSAL	Contact Us
DC1340Microwave Directional Coupler, Single Channel, 2450 MHz	UNIVERSAL	Contact Us
DC2340Microwave Directional Coupler, Dual Channel, 2450 MHz	UNIVERSAL	Contact Us
RD8400A1Microwave Linear Power Sensor, Single Channel, 2450 MHz	UNIVERSAL	Contact Us
RD8400A2Microwave Linear Power Sensor, Dual Channel, 2450 MHz	UNIVERSAL	Contact Us
