750D 20-3000 PSIA Baratron® Absolute Capacitance Manometers
Overview
The 750D Baratron® Manometer is a rugged, industrial-grade absolute pressure transducer, offering superior accuracy, repeatability, and long-term signal stability. All exposed sensor surfaces have exceptional resistance to corrosion from a wide variety of aggressive chemicals. The sensor is fully welded, for protection during accidental exposure to dangerous chemicals.
- 20 to 3000 psia full scale ranges with ±1% of reading accuracy
- 4-20 mA, 0-5 VDC or 0-10 VDC output proportional to absolute pressure
- Overpressure limit of two times Full Scale or 45 psia with no performance degradation
- All-welded Inconel® sensor construction for use with corrosive media
- Wide variety of fittings and electrical connectors for maximum flexibility
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Absolute Pressure Transducer, 100 psia, 0.125 in. NPT Male, 0-10 VDC, DB9
$1,049
|
750D12PFE2GA Absolute Pressure Transducer, 100 psia, 0.125 in. NPT Male, 0-10 VDC, DB9 | $1,049 |
|
|||
|
|
750D12PFE4GA Absolute Pressure Transmitter, 100 psia, 0.125 in. NPT-M, 4-20 mA, DB9 |
|
|||||
|
|
Absolute Pressure Transducer, 100 psia, 0.125 in. NPT Female, 0-10 VDC, DB9
$1,049
|
750D12PFF2GA Absolute Pressure Transducer, 100 psia, 0.125 in. NPT Female, 0-10 VDC, DB9 | $1,049 |
|
|||
|
|
Absolute Pressure Transmitter, 100 psia, 0.125 in. NPT-F, 4-20 mA, DB9
$1,049
|
750D12PFF4GA Absolute Pressure Transmitter, 100 psia, 0.125 in. NPT-F, 4-20 mA, DB9 | $1,049 |
|
|||
|
|
750D13PFE2GA Absolute Pressure Transducer, 1000 psia, 0.125 in. NPT Male, 0-10 VDC, DB9 |
|
|||||
|
|
750D13PFE4GA Absolute Pressure Transmitter, 1000 psia, 0.125 in. NPT-M, 4-20 mA, DB9 |
|
|||||
|
|
Absolute Pressure Transducer, 1000 psia, 0.125 in. NPT Female, 0-10 VDC, DB9
|
750D13PFF2GA Absolute Pressure Transducer, 1000 psia, 0.125 in. NPT Female, 0-10 VDC, DB9 |
|
||||
|
|
750D13PFF4GA Absolute Pressure Transmitter, 1000 psia, 0.125 in. NPT-F, 4-20 mA, DB9 |
|
|||||
|
|
Absolute Pressure Transducer, 1000 Torr, 0.125 in. NPT Male, 0-10 VDC, DB9
$1,103
|
750D13TFE2GA Absolute Pressure Transducer, 1000 Torr, 0.125 in. NPT Male, 0-10 VDC, DB9 | $1,103 |
|
|||
|
|
Absolute Pressure Transmitter, 1000 Torr, 0.125 in. NPT-M, 4-20 mA, DB9
$1,103
|
750D13TFE4GA Absolute Pressure Transmitter, 1000 Torr, 0.125 in. NPT-M, 4-20 mA, DB9 | $1,103 |
|
|||
|
|
Absolute Pressure Transducer, 1000 Torr, 0.125 in. NPT Female, 0-10 VDC, DB9
$1,105
|
750D13TFF2GA Absolute Pressure Transducer, 1000 Torr, 0.125 in. NPT Female, 0-10 VDC, DB9 | $1,105 |
|
|||
|
|
Absolute Pressure Transmitter, 1000 Torr, 0.125 in. NPT-F, 4-20 mA, DB9
$1,105
|
750D13TFF4GA Absolute Pressure Transmitter, 1000 Torr, 0.125 in. NPT-F, 4-20 mA, DB9 | $1,105 |
|
|||
|

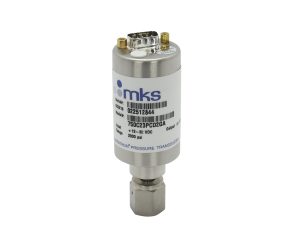

750D23PCD2GA Absolute Pressure Transducer, 2000 psia, 4 VCR Female, 0-10 VDC, DB9 |
15 Weeks
|
|
||||
|

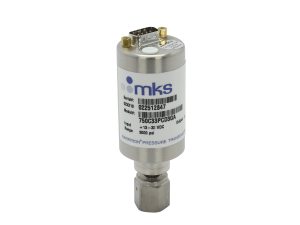

750D33PCD3GA Absolute Pressure Transducer, 3000 psia, 4 VCR Female, 0-5 VDC, DB9 |
15 Weeks
|
$1,048 |
|
|||
|
|
750D33PFE2GA Absolute Pressure Transducer, 3000 psia, 0.125 in. NPT Male, 0-10 VDC, DB9 |
|
|||||
|
|
750D33PFE4GA Absolute Pressure Transmitter, 3000 psia, 0.125 in. NPT-M, 4-20 mA, DB9 |
|
|||||
|
|
Absolute Pressure Transducer, 3000 psia, 0.125 in. NPT Female, 0-10 VDC, DB9
|
750D33PFF2GA Absolute Pressure Transducer, 3000 psia, 0.125 in. NPT Female, 0-10 VDC, DB9 |
|
||||
|
|
750D33PFF4GA Absolute Pressure Transmitter, 3000 psia, 0.125 in. NPT-F, 4-20 mA, DB9 |
|
|||||
|

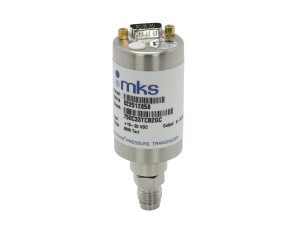

750D33TCB2GC Absolute Pressure Transducer, 3000 Torr, 4 VCR Male, 0-10 VDC, DB9 |
15 Weeks
|
$1,048 |
|
|||
|
|
750D51PFE2GA Absolute Pressure Transducer, 50 psia, 0.125 in. NPT Male, 0-10 VDC, DB9 |
|
|||||
|
|
Absolute Pressure Transmitter, 50 psia, 0.125 in. NPT-M, 4-20 mA, DB9
$1,049
|
750D51PFE4GA Absolute Pressure Transmitter, 50 psia, 0.125 in. NPT-M, 4-20 mA, DB9 | $1,049 |
|
|||
|
|
750D51PFF2GA Absolute Pressure Transducer, 50 psia, 0.125 in. NPT Female, 0-10 VDC, DB9 |
|
|||||
|
|
750D51PFF4GA Absolute Pressure Transmitter, 50 psia, 0.125 in. NPT-F, 4-20 mA, DB9 |
|
Configuration Options
The following options are available for 750D Baratron® Absolute Pressure Transmitters
Ordering Code Example: 750D33PFA2GA
| Configuration Option | Option Code |
|---|---|
| 750D Absolute Capacitance Manometer | 750D |
Range Full Scale |
|
| 10 Torr | 11T |
| 20 Torr | 21T |
| 50 Torr | 51T |
| 100 Torr | 12T |
| 200 Torr | 22T |
| 500 Torr | 52T |
| 1000 Torr | 13T |
| 2000 Torr | 23T |
| 3000 Torr | 33T |
| 20 psia | 21P |
| 50 psia | 51P |
| 100 psia | 12P |
| 250 psia | RDP |
| 500 psia | 52P |
| 1000 psia | 13P |
| 2000 psia | 23P |
| 3000 psia | 33P |
Fittings |
|
| 0.5 in. OD tube | BA |
| 0.25 in. OD weld stub | BB |
| 4 VCR male | CB |
| 4 VCR female | CD |
| 8 VCR female | CE |
| 8 VCO female | DA |
| 0.25 in. NPT female | FA |
| 0.25 in.NPT male | FB |
| 0.125 in. NPT female | FF |
| 0.125 in. NPT male | FE |
| NW16 ISO-KF | GA |
| 1.33 in. OD CF | HA |
Analog Output |
|
| 0-10 VDC | 2 |
| 0-5 VDC | 3 |
| 4-20 mA | 4 |
Accuracy |
|
| 1.0% of Reading | G |
| 0.1% Full Scale (Best Fit Straight Line) | R |
Connector |
|
| 9-pin male D-subminiature | A |
| 15-pin male high-density D-subminiature | C |
| Flying Lead with 9-pin male D-subminiature | G |
| 4-pin Bendix PTO | D |
| Flying Leads – 6 ft (2 m) | F |
| Flying Lead with 15-pin male D-subminiature | K |
Specifications
-
TypeVacuum/pressure Transducer
-
Measurement TypeAbsolute
-
Full Scale Pressure Ranges10 Torr to 3000 psia
-
Accuracy±1% of Reading
-
Resolution0.01% of Full Scale
-
Repeatability±0.1% of Reading
-
Analog Output0-5 VDC, 0-10 VDC, or 4-20 mA
-
Zero Temperature Coefficient0.02% of Full Scale/°C
-
Span Temperature Coefficient0.04% of Reading/°C
-
MediaGas (for liquid contact MKS applications)
-
Volume0.3 cu. in.
-
Overpressure Limit45 psia or 2× Full Scale, whichever is greater
-
Burst PressureUp to 1000 psi:100 psia or 10× Full Scale, whichever is greater
Above 1000 psi: 5x Full Scale -
Power Requirements+13 to 32 VDC @ 10 mA max.
-
Response Time20 msec
-
Weight0.5 lbs (0.2 kg)
-
ComplianceFully CE compliant to EMC Directive 2004/108/EC
Fully compliant to Directive 2002-95-EC
Features
Baratron® Capacitance Manometer Technology
Capacitance manometers are electro-mechanical gauges that can measure both pressure and vacuum. The capacitance gauge translates a pressure-modulated movement in a thin diaphragm into an electrical signal proportional to the pressure. The pressure sensor is the thin diaphragm that is exposed to the pressure or vacuum being measured via the inlet tube. An electrode is mounted in the reference cavity behind the diaphragm. Pressure differences between the process and the reference cavity deflect the diaphragm slightly, changing the distance between it and the electrode. Variations in this distance produce variations in the capacitance between the diaphragm and the electrode creating an electrical signal that is proportional to the pressure change. Since differences in the capacitance signal are produced by physical changes within the manometer and not by changes in the gas properties, pressure measurements by the capacitance manometer are independent of the composition of the gas being measured.
Gas independent pressure measurement with a Baratron® capacitance manometer. Schematic shows the internal components and functional zones.
Percent of Reading Accuracy
Accuracy is specified as a percent of Reading, not Full Scale, as seen in some of the lower performance devices. Percent of Reading accuracy provides you with an even more accurate output signal in the lower scale of the pressure range, where it is needed most.
Inconel® Nickel Alloy Construction
The patented capacitance sensor is built entirely from Inconel® nickel alloys on its measurement side, which offers superior corrosion resistance over long periods of time. Inconel® construction also offers high overpressure tolerances that reduce errors due to line pressure spikes, and high burst pressure ratings that contribute to overall system safety.
Absolute Pressure Measurement
These Baratron® pressure transducers are referenced to vacuum for absolute pressure measurement. Applications include: vacuum furnaces, freeze-drying of fruits and vegetables, gas lasers, automotive component testing, bottle coatings, and vacuum distillation.
Wide Variety of Pressure Output Signals
These capacitance manometers are available in a wide variety of pressure output signals. They can be used as a pressure transducer when choosing the 0-5 VDC or 0-10 VDC output option, or as a pressure transmitter when choosing the 4-20 mA output options.
Choice of Connector Types
These pressure transducers are available with a number of connectors for easy integration into a system. Connector options include:
- 9-pin male D-subminiature
- 15-pin male high-density D-subminiature
- 9-pin D-subminiature on flying lead
- 4-pin Bendix PTO
- Flying Leads – 6 ft (2 m)
- Flying Lead with 15-pin male D-subminiature
