Local Display Module, 250 PSI, Compound Calibration, 4-20 mA, Bendix, Panel Mount
Model: LDM-ARDPC4DD2
Local Display Module, 250 PSI, Compound Calibration, 4-20 mA, Bendix, Panel Mount
Local Display Module, 250 PSI, Compound Calibration, 4-20 mA, Bendix, Panel Mount
Model: LDM-ARDPC4DD2
Overview
Overview

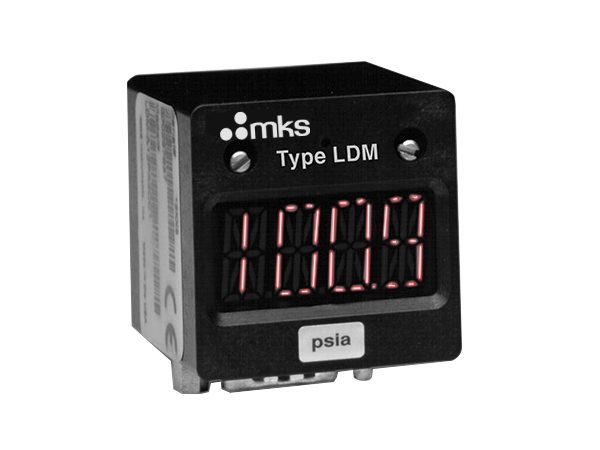

The LDM-ARDPC4DD2 Local Display Module features a 250 PSI full scale range with compound calibration, and a 4-20 mA output signal. It features Bendix connectors for the transducer and remote display, and is panel mounted. The LDM-A uses advanced analog electronics and can mount directly to the mating electrical connectors of MKS 740B, 742B, 750B, 752B, 840B, 842B, 850B, 852B, 870B, 872B, AA07A and AA08A Baratron pressure transducers. This 4-20 mA output signal uses a large LCD display and require +13 to 36 VDC excitation.
Technical Specs
-
TypeDisplay
-
Display3.5 digit display
-
Display Unitspsi
-
Channels1
-
Output Power4-20 mA
-
ConnectorsBendix/Bendix
-
UseMKS 700 and 800-Series Baratron® Pressure/Vacuum Transducers (Except Type 89xB Products)
-
Measurement Range250 psi
-
Calibration ReferenceCompound
-
MountingPanel
Resources & Downloads
Drawings & CADs
- LDM-A, LDM-D Local Display Module Dimensional Drawings (47.8 kB, PDF)
