640B Integrated Absolute Pressure Controllers
Overview

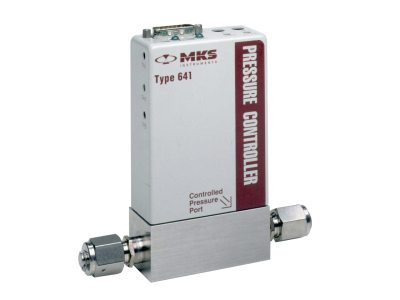

The 640B absolute pressure controller is a self-contained, compact, closed-loop electronic pressure control system containing a Baratron® capacitance manometer, normally closed proportioning control valve, and closed-loop control electronics. Electrically similar to a standard MFC, the 640B is powered by ±15 VDC at only 200 mA, permitting use with standard power supply and display electronics. The pressure output and input control signals are linear 0-5 or 0-10 VDC. Two trip points with LED status indicators are for use as simple on/off process limits.
- Integrated Baratron® capacitance manometer technology
- Full Scale ranges as low as 10 Torr for low pressure processes
- Can be used with upstream or downstream controller applications
- Two alarm trip points for process limit control
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Absolute Pressure Controller, 10 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B11TW1M12M Absolute Pressure Controller, 10 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 10 Torr, 200 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug
$3,416
4 Weeks
|
640B11TW1M12V Absolute Pressure Controller, 10 Torr, 200 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 10 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B11TW1M22M Absolute Pressure Controller, 10 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 10 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug
$3,416
4 Weeks
|
640B11TW1M22V Absolute Pressure Controller, 10 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 10 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B11TW1M32M Absolute Pressure Controller, 10 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B12TW1M12M Absolute Pressure Controller, 100 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B12TW1M22M Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug
$3,416
4 Weeks
|
640B12TW1M22V Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Viton Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B12TW1M32M Absolute Pressure Controller, 100 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 200 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B12TW1V12V Absolute Pressure Controller, 100 Torr, 200 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B12TW1V22V Absolute Pressure Controller, 100 Torr, 1000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
||
|
|
Absolute Pressure Controller, 100 Torr, 5000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B12TW1V32V Absolute Pressure Controller, 100 Torr, 5000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B13TW1M12M Absolute Pressure Controller, 1000 Torr, 200 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B13TW1M22M Absolute Pressure Controller, 1000 Torr, 1000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug
$3,416
4 Weeks
|
640B13TW1M32M Absolute Pressure Controller, 1000 Torr, 5000 sccm, 4 VCR-M, Metal Seal, Metal Valve Plug |
4 Weeks
|
$3,416 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 200 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B13TW1V12V Absolute Pressure Controller, 1000 Torr, 200 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 1000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B13TW1V22V Absolute Pressure Controller, 1000 Torr, 1000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
||
|
|
Absolute Pressure Controller, 1000 Torr, 5000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug
$2,925
4 Weeks
|
640B13TW1V32V Absolute Pressure Controller, 1000 Torr, 5000 sccm, 4 VCR-M, Viton Seal, Viton Valve Plug |
4 Weeks
|
$2,925 |
|
Configuration Options
The following options are available for 640B Absolute Pressure Controllers
Ordering Code Example: 640B13TW1V42V
| Configuration Option | Option Code |
|---|---|
|
640B Absolute Pressure Controller |
640B |
Pressure Range Full Scale |
|
| 10 Torr | 11T |
| 100 Torr | 12T |
| 1000 Torr | 13T |
| 60 psi | 61P |
| 100 psi | 12P |
Fittings |
|
| Swagelok 4 VCR male | W |
| Swagelok 8 VCR male | T |
| Swagelok 1/4 in. | S |
| W-Seal (2787.3F) | H |
| C-Seal (2787.1) | C |
Valve |
|
| Normally closed | 1 |
Seal Materials |
|
| Viton | V |
| Kalrez | D |
| Metal | M |
Orifice Size |
|
| A (50 sccm) | A |
| #1 (200 sccm) | 1 |
| #2 (1000 sccm) | 2 |
| #3 (5000 sccm) | 3 |
| #4 (10000 sccm) | 4 |
| #5 (20000 sccm) | 5 |
| #6 (30000 sccm) | 6 |
Trip Points |
|
| With | 2 |
Valve Plug Material |
|
| Viton | V |
| Kalrez | D |
| Metal | M |
| Kel-F | F |
Specifications
-
Type640B Absolute Pressure Controller
-
Pressure Range10, 100, 1000 mmHg (Torr), 60, 100 psi (Full Scale)
-
Fitting Type4 VCR, 8 VCR, 0.25 in. Tube, or Surface Mount
-
Flow Rate50, 200, 1000, 5000, 10000, 20000, 50000 sccm (nominal Full Scale flow rates for N2 with 15 psig on inlet and atmosphere on outlet)
-
Trip PointsTwo open-collector transistors
Rated: 250 mA @ 30 VDC
Adjustable: 1 to 100% of Full Scale
Hysteresis: 3% of Full Scale
Indicators: Green LED's on when actuated -
Pressure Control Accuracy±0.2% of Full Scale
-
Transducer Over Pressure Limit45 psia or 2x Full Scale, whichever is greater
-
Maximum Differential Pressure30 psi for 20,000 and 50,000 sccm orifices
150 psi for 50 to 10,000 sccm orifices
(consistent with transducer overpressure limit) -
Control ModeDownstream standard; Upstream optional
-
Pressure Measurement Accuracy±0.5% of Reading (includes linearity, hysteresis, and repeatability)
-
Zero Temperature CoefficientZero: ±0.02% of Full Scale/°C
-
Span Temperature CoefficientSpan: ±0.04% of Reading/°C
-
Control Range>2 to 100% of Full Scale
-
Typical Response Time<1.0 sec (excluding system time constant)
-
Operating Temperature0 - 50°C (32° to 122°F)
-
Storage Temperature-20 to 80°C (-4° to 176°F)
-
External Leak Integrity<10-9 scc/sec He
-
Leak Integrity Through Closed ValveElastomer valve: <10-4 scc/sec He
Metal valve: <1% of Full Scale (N2 @ 1 atm. ΔP)
Kel-F valve: <0.5% of Full Scale (N2 @ 1 atm. ΔP)
(through closed valve)* -
Wetted MaterialsStandard: 316L S.S., 316L/VAR S.S., Inconel, Nickel
Optional: Viton®, Kalrez®, Kel-F® -
Power Required±15 VDC ±5%, 200 mA maximum
-
Connector-Interface15-pin male type "D"
-
Meter Response Time<100 msec
-
RFI SensitivitySAMA 33.1, 1-abc: <0.2% of Full Scale
-
Input-Output Signals0-5 VDC standard; 0-10 VDC optional
-
Cable Length100 feet (30 m) maximum
-
Weight2.54 lbs. (1.15 kg)
-
Dimensions1.5 inches (38.1 mm) x 4.88 inches (124 mm) (4 VCR) x 5.50 inches (140 mm) maximum
-
ComplianceCE
