Compare Description Drawings, CAD & Specs Availability Price

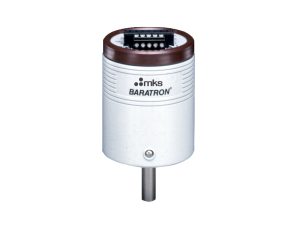

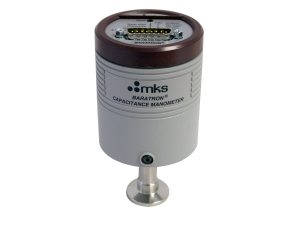

623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H11TBE
Absolute Pressure Transducer, 2 Trip Points, 10 Torr, 8 VCR-F, 5-pin Terminal
$1,622
Contact Us
 623H11TBE Absolute Pressure Transducer, 2 Trip Points, 10 Torr, 8 VCR-F, 5-pin Terminal
Contact Us
 $1,622
623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H11TDE
Absolute Pressure Transducer, 2 Trip Points, 10 Torr, NW16-ISO-KF, 5-pin Terminal
$1,622
Contact Us
 623H11TDE Absolute Pressure Transducer, 2 Trip Points, 10 Torr, NW16-ISO-KF, 5-pin Terminal
Contact Us
 $1,622
623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H12TBE
Absolute Pressure Transducer, 2 Trip Points, 100 Torr, 8 VCR-F, 5-pin Terminal
$1,622
Contact Us
 623H12TBE Absolute Pressure Transducer, 2 Trip Points, 100 Torr, 8 VCR-F, 5-pin Terminal
Contact Us
 $1,622
623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H12TDE
Absolute Pressure Transducer, 2 Trip Points, 100 Torr, NW16-ISO-KF, 5-pin Terminal
$1,622
Contact Us
 623H12TDE Absolute Pressure Transducer, 2 Trip Points, 100 Torr, NW16-ISO-KF, 5-pin Terminal
Contact Us
 $1,622
623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H13TBE
Absolute Pressure Transducer, 2 Trip Points, 1000 Torr, 8 VCR-F, 5-pin Terminal
$1,622
Contact Us
 623H13TBE Absolute Pressure Transducer, 2 Trip Points, 1000 Torr, 8 VCR-F, 5-pin Terminal
Contact Us
 $1,622
623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points
623H13TDE
Absolute Pressure Transducer, 2 Trip Points, 1000 Torr, NW16-ISO-KF, 5-pin Terminal
$1,622
Contact Us
 623H13TDE Absolute Pressure Transducer, 2 Trip Points, 1000 Torr, NW16-ISO-KF, 5-pin Terminal
Contact Us
 $1,622

Configuration Options

 Show All Configuration Options
Description

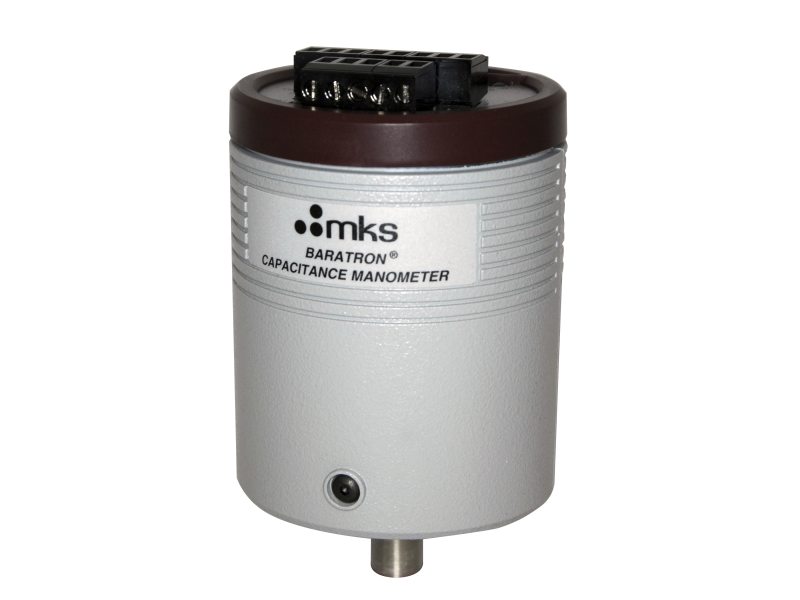

623f 1-1000 torr, unheated absolute baratron capacitance manometer with trip points 623H Analog Capacitance Manometer, 10 - 1,000 Torr, Trip Points, Terminal

Specifications

  • Type
    Vacuum/pressure Transducer
  • Measurement Type
    Absolute
  • Full Scale Pressure Ranges
    10, 20, 100, 500, and 1000 Torr
  • Full Scale Range
    Ambient
  • Analog Output
    0-10 VDC into >10kΩ load
  • Accuracy
    0.25% of Reading
  • Electrical Connector
    5-pin Terminal Block
  • Zero Temperature Coefficient
    0.005% of Full Scale/°C
  • Span Temperature Coefficient
    0.04% of Reading/°C
  • Operating Temperature Range
    0-50°C
  • Resolution
    0.001% of Full Scale
  • Volume
    6.3 cc
  • Overpressure Limit
    45 psia (310 kPa)
  • Exposed Materials
    Incoloy® and Inconel®
  • Warm-up Time
    30 minutes
  • Trip Points
    2
  • Trip Point Relay Rating
    SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive
  • Power Requirements
    ± 15 VDC ±5% @ 75 mA
  • Compliance
    Fully compliant to EMC Directive 2014/30/EU
    Fully compliant to RoHS Directive 2011/65/EU

Features

Baratron® Capacitance Manometer Technology

Capacitance manometers are electro-mechanical gauges that can measure both pressure and vacuum. The capacitance gauge translates a pressure-modulated movement in a thin diaphragm into an electrical signal proportional to the pressure. The pressure sensor is the thin diaphragm that is exposed to the pressure or vacuum being measured via the inlet tube. An electrode is mounted in the reference cavity behind the diaphragm. Pressure differences between the process and the reference cavity deflect the diaphragm slightly, changing the distance between it and the electrode. Variations in this distance produce variations in the capacitance between the diaphragm and the electrode creating an electrical signal that is proportional to the pressure change. Since differences in the capacitance signal are produced by physical changes within the manometer and not by changes in the gas properties, pressure measurements by the capacitance manometer are independent of the composition of the gas being measured.

Gas independent pressure measurement with a Baratron® capacitance manometer. Schematic shows the internal components and functional zones.

Percent of Reading Accuracy

Accuracy is specified as a percent of Reading, not Full Scale, as seen in some of the lower performance devices. Percent of Reading accuracy provides you with an even more accurate output signal in the lower scale of the pressure range, where it is needed most.

Absolute Pressure Measurement

These Baratron® pressure transducers are referenced to vacuum for absolute pressure measurement. Applications include: vacuum furnaces, freeze-drying of fruits and vegetables, gas lasers, automotive component testing, bottle coatings, and vacuum distillation.

Inconel® and Incoloy® Construction

These pressure transducers feature Inconel® and Incoloy® nickel alloy construction of the pressure sensor allowing it to operate without damage in virtually any chemical environment, including halogens, deionized water and steam, and ozone. The sensor is fully welded with no intermediate brazing or joining materials.

Two Adjustable Process Trip Point Relays

The 623H Absolute Capacitance Manometer features two user adjustable process trip point relays, each with an adjustment range from 0.1% to 100% of Full Scale or voltage equivalent 0.01 to 10 VDC. Dual color LEDs indicate relay status. Typical relay uses include pump cross-over and valve activation.
