1249B Solenoid Control Valve Driver

Products
Features
Resources
Contact Us

Overview

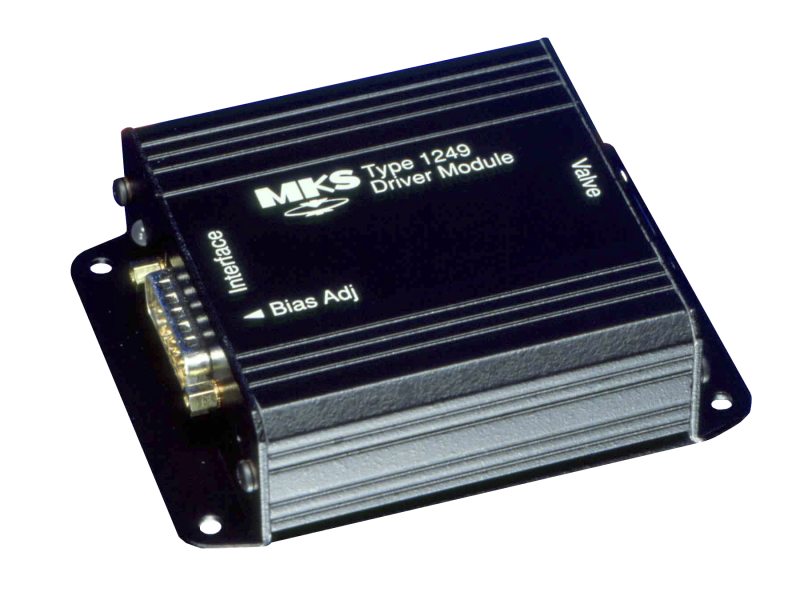

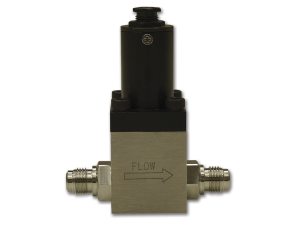

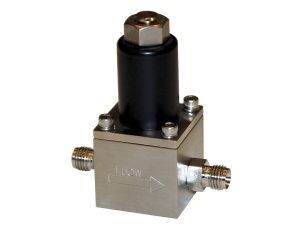

The 1249 Control Valve Driver provides the drive signal required to operate the MKS 148 and 248 Proportioning Solenoid Valves used for pressure or flow control. It is intended for use with PCs, PLCs, or other controllers that provide the necessary PID control functions, but which do not have the current output necessary to drive these valves.

Enables PC, PLC, or other user- supplied control algorithm to operate a proportioning control valve
Makes use of existing system capabilities to lower the cost of pressure or flow control
Flexible power and signal requirements
Small package can be mounted wherever space is available

See All Features

Products

		Compare	Description	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		For Use With	Type	Display	Availability	Featured Item	Price		Brand
		1249 Solenoid Valve Driver, 148 and 248 Proportioning Valves 14 Weeks	1249 Solenoid Valve Driver, 148 and 248 Proportioning Valves	UNIVERSAL	0.0	1.0	0.0		0.0	148J, 248D Valves	Solenoid Control Valve Driver	Valve Open/Closed LED	14 Weeks

Show All

Specifications

Type

1249 Solenoid Control Valve Driver
For Use With

148J & 248D Pressure Control Valves
Power Input

±15 VDC ±5% @ 330 mA max. or
24 VDC ±10% @ 270 mA max.(including valve)
Signal Input

Analog: 0-5 VDC, 0-10 VDC or 4-20 mA (user selectable)
Digital: TTL or open collector overrides to open or close valve
Output Signal

0-300 mA
Operating Temperature

0 - 50°C

Storage Humidity

0% to 95% RH non-condensing
Display

Valve open/valve closed LED
Connectors

Input: 15-pin Type “D” male
Output: 9-pin Type “D” female
Dimensions

1.13 inches H x 3.28 inches L x 4.12 inches D (28.7 mm x 83.3 mm x 104.6 mm)
Controls

Manual bias pot
Compliance

CE

Features

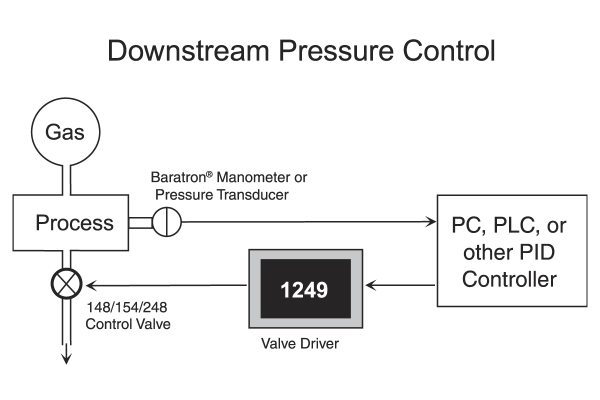

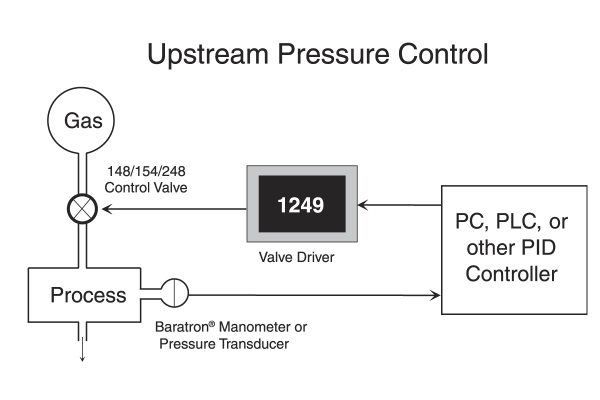

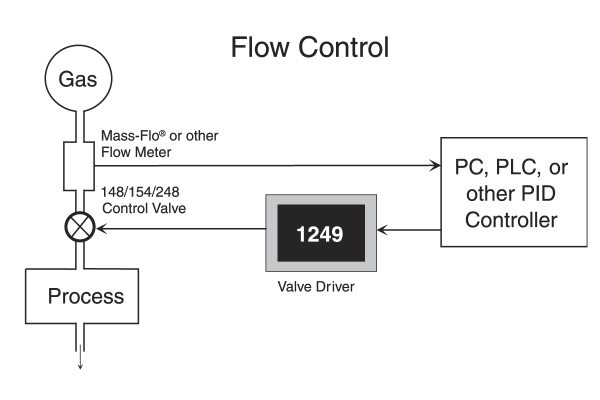

Analog Control

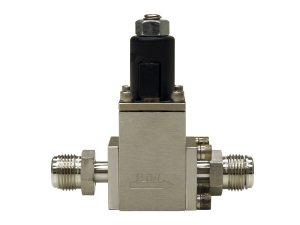

The 1249 can be powered by common power supplies of ±15 VDC or 24 VDC, consuming less than one Watt of power (not including the valve). It accepts control signal inputs of 0-5 VDC, 0-10 VDC, or 4-20 mA from a PC, PLC, or another system controller. The output signal of the 1249 is tailored to match the requirements of the 148 or 248 Proportioning Control Valve. The 1249 may also be used to drive a 154 Valve if the power applied to the 1249 is ±15 VDC or +30 VDC. Consult Applications Engineering at (800) 227-8766 for details.
