Alter® RD8400 Linear Power Sensor
Overview

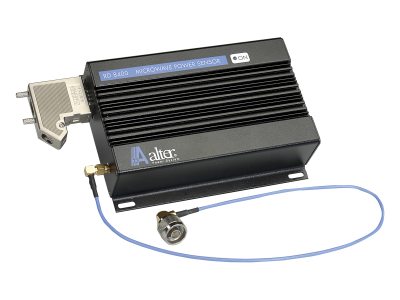

The Alter® RD8400 Linear Power Sensor is able to measure the power of a microwave signal at 2.45 GHz. It has a 0 - 10 V output signal proportional to the reading. The RD8400 is able to detect either the value of the continuous power or the peak value of the mean power. The RD8400 receives the power signal through a coax cable provided with standard connectors and sends the output signal through a "D" type connector, without using an external diode detector.
- Compact and shielded aluminum box
- Direct mount on isolator
- 0 – 10V output signal
Products
Specifications
-
TypeRD8400 Linear Power Sensors
-
Operating Frequency2450 MHz, ±50MHz
-
Dimensions173 x 130 x 45 mm
-
Ambient Temperature5 to 40°C
-
Weight0.5 kg.
-
Coax Cable600mm standard, other lengths available.
-
ProtectionIP20
-
Input Voltage12 - 24 VDC
-
Input Signal Range-30 to +10 dBm
-
Error at Different Values of Frequency±1% max
-
Different Attenuation Value for Each ChannelYes
-
Outputs1 or 2, not correlated
-
Output Signal0 - 10 VCC
