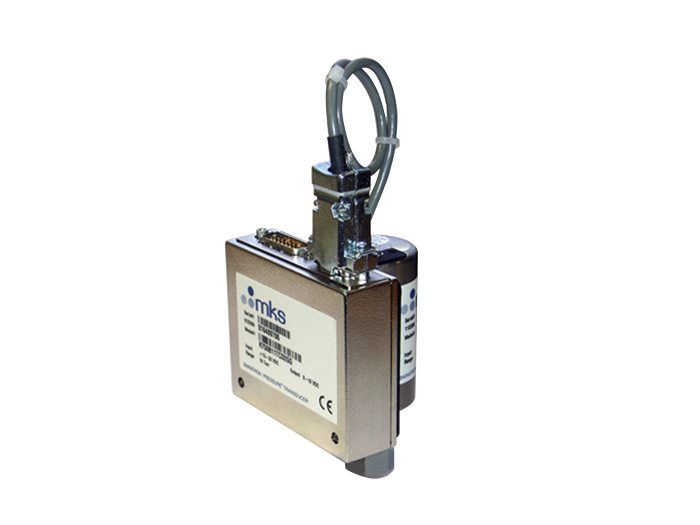

R750D 10-3000 PSIG Baratron® Absolute Capacitance Manometers with Trip Relays
Model: R750D
R750D 10-3000 PSIG Baratron® Absolute Capacitance Manometers with Trip Relays
Model: R750D
Overview
Overview
The R750D High-Pressure Baratron® Absolute Capacitance Transducer is a rugged, industrial-grade pressure and vacuum transducer with superior accuracy, repeatability, and long-term signal stability. It offers both a standard 0-10 VDC analog output signal and two (2) independently-adjusted electromechanical trip relays that can be used to switch external components such as pumps, valves, and other equipment. The electronics are mounted in a rugged stainless steel housing designed for heavy industrial use. The Type R750D is an absolute transducer (referenced to high vacuum), offering full-scale measurement from 10 Torr (13 mbar) to 3000 PSIA (204 bar).
Technical Specs
- TypePressure Transducer
- Measurement TypeAbsolute
- Full Scale Range3000 psia
- Fitting Type0.25 in. NPT female
- Accuracy±1% of Reading
- Resolution±0.01% of Full Scale
- Repeatability±0.1% of Reading
- Analog Output0 - 10 VDC
- Electrical Connector15-pin D-sub
- Zero Temperature Coefficient0.02% of Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Exposed MaterialsInconel®, Incoloy®, and 316L stainless steel
- Volume4.7 cc
- Overpressure Limit45 PSI or 2x FS (whichever is greater)
- Burst PressureFull Scale ranges of 1000 PSI or less: 100 PSI or 10x FS (whichever is greater), Full Scale ranges of more than 1000 PSI: 5x FS
- Power Requirements±15 VDC (±5%), 35 mA
- Response Time20 msec
- Factory Default Trip Relay SettingsTrip Relay A energizes below 55% of Full Scale range, and Trip Relay B energizes above 55% of Full Scale range. Custom relay settings available on special order.
- Relay SpecificationsTwo independently - adjusted DPDT contacts adjustable between 0.5% and 100% of Full Scale. Relays are UL listed and rated at 1.0 amps @ 30 VDC or 0.3 amps @ 30VAC. Relay setpoints and operating directions can be adjusted by customers from exterior of product.
- Weight1.0 lbs (0.4 kg)
- ComplianceCE
