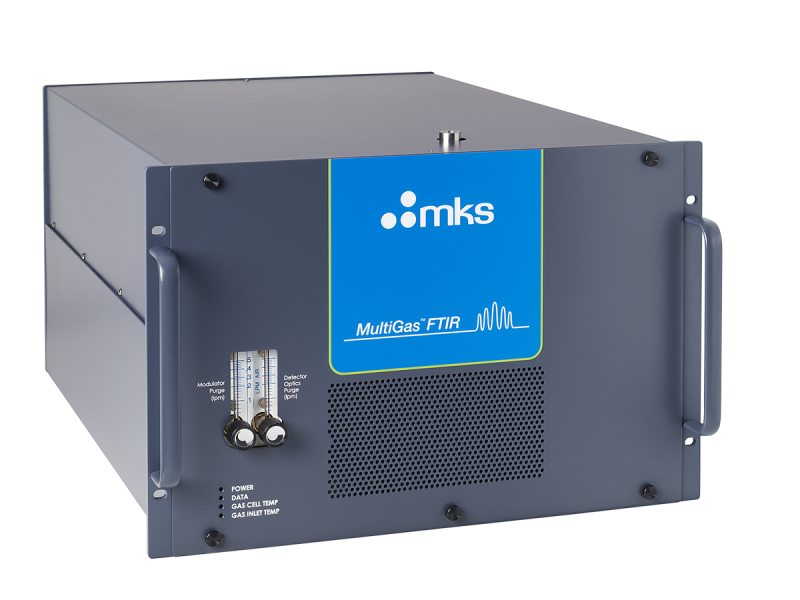

MultiGas 2030 10 Hz FTIR Gas Analyzer
Model: MULTIGAS-2030-10Hz
MultiGas 2030 10 Hz FTIR Gas Analyzer
Model: MULTIGAS-2030-10Hz
Overview
Overview
MultiGas 2030 10Hz FTIR Gas Analyzer
The 2030 10 Hz MultiGas™ FTIR Gas Analyzer’s fast response time with low flow rate, very low detection limits, and wide analytical range make it the choice for vehicle emissions monitoring systems. Leveraging MKS’ industry proven 2030 FTIR platform, the 10 Hz model has scanning capability at 0.5cm-1 resolution, providing exceptional detail of transient emissions.
The gas sample is introduced hot and wet, directly into the MultiGas™ Analyzer, with no need for chillers. The stainless-steel design, with a corrosion resistant Dursan™ coating, provides the lowest residence time for "sticky" gases. It is available with a broadband detector, capable of measuring a minimum of 20 component emissions, and requires liquid N2. Available in 1065 Ready (200cc gas cell volume) and 1065 Ready LV (70cc gas cell volume) versions. The 10 Hz model supports light duty (LD) and heavy duty (HD) vehicles and engines as well as catalyst manufacturers. Its rugged design makes it an ideal choice for engine or vehicle test labs, test cell, and onboard, portable emissions monitoring.
- Available in standard and LV gas cell versions
- Stainless steel gas cell with corrosion resistant Dursan™ coating and 0.375 in. welded inlet/outlet
- 70 cc or 200 cc gas cell volume for 1065-Ready versions
- Connectivity through AK Protocol or Modbus
- Compatible with all MKS Engines and Vehicles recipe packages
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for Ar, He, N2, H2, and O2
- Measurable RangeDependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.
- Spectral Resolution0.5cm-1 to 16cm-1
- DetectorLN2–cooled MCT, 500-5000 cm-1
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.4 LPM of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Optics Purge Flow0.4 LPM of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron® (0-1000 Torr)
- Purge ConnectionSwagelok® quick connect
- Computer RequirementsOperating System: Windows 10 Professional 64-bit, Windows 7 professional 64 bit
Desktop Processor: 6th generation Intel i5-6400 or better. Processors ending with a 'T' are not suitable.
Laptop Processor: 6th generation Intel i5-6300HQ or better. Processors ending with a 'U' are not suitable. RAM: 8 GB or more - CommunicationRJ-45 cross-over Ethernet
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 VAC/3 Amps or 240 VAC/1.5 Amps
- Weight110 lbs. (50 kg)
- Sampling Acquisition RateUp to 10 Hz
- Sample Gas Inlet/Outlet ConnectionSwagelok 0.375 in. male connector
- Laser SafetyClass 1 laser product contains a Class 3R laser with continuous wave output at 633 nm
Technical Specs
- TypeFTIR Analyzer
- Measurement TechniqueFTIR Spectrometry
- Measurable Gases & VaporsMost molecules except for Ar, He, N2, H2, and O2
- Measurable RangeDependent upon gas, from ppm to %. Refer to Engine and Vehicle Application Package.
- Spectral Resolution0.5cm-1 to 16cm-1
- DetectorLN2–cooled MCT, 500-5000 cm-1
- Purge Pressure20 psig (1.5 bar) max.
- Spectrometer Purge Flow0.4 LPM of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Optics Purge Flow0.4 LPM of dry nitrogen or CO2 free clean dry air with dewpoints below -70°C
- Pressure TransducerMKS Baratron® (0-1000 Torr)
- Purge ConnectionSwagelok® quick connect
- Computer RequirementsOperating System: Windows 10 Professional 64-bit, Windows 7 professional 64 bit
Desktop Processor: 6th generation Intel i5-6400 or better. Processors ending with a 'T' are not suitable.
Laptop Processor: 6th generation Intel i5-6300HQ or better. Processors ending with a 'U' are not suitable. RAM: 8 GB or more - CommunicationRJ-45 cross-over Ethernet
- Dimensions17.5 x 12.5 x 25.5 in. (width, height, depth)
- Power Requirements120 VAC/3 Amps or 240 VAC/1.5 Amps
- Weight110 lbs. (50 kg)
- Sampling Acquisition RateUp to 10 Hz
- Sample Gas Inlet/Outlet ConnectionSwagelok 0.375 in. male connector
- Laser SafetyClass 1 laser product contains a Class 3R laser with continuous wave output at 633 nm
