Ozone Gas Generator, 5 - 40 slm, Ultra Clean, High Concentration, High Flow
Model: AX8407
Ozone Gas Generator, 5 - 40 slm, Ultra Clean, High Concentration, High Flow
Ozone Gas Generator, 5 - 40 slm, Ultra Clean, High Concentration, High Flow
Model: AX8407
Overview
Overview

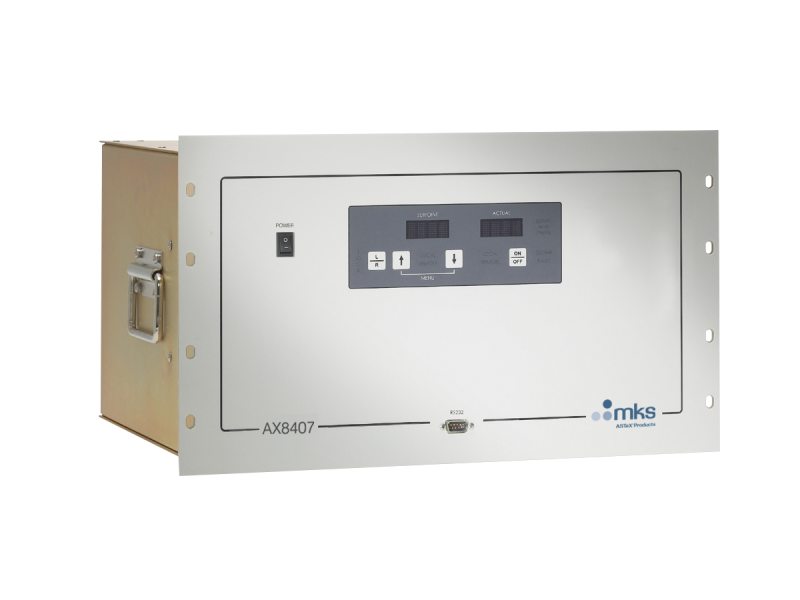

The AX8407 High Flow Ozone Generator converts pure oxygen into ozone through silent electrical discharge and achieves high output and high concentration level. It requires only minute levels of dopant nitrogen gas, far below the levels required for competitive ozone generators. As a result, the presence of contaminants, e.g. NOx compounds, is extremely low.
Technical Specs
-
TypeOzone Gas Generator
-
Ozone Outputup to 335 g/Nm3
-
Flow Rate5 - 40 slm
-
Feed GasOxygen: Grade 6 or better O2, Nitrogen: 100 - 1000 ppm grade 5 or better N2
-
Nominal Cell Pressure (Delivery)15 - 45 psig (100 - 310 kPa)
-
Pressure20 - 30 psig
-
Control InterfaceFront Panel Control and Remote Operation
-
Cooling Water Temperature5 - 25°C (41 - 77°F)
-
Cooling Water Filtration100 microns
-
Cooling Water QualityResistivity ≥50 KΩ/cm
-
Minimum Water Flow7.6 lpm (2.0 gpm) minimum
-
Voltage Requirements208 VAC (±10%)
-
Phase3Ø & Ground, no Neutral
-
Current Requirements15 Amps
-
Frequency50/60 Hz
-
Weight59 kg (130 Lb)
-
Dimensions483 x 445 x 267 mm (19.0 x 17.5 x 10.5 in) (width x depth x height)
-
ComplianceCE, UL/CSA and SEMI F47
Resources & Downloads
Drawings & CADs
- AX8407 Ozone Generator Dimensions (176.4 kB, PDF)
