Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD
Model: AA08B12PCJ2GC1
Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD
Pressure Transducer, 100 psia, Flow-through, 0-10 VDC, 4 VCR Female, 15-pin HD
Model: AA08B12PCJ2GC1
Overview
Overview

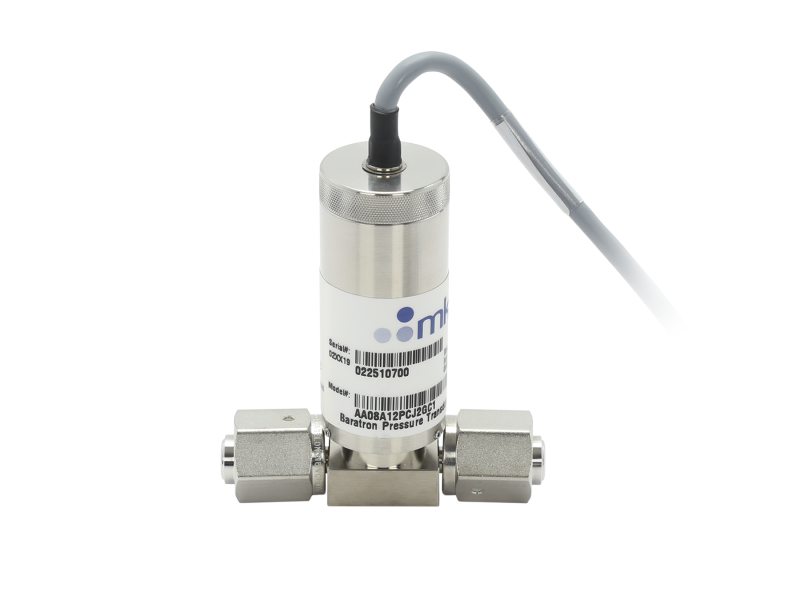

The AA08B12PCJ2GC1 Micro-Baratron® High Pressure, Ultraclean, Flow-through Pressure Transducer offers a Full Scale measurement range of 100 psia with 4 VCR® female fittings on both ends (2.95 inch face-face), 0-10 VDC analog output, and 15-pin Type "D" high density connector on a 9 inch flying lead in a standard enclosure. It is ideally suited for use in delivery systems that feed ultrapure gases to critical process systems.
Technical Specs
-
TypeVacuum/pressure Transducer
-
ConfigurationFlow-through
-
Measurement TypeAbsolute
-
Full Scale Pressure100 psia
-
Accuracy1.0% of Reading
-
Analog Output0-10 VDC
-
Fitting Type4 VCR female
-
Face to Face Length2.95 in.
-
Electrical Connector15-pin high density type D on 9 in. flying lead
-
Zero Temperature Coefficient0.02% of Full Scale/°C
-
Span Temperature Coefficient0.04% of Reading/°C
-
Overpressure Limit150 psia
-
Burst Pressure1000 psia
-
Exposed MaterialsIncoloy®
-
Surface Finish<5 µin Ra
-
EnclosureStandard
-
Power Requirements13-32 VDC
-
Operating Temperature Range0-50°C (32-122°F)
-
DisplayNo
-
ComplianceCE
Resources & Downloads
Drawings & CADs
- AA07 & AA08 Baratron® Pressure Transducer Dimensional Drawing (1,009.5 kB, PDF)
