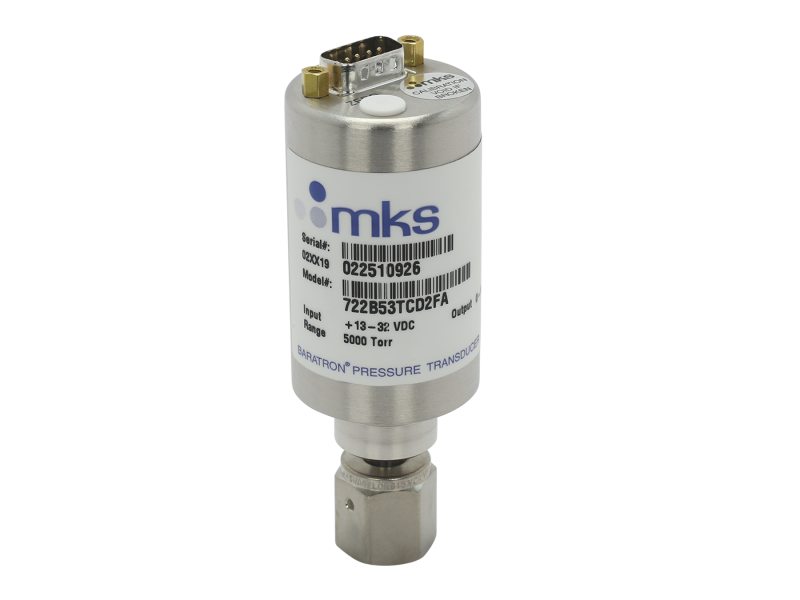

Vacuum Pressure Transducer, Absolute, 5000 Torr, 0-10 VDC, 4 VCR-F, DB9

Technical Specs

  • Type
    Vacuum/pressure Transducer
  • Measurement Type
    Absolute
  • Full Scale Range
    5000 Torr
  • Fitting Type
    4 VCR female
  • Analog Output
    0-10 VDC
  • Electrical Connector
    9-pin D-sub
  • Accuracy
    0.5% of Reading
  • Response Time
    <20 msec
  • Zero Temperature Coefficient
    0.008% of F.S./°C
  • Span Temperature Coefficient
    0.04% of Rdg./°C
  • Operating Temperature Range
    0-50°C
  • Overpressure Limit
    45 psia or 2 x F.S., whichever is greater
  • Burst Pressure
    10 x F.S. or 100 psi, whichever is greater
  • Exposed Materials
    Inconel®
  • Power Requirements
    13-32 VDC
