722C 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer
Overview
The 722C 1-25,000 Torr, General Purpose Absolute Baratron® Capacitance Manometer is a compact, low-cost manometer for accurate, repeatable, and reliable measurement. Robust sensor construction allows high overpressure tolerances, reducing errors caused by line pressure spikes. The flexible, space-saving design of the 722C makes it the ideal solution for retrofit applications as well as new equipment designs.
- Small footprint reduces system size
- Overpressure limit assures no degradation in zero repeatability or performance
- All-metal, all-welded construction exposing only Inconel® and stainless steel for high corrosion resistance
- "Drop-in" replacement for several earlier Baratron® manometers
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, DB9
$1,333
|
722C01TBA2FA Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, DB9 | $1,333 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, Terminal
$1,333
|
722C01TBA2FJ Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 0.5 in. Tube, Terminal | $1,333 |
|
|||
|
|
722C01TCE2FA Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 8 VCR-F, DB9 | $1,420 |
|
||||
|
|
Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 8 VCR-F, Terminal
$1,421
|
722C01TCE2FJ Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, 8 VCR-F, Terminal | $1,421 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,420
|
722C01TGA2FA Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, DB9 | $1,420 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, Terminal
$1,420
|
722C01TGA2FJ Vacuum Pressure Transducer, Absolute, 1 Torr, 0-10 VDC, NW16 ISO-KF, Terminal | $1,420 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, DB9
$1,188
|
722C02TBA2FA Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, DB9 | $1,188 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, Terminal
$1,188
|
722C02TBA2FJ Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 0.5 in. Tube, Terminal | $1,188 |
|
|||
|
|
722C02TCE2FA Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 8 VCR-F, DB9 | $1,274 |
|
||||
|
|
Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 8 VCR-F, Terminal
$1,275
|
722C02TCE2FJ Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, 8 VCR-F, Terminal | $1,275 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,274
|
722C02TGA2FA Vacuum Pressure Transducer, Absolute, 2 Torr, 0-10 VDC, NW16 ISO-KF, DB9 | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, 0.5 in. Tube, DB9
$1,188
|
722C11TBA2FA Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, 0.5 in. Tube, DB9 | $1,188 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, 0.5 in. Tube, Terminal
$1,188
|
722C11TBA2FJ Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, 0.5 in. Tube, Terminal | $1,188 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,274
|
722C11TGA2FA Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, NW16 ISO-KF, DB9 | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, NW16 ISO-KF, Terminal
$1,274
|
722C11TGA2FJ Vacuum Pressure Transducer, Absolute, 10 Torr, 0-10 VDC, NW16 ISO-KF, Terminal | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, 8 VCR-F, DB9
$1,274
|
722C12TCE2FA Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, 8 VCR-F, DB9 | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, 8 VCR-F, Terminal
$1,275
|
722C12TCE2FJ Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, 8 VCR-F, Terminal | $1,275 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,274
|
722C12TGA2FA Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, NW16 ISO-KF, DB9 | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, NW16 ISO-KF, Terminal
$1,275
|
722C12TGA2FJ Vacuum Pressure Transducer, Absolute, 100 Torr, 0-10 VDC, NW16 ISO-KF, Terminal | $1,275 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,274
|
722C13TGA2FA Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, DB9 | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, Terminal
$1,274
|
722C13TGA2FJ Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, Terminal | $1,274 |
|
|||
|
|
Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, DB15
$1,274
|
722C13TGA2FK Vacuum Pressure Transducer, Absolute, 1000 Torr, 0-10 VDC, NW16 ISO-KF, DB15 | $1,274 |
|
|||
|

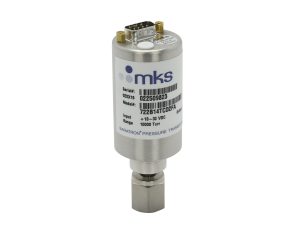

Vacuum Pressure Transducer, Absolute, 10000 Torr, 0-10 VDC, 4 VCR-F, DB9
$1,622
15 Weeks
|
722C14TCD2FA Vacuum Pressure Transducer, Absolute, 10000 Torr, 0-10 VDC, 4 VCR-F, DB9 |
15 Weeks
|
$1,622 |
|
||
|

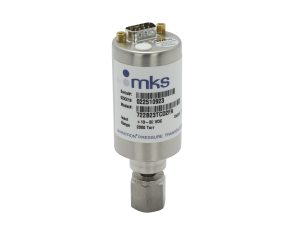

Vacuum Pressure Transducer, Absolute, 2000 Torr, 0-10 VDC, 4 VCR-F, DB9
$1,622
15 Weeks
|
722C23TCD2FA Vacuum Pressure Transducer, Absolute, 2000 Torr, 0-10 VDC, 4 VCR-F, DB9 |
15 Weeks
|
$1,622 |
|
||
|

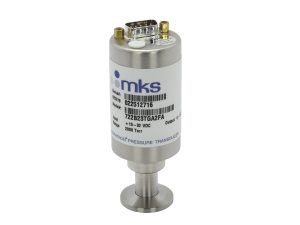

Vacuum Pressure Transducer, Absolute, 2000 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,622
15 Weeks
|
722C23TGA2FA Vacuum Pressure Transducer, Absolute, 2000 Torr, 0-10 VDC, NW16 ISO-KF, DB9 |
15 Weeks
|
$1,622 |
|
||
|

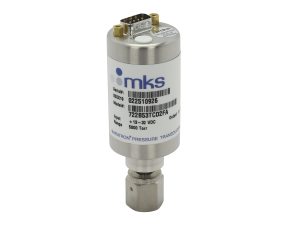

Vacuum Pressure Transducer, Absolute, 5000 Torr, 0-10 VDC, 4 VCR-F, DB9
$1,622
15 Weeks
|
722C53TCD2FA Vacuum Pressure Transducer, Absolute, 5000 Torr, 0-10 VDC, 4 VCR-F, DB9 |
15 Weeks
|
$1,622 |
|
||
|

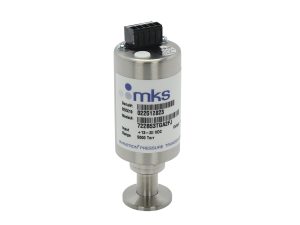

Vacuum Pressure Transducer, Absolute, 5000 Torr, 0-10 VDC, NW16 ISO-KF, DB9
$1,622
15 Weeks
|
722C53TGA2FJ Vacuum Pressure Transducer, Absolute, 5000 Torr, 0-10 VDC, NW16 ISO-KF, DB9 |
15 Weeks
|
$1,622 |
|
Configuration Options
The following options are available for the 722C Baratron® Absolute Capacitance Manometer.
Ordering Code Example: 722C12TCE2FJ
| Configuration Option | Option Code |
|---|---|
| 722C Absolute Capacitance Manometer | 722C |
Range Full Scale |
|
| 1 Torr | 01T |
| 2 Torr | 02T |
| 10 Torr | 11T |
| 20 Torr | 21T |
| 30 Torr | 31T |
| 50 Torr | 51T |
| 100 Torr | 12T |
| 250 Torr | RDT |
| 500 Torr | 52T |
| 1000 Torr | 13T |
| 2000 Torr (must be ordered with a fitting) | 23T |
| 5000 Torr (must be ordered with a fitting other than NW16KF) | 53T |
| 10,000 (must be ordered with a fitting other than NW16KF) | 14T |
| 20000 Torr (must be ordered with a fitting other than NW16KF) | 24T |
| 25000 Torr (must be ordered with a fitting other than NW16KF) | RCT |
Fittings (compatible with) |
|
| 0.5 in. (12.7 mm) OD tube | BA |
| 0.25 in. VCR female | CD |
| 8 VCR female | CE |
| Mini-CF, rotable | HA |
| NW16 ISO-KF | GA |
Analog Output |
|
| 0-10 VDC | 2 |
| 0-5 VDC | 3 |
Accuracy |
|
| 0.5% of Reading | F |
Electrical Connector |
|
| 9-pin Type "D" | A |
| 15-pin high density Type "D" | C |
| 4-pin bayonet type, Bendix® -compatible | D |
| 5-pin terminal strip | J |
| 15-pin Type "D" on 6-inch cable | K |
Specifications
-
TypeVacuum/pressure Transducer
-
Measurement TypeAbsolute
-
Full Scale Pressure Ranges1-25,000 Torr (mmHg) (0.02-500 psia)
-
Output0-5 VDC or 0-10 VDC into >10 kΩ load
-
Accuracy0.5% of Reading
-
Zero Temperature Coefficient0.008% of Full Scale/°C (10 Torr through 25,000 Torr)
0.020% of Full Scale (1 and 2 Torr)
-
Span Temperature Coefficient0.04% of Reading/°C
-
Operating Temperature0-50°C
15-40°C (1 and 2 Torr only) -
Overpressure Limit45 psia or 2x Full Scale, whichever is greater
-
Burst Pressure10x Full Scale or 100 psi, whichever is greater
-
Exposed MaterialsInconel®
-
ComplianceFully CE Compliant to EMC Directive 2004/108/EC1
Fully compliant to RoHS Directive 2002-95-EC
Features
Baratron® Capacitance Manometer Technology
Capacitance manometers are electro-mechanical gauges that can measure both pressure and vacuum. The capacitance gauge translates a pressure-modulated movement in a thin diaphragm into an electrical signal proportional to the pressure. The pressure sensor is the thin diaphragm that is exposed to the pressure or vacuum being measured via the inlet tube. An electrode is mounted in the reference cavity behind the diaphragm. Pressure differences between the process and the reference cavity deflect the diaphragm slightly, changing the distance between it and the electrode. Variations in this distance produce variations in the capacitance between the diaphragm and the electrode creating an electrical signal that is proportional to the pressure change. Since differences in the capacitance signal are produced by physical changes within the manometer and not by changes in the gas properties, pressure measurements by the capacitance manometer are independent of the composition of the gas being measured.
Gas independent pressure measurement with a Baratron® capacitance manometer. Schematic shows the internal components and functional zones.
Percent of Reading Accuracy
Accuracy is specified as a percent of Reading, not Full Scale, as seen in some of the lower performance devices. Percent of Reading accuracy provides you with an even more accurate output signal in the lower scale of the pressure range, where it is needed most.
Absolute Pressure Measurement
These Baratron® pressure transducers are referenced to vacuum for absolute pressure measurement. Applications include: vacuum furnaces, freeze-drying of fruits and vegetables, gas lasers, automotive component testing, bottle coatings, and vacuum distillation.
Corrosion Resistant Inconel® Construction
All-metal, all-welded construction exposes only Inconel and stainless steel to the gas media. This allows for high overpressure tolerances that reduce errors due to line pressure spikes. High burst pressure ratings contribute to overall system safety.
