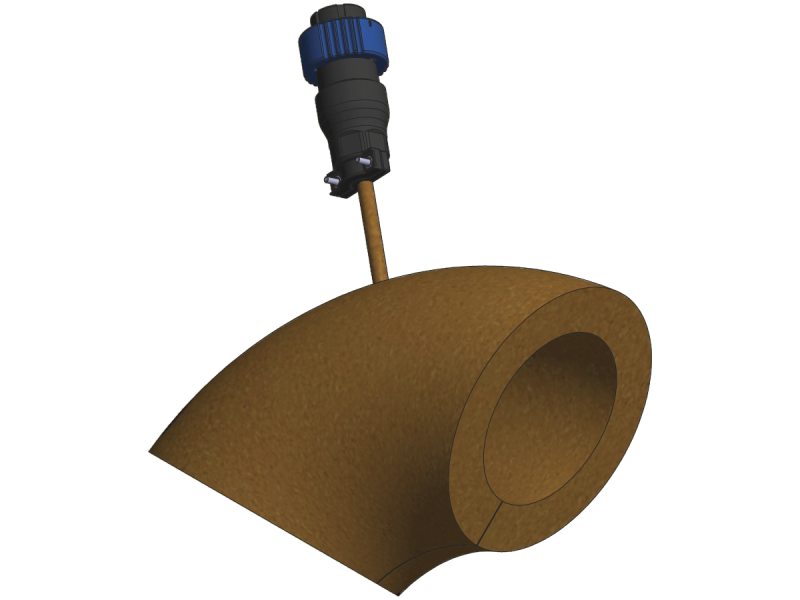

Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 240V

Technical Specs

  • Series
    Series 49UL
  • Type
    90 Degree Elbow Heater Jacket
  • Insulation Material
    Polyimide
  • Tube OD
    3.50 in. (88.9 mm)
  • Flange Type
    Buttweld
  • Temperature Range
    35 - 200°C
  • Voltage Requirements
    200-240 VAC
  • Current Requirements
    0.26 Amps
  • Modulus
    3.00 in. (76.2 mm)
  • Modulus 2
    3.00 in. (76.2 mm)
  • Bend Radius
    3.00 in. (76.2 mm)
  • Compliance
    CE, UL
