240 VAC Polyimide 90 Degree Elbow Heater Jackets
Overview
- Compatible with ISO and Buttweld 90 elbows
- Polyimide materials for heater and insulation
- 200-240 VAC power requirement
Products
| Compare | Description | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.5 in. Diameter Tubing, 240V
$866
5 Weeks
|
495015261-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 1.5 in. Diameter Tubing, 240V |
5 Weeks
|
$866 |
|
||
|
Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 240V
$924
5 Weeks
|
495015263-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 1.5 in. Tubing, 240V |
5 Weeks
|
$924 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.5 in. Diameter Tubing, 240V
$744
5 Weeks
|
495015266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.5 in. Diameter Tubing, 240V |
5 Weeks
|
$744 |
|
||
|

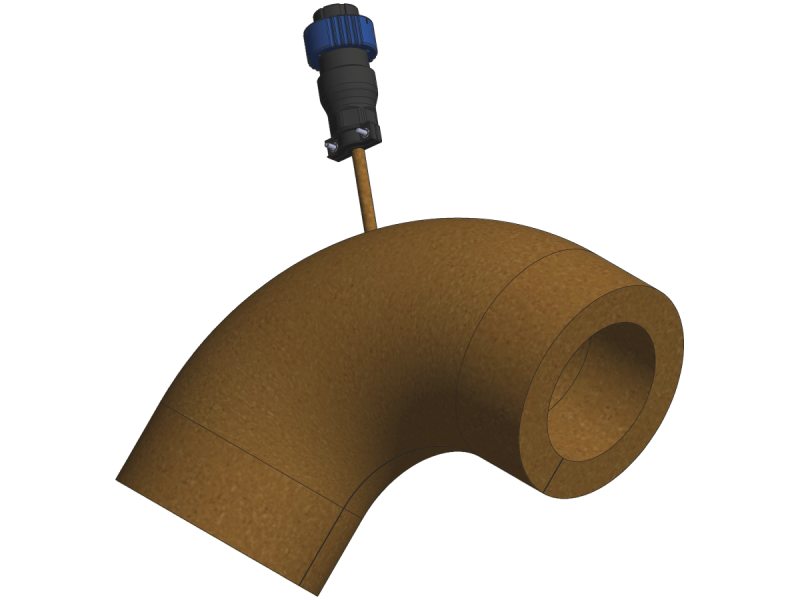

Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 1.5 in. Tubing, 240V
$895
5 Weeks
|
495015267-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 1.5 in. Tubing, 240V |
5 Weeks
|
$895 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 1.5 in. Tubing, 240V
$719
5 Weeks
|
495015268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 1.5 in. Tubing, 240V |
5 Weeks
|
$719 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.7 in. Diameter Tubing, 240V
$762
5 Weeks
|
495017266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.7 in. Diameter Tubing, 240V |
5 Weeks
|
$762 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.9 in. Diameter Tubing, 240V
$786
5 Weeks
|
495019266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 1.9 in. Diameter Tubing, 240V |
5 Weeks
|
$786 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2 in. Diameter Tubing, 240V
$938
5 Weeks
|
495020261-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2 in. Diameter Tubing, 240V |
5 Weeks
|
$938 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 2 in. Tubing, 240V
$1,041
5 Weeks
|
495020263-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Long Elbow, 2 in. Tubing, 240V |
5 Weeks
|
$1,041 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2 in. Diameter Tubing, 240V
$798
5 Weeks
|
495020266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2 in. Diameter Tubing, 240V |
5 Weeks
|
$798 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 2 in. Tubing, 240V
$974
5 Weeks
|
495020267-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 2 in. Tubing, 240V |
5 Weeks
|
$974 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.0 in. Tubing, 240V
$774
5 Weeks
|
495020268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.0 in. Tubing, 240V |
5 Weeks
|
$774 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.4 in. Diameter Tubing, 240V
$823
5 Weeks
|
495024266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.4 in. Diameter Tubing, 240V |
5 Weeks
|
$823 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.4 in. Tubing, 240V
$798
5 Weeks
|
495024268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.4 in. Tubing, 240V |
5 Weeks
|
$798 |
|
||
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2.5 in. Diameter Tubing, 240V
$828
5 Weeks
|
495025263-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 2.5 in. Diameter Tubing, 240V |
5 Weeks
|
$828 |
|
||
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.5 in. Diameter Tubing, 240V
$828
5 Weeks
|
495025266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 2.5 in. Diameter Tubing, 240V |
5 Weeks
|
$828 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.5 in. Tubing, 240V
$798
5 Weeks
|
495025268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 2.5 in. Tubing, 240V |
5 Weeks
|
$798 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 3 in. Diameter Tubing, 240V
$885
5 Weeks
|
495030263-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 3 in. Diameter Tubing, 240V |
5 Weeks
|
$885 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3 in. Diameter Tubing, 240V
$885
5 Weeks
|
495030266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3 in. Diameter Tubing, 240V |
5 Weeks
|
$885 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 3 in. Tubing, 240V
$1,089
5 Weeks
|
495030267-1150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 3 in. Tubing, 240V |
5 Weeks
|
$1,089 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.0 in. Tubing, 240V
$859
5 Weeks
|
495030268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.0 in. Tubing, 240V |
5 Weeks
|
$859 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 240V
$1,011
5 Weeks
|
495035261-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 240V |
5 Weeks
|
$1,011 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 240V
$1,078
5 Weeks
|
495035266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 3.5 in. Diameter Piping, 240V |
5 Weeks
|
$1,078 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.5 in. Piping, 240V
$974
5 Weeks
|
495035268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 3.5 in. Piping, 240V |
5 Weeks
|
$974 |
|
||
|
|
Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 4 in. Diameter Tubing, 240V
$1,132
5 Weeks
|
495040263-1150 Heater Jacket, Polyimide, fits ISO 90 Degree Elbow, 4 in. Diameter Tubing, 240V |
5 Weeks
|
$1,132 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4 in. Diameter Tubing, 240V
$1,132
5 Weeks
|
495040266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4 in. Diameter Tubing, 240V |
5 Weeks
|
$1,132 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 4 in. Tubing, 240V
$1,405
5 Weeks
|
495040267-2150 Heater Jacket, Polyimide, fits Weld 90 Elbow with Tangents, 4 in. Tubing, 240V |
5 Weeks
|
$1,405 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.0 in. Tubing, 240V
$1,089
5 Weeks
|
495040268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.0 in. Tubing, 240V |
5 Weeks
|
$1,089 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 240V
$1,260
5 Weeks
|
495045261-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 240V |
5 Weeks
|
$1,260 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 240V
$1,320
5 Weeks
|
495045266-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow, 4.5 in. Diameter Piping, 240V |
5 Weeks
|
$1,320 |
|
||
|
|
Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.5 in. Piping, 240V
$1,200
5 Weeks
|
495045268-1150 Heater Jacket, Polyimide, fits Weld 90 Degree Elbow with Flange on one side, 4.5 in. Piping, 240V |
5 Weeks
|
$1,200 |
|
Notes:
Specifications
-
SeriesSeries 49
-
TypeHeater Jacket
-
Insulation MaterialPolyimide
-
Component Type90° Elbow
-
Temperature Range35 - 200°C
-
Pre-Set Temperature150°C Standard
-
Voltage Requirements200-240 VAC
-
Heater ConnectorsCircular 6 Contact Locking Bayonet
-
Housing MaterialsController: Injection Molded
-
Controller DimensionsØ2.2 in. x 3.7 in.
-
Operating Temperature0 to 60°C
-
ComplianceCE, SEMI S2
Accessories
240 VAC Heater Jacket Power Kits
Heater jacket power kits includes a power cord and a Series 49 power junction block. The junction block supplies power to a chain of heater jackets and provides for communications pass thru to adjacent upstream and downstream chains of heaters.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
 |
20021381-001 Power Kit, fits Series 49UL Heater Jacket, 8 ft. 240 VAC Cable and Series 49UL Power Adapter | $184 |
|
||||
| |
20021382-001 Power Kit, fits Series 49UL Heater Jacket, 15 ft. 240 VAC Cable and Series 49UL Power Adapter | $184 |
|
User Interface Communications Kit
The communications kit includes a 24 in. communication cable and a USB to Micro USB adapter. Its used for setting up an monitoring a chain of heater jackets with a user supplied tablet running the Series 49 software application.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | |||
|---|---|---|---|---|---|---|---|
| |
20014265-001 Communications Kit, Series 49UL Heaters, Includes Communication Cable and USB Adapter | $184 |
|
