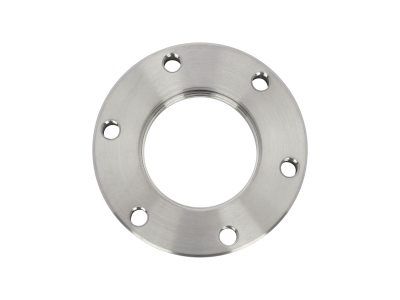

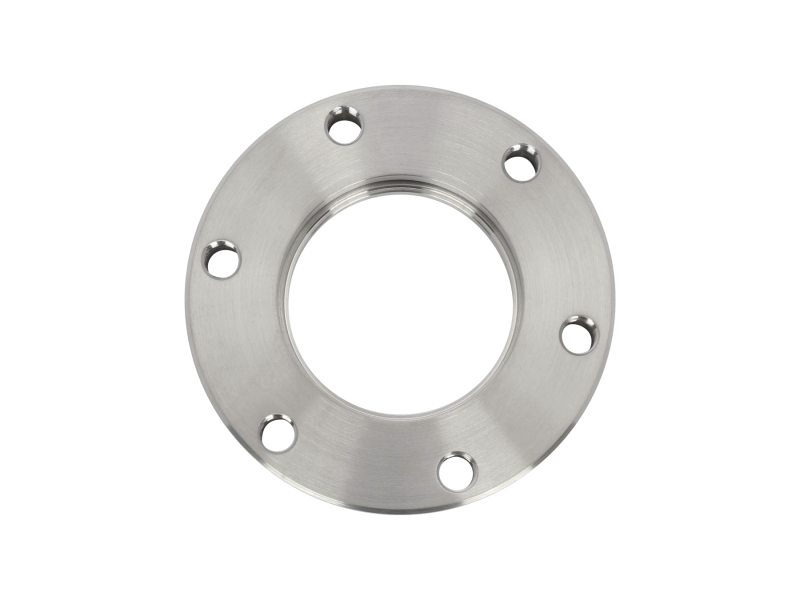

CF Flange, 2.75 in., 1.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes

Technical Specs

  • Component Type
    Rotatable Flange
  • Series
    Series 88
  • Flange Type
    CF
  • Flange Size
    2.75 in.
  • Tube OD
    1.5 in.
  • Rotatable Flanges
    One
  • Bolt Holes
    Tapped
  • Number of Holes
    6
  • Thread
    1/4-28
  • Material
    304 Stainless Steel
  • Dimension "A"
    1.50 in.
  • Dimension "B"
    2.75 in.
  • Dimension "C"
    2.31 in.
  • Dimension "D"
    0.50 in.
  • Dimension "F"
    0.21 in.
