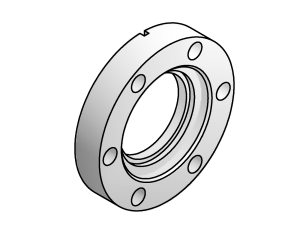

CF Rotatable UHV Flange

Compare	Model	Compatibility	rankScore	Flange Size	Tube OD	Bolt Holes	Availability	Price
100881018 CF Flange, 1.33 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $40 2 Weeks	100881018 CF Flange, 1.33 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	1.33 in.	0.75 in.	Thru Holes	2 Weeks	$40
100881025 CF Flange, 1.33 in., 0.75 in. O.D. Tube Bore, Rotatable, 8-32 Tapped Holes $65 Contact Us	100881025 CF Flange, 1.33 in., 0.75 in. O.D. Tube Bore, Rotatable, 8-32 Tapped Holes	UNIVERSAL	1.0	1.33 in.	0.75 in.	Tapped	Contact Us	$65
100882011 CF Flange, 2.125 in., 0.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $423.85 Contact Us	100882011 CF Flange, 2.125 in., 0.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.125 in.	0.25 in.	Thru Holes	Contact Us	$423.85
100882012 CF Flange, 2.125 in., 0.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $136.99 4 Weeks	100882012 CF Flange, 2.125 in., 0.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.125 in.	0.5 in.	Thru Holes	4 Weeks	$136.99
100882013 CF Flange, 2.125 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $53 7 Weeks	100882013 CF Flange, 2.125 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.125 in.	0.75 in.	Thru Holes	7 Weeks	$53
100882014 CF Flange, 2.125 in., 1.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $58 6 Weeks	100882014 CF Flange, 2.125 in., 1.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.125 in.	1.0 in.	Thru Holes	6 Weeks	$58
100882016 CF Flange, 2.125 in., 0.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $456.43 Contact Us	100882016 CF Flange, 2.125 in., 0.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.125 in.	0.25 in.	Tapped	Contact Us	$456.43
100882017 CF Flange, 2.125 in., 0.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $174.95 Contact Us	100882017 CF Flange, 2.125 in., 0.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.125 in.	0.5 in.	Tapped	Contact Us	$174.95
100882018 CF Flange, 2.125 in., 0.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $456.43 Contact Us	100882018 CF Flange, 2.125 in., 0.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.125 in.	0.75 in.	Tapped	Contact Us	$456.43
100882019 CF Flange, 2.125 in., 1.0 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $55 Contact Us	100882019 CF Flange, 2.125 in., 1.0 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.125 in.	1.0 in.	Tapped	Contact Us	$55

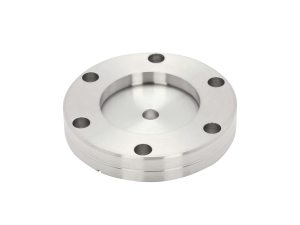

100883015 CF Flange, 2.75 in., 0.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $57 Contact Us	100883015 CF Flange, 2.75 in., 0.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	0.25 in.	Thru Holes	Contact Us	$57

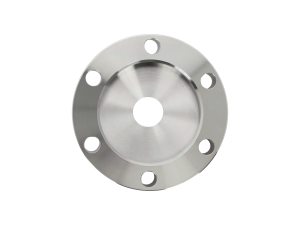

100883016 CF Flange, 2.75 in., 0.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $56 6 Weeks	100883016 CF Flange, 2.75 in., 0.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	0.5 in.	Thru Holes	6 Weeks	$56
100883017 CF Flange, 2.75 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $423.87 6 Weeks	100883017 CF Flange, 2.75 in., 0.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	0.75 in.	Thru Holes	6 Weeks	$423.87
100883018 CF Flange, 2.75 in., 1.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $58 8 Weeks	100883018 CF Flange, 2.75 in., 1.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	1.0 in.	Thru Holes	8 Weeks	$58
100883019 CF Flange, 2.75 in., 1.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $63 Contact Us	100883019 CF Flange, 2.75 in., 1.25 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	1.25 in.	Thru Holes	Contact Us	$63

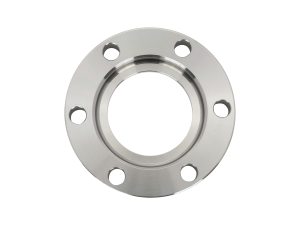

100883020 CF Flange, 2.75 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $61 4 Weeks	100883020 CF Flange, 2.75 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	1.5 in.	Thru Holes	4 Weeks	$61
100883022 CF Flange, 2.75 in., 0.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $65 Contact Us	100883022 CF Flange, 2.75 in., 0.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	0.25 in.	Tapped	Contact Us	$65
100883023 CF Flange, 2.75 in., 0.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $63 Contact Us	100883023 CF Flange, 2.75 in., 0.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	0.5 in.	Tapped	Contact Us	$63
100883024 CF Flange, 2.75 in., 0.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $432.70 Contact Us	100883024 CF Flange, 2.75 in., 0.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	0.75 in.	Tapped	Contact Us	$432.70
100883025 CF Flange, 2.75 in., 1.0 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $65 Contact Us	100883025 CF Flange, 2.75 in., 1.0 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	1.0 in.	Tapped	Contact Us	$65
100883026 CF Flange, 2.75 in., 1.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $111.61 Contact Us	100883026 CF Flange, 2.75 in., 1.25 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	1.25 in.	Tapped	Contact Us	$111.61

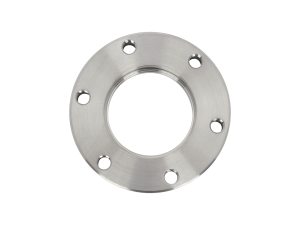

100883027 CF Flange, 2.75 in., 1.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $54 7 Weeks	100883027 CF Flange, 2.75 in., 1.5 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	1.5 in.	Tapped	7 Weeks	$54

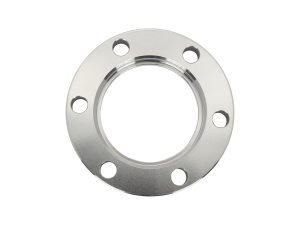

100883065 CF Flange, 2.75 in., 1.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $48 6 Weeks	100883065 CF Flange, 2.75 in., 1.75 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	2.75 in.	1.75 in.	Thru Holes	6 Weeks	$48
100883067 CF Flange, 2.75 in., 1.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes $59 Contact Us	100883067 CF Flange, 2.75 in., 1.75 in. O.D. Tube Bore, Rotatable, 1/4-28 Tapped Holes	UNIVERSAL	1.0	2.75 in.	1.75 in.	Tapped	Contact Us	$59
100884007 CF Flange, 3.375 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $120 Contact Us	100884007 CF Flange, 3.375 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	3.375 in.	1.5 in.	Thru Holes	Contact Us	$120
100884008 CF Flange, 3.375 in., 2.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $87 1 Week	100884008 CF Flange, 3.375 in., 2.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	3.375 in.	2.0 in.	Thru Holes	1 Week	$87
100884010 CF Flange, 3.375 in., 1.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $481.95 Contact Us	100884010 CF Flange, 3.375 in., 1.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	3.375 in.	1.5 in.	Tapped	Contact Us	$481.95
100884011 CF Flange, 3.375 in., 2.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $453.35 Contact Us	100884011 CF Flange, 3.375 in., 2.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	3.375 in.	2.0 in.	Tapped	Contact Us	$453.35
100885009 CF Flange, 4.5 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $481.31 Contact Us	100885009 CF Flange, 4.5 in., 1.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.5 in.	1.5 in.	Thru Holes	Contact Us	$481.31
100885010 CF Flange, 4.5 in., 2.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $493.55 Contact Us	100885010 CF Flange, 4.5 in., 2.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.5 in.	2.0 in.	Thru Holes	Contact Us	$493.55
100885011 CF Flange, 4.5 in., 2.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $136 6 Weeks	100885011 CF Flange, 4.5 in., 2.5 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.5 in.	2.5 in.	Thru Holes	6 Weeks	$136
100885013 CF Flange, 4.5 in., 1.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $490.19 Contact Us	100885013 CF Flange, 4.5 in., 1.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.5 in.	1.5 in.	Tapped	Contact Us	$490.19
100885014 CF Flange, 4.5 in., 2.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $501.21 Contact Us	100885014 CF Flange, 4.5 in., 2.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.5 in.	2.0 in.	Tapped	Contact Us	$501.21
100885015 CF Flange, 4.5 in., 2.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $136 6 Weeks	100885015 CF Flange, 4.5 in., 2.5 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.5 in.	2.5 in.	Tapped	6 Weeks	$136
100885505 CF Flange, 4.625 in., 3.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes $150 Contact Us	100885505 CF Flange, 4.625 in., 3.0 in. O.D. Tube Bore, Rotatable, Thru Bolt Holes	UNIVERSAL	1.0	4.625 in.	3.0 in.	Thru Holes	Contact Us	$150
100885507 CF Flange, 4.625 in., 3.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes $283.20 6 Weeks	100885507 CF Flange, 4.625 in., 3.0 in. O.D. Tube Bore, Rotatable, 5/16-24 Tapped Holes	UNIVERSAL	1.0	4.625 in.	3.0 in.	Tapped	6 Weeks	$283.20

Specifications

Component Type

Rotatable Flange
Series

Series 88
Flange Type

CF

Rotatable Flanges

One
Material

304 Stainless Steel

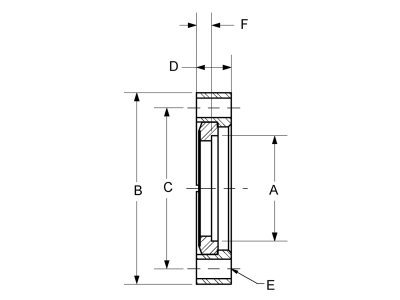

Rotatable CF Flange Dimensions

Model	Dimension "A"	Dimension "B"	Dimension "C"	Dimension "D"	Dimension "F"
100881018	0.75 in.	1.33 in.	1.06 in.	0.30 in.	0.18 in.
100881025	0.75 in.	1.33 in.	1.06 in.	0.30 in.	0.18 in.
100882011	0.25 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882012	0.50 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882013	0.75 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882014	1.00 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882016	0.25 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882017	0.50 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882018	0.75 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100882019	1.00 in.	2.12 in.	1.62 in.	0.50 in.	0.17 in.
100883015	0.25 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883016	0.50 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883017	0.75 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883018	1.00 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883019	1.25 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883020	1.50 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883022	0.25 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883023	0.50 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883024	0.75 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883025	1.00 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883026	1.25 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883027	1.50 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883065	1.75 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100883067	1.75 in.	2.75 in.	2.31 in.	0.50 in.	0.21 in.
100884007	1.50 in.	3.38 in.	2.85 in.	0.69 in.	0.22 in.
100884008	2.00 in.	3.38 in.	2.85 in.	0.69 in.	0.22 in.
100884010	1.50 in.	3.38 in.	2.85 in.	0.69 in.	0.22 in.
100884011	2.00 in.	3.38 in.	2.85 in.	0.69 in.	0.22 in.
100885009	1.50 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885010	2.00 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885011	2.50 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885013	1.50 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885014	2.00 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885015	2.50 in.	4.50 in.	3.63 in.	0.69 in.	0.38 in.
100885505	3.01 in.	4.61 in.	4.03 in.	0.75 in.	0.38 in.
100885507	3.01 in.	4.61 in.	4.03 in.	0.75 in.	0.38 in.

Notes:

See order table for number of bolt holes (E)
