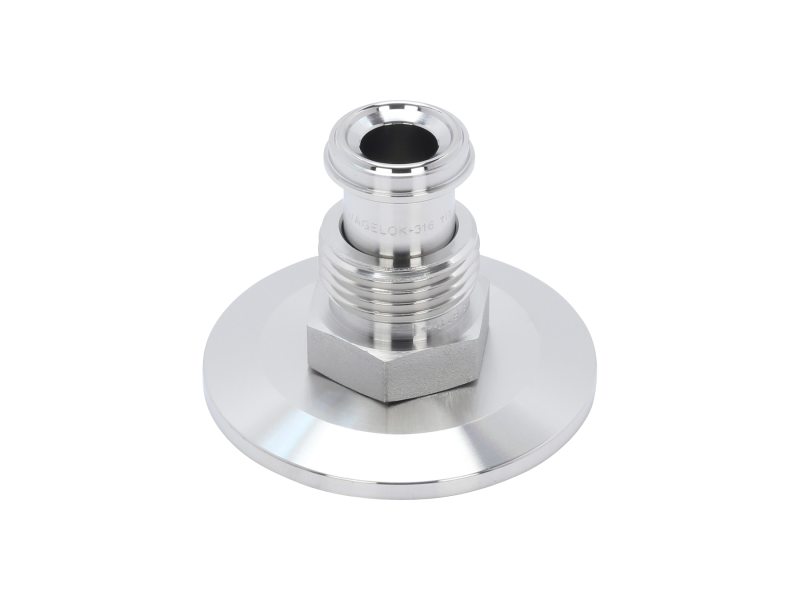

ISO-KF Flange Adapter, NW40 Size Flange to 0.5 inch Male VCR Fitting

Technical Specs

  • Component Type
    Male VCR Fitting Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW40
  • VCR Fitting Size
    8 VCR Male
  • Length
    1.60 in. (41 mm)
  • Inner Diameter
    0.41 in. (10 mm)
  • Dimension "A"
    1.60 in.
  • Dimension "B"
    0.41 in.
