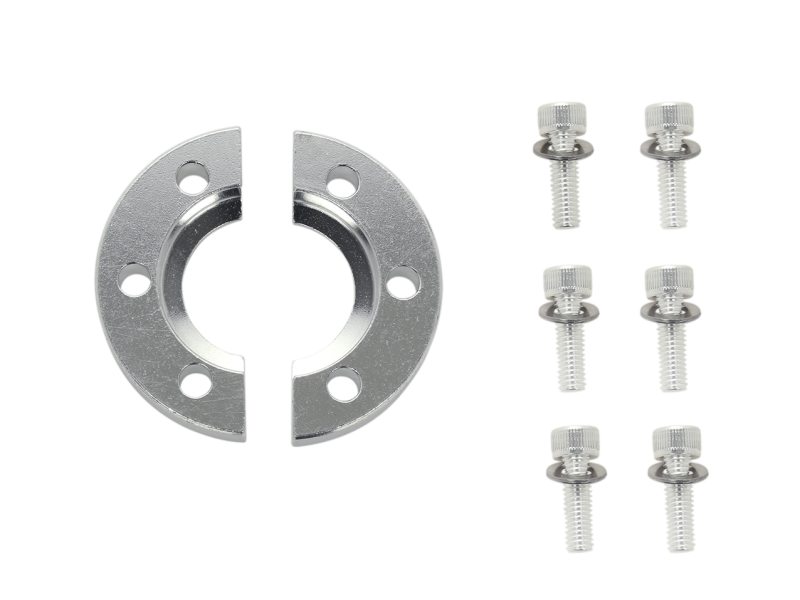

Bulkhead Flange Clamp, NW16 Size ISO-KF Flange, 6 Bolts, Aluminum

Technical Specs

  • Component Type
    Bulkhead Flange Clamp with silver-plated socket head cap screws
  • Series
    Series 31
  • Material
    Aluminum
  • Flange Type
    ISO-KF
  • Flange Size
    NW16
  • Width
    0.36 in. (9 mm)
  • Outer Diameter
    2.0 in. (50.8 mm)
  • Bolt Circle Diameter
    1.5 in. (38.1 mm)
  • Number of Bolt Holes
    6
  • Dimension "A"
    0.36 in.
  • Dimension "B"
    2.00 in.
  • Dimension "C"
    1.50 in.
