ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange, 304 Stainless Steel
Model: 100316705
ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange, 304 Stainless Steel
ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange, 304 Stainless Steel
Model: 100316705
Overview
Overview

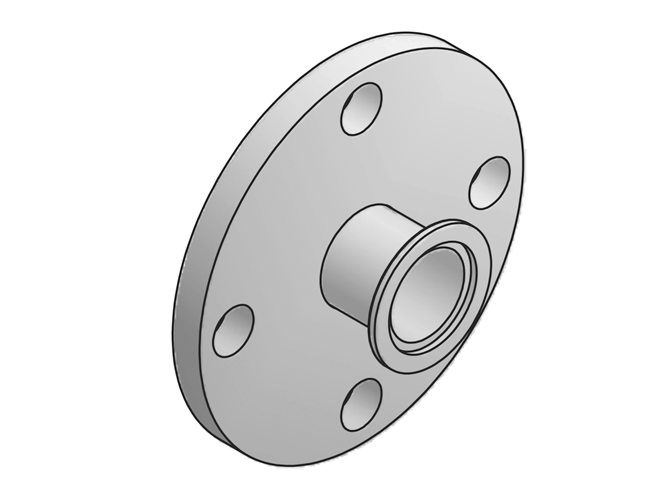

The 100316705 Flange Adapter is used to convert a size NW40 ISO-KF vacuum flange to a 2.0 inch ASA flange. This Series 31 flange adapter does not include an ASA O-Ring grove and is made with 304 Stainless Steel.
Technical Specs
-
Component TypeISO-KF to ASA Flange Adapter
-
SeriesSeries 31
-
Material304 Stainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW40
-
Flange Size 22.0 in. ASA
-
Length1.81 in. (46 mm)
-
Inner Diameter1.33 in. (34 mm)
-
Outer Diameter6.0 in. (152 mm)
-

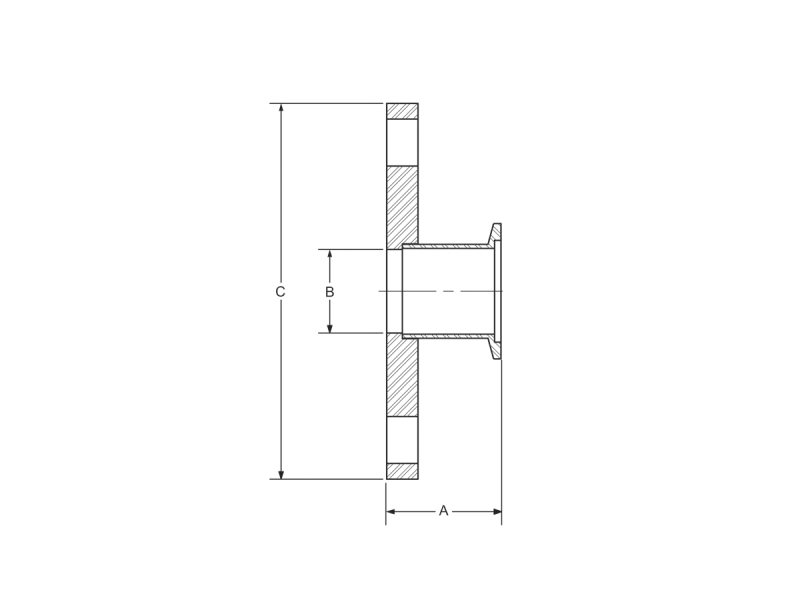

Dimension "A"1.81 in.
-
Dimension "B"1.33 in.
-
Dimension "C"6.0 in.
ISO-KF Flange Adapter, NW40 to 2.0 in. ASA Flange, 304 Stainless Steel
