ISO-KF Flange Adapter, NW16 Flange to 0.5 in. Diameter PVC Vacuum Hose
Model: 100316411
ISO-KF Flange Adapter, NW16 Flange to 0.5 in. Diameter PVC Vacuum Hose
ISO-KF Flange Adapter, NW16 Flange to 0.5 in. Diameter PVC Vacuum Hose
Model: 100316411
Overview
Overview

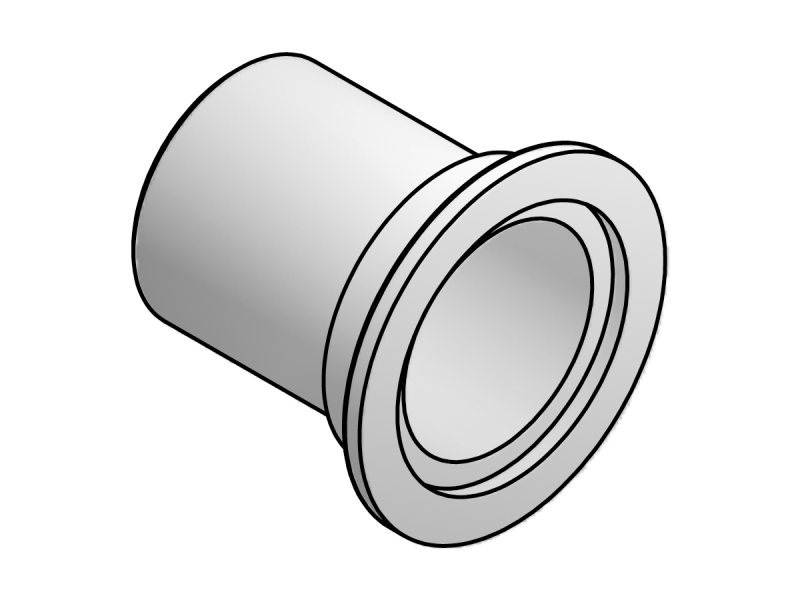

The 100316411 ISO-KF Flange Adapter is used to convert a NW16 size ISO-KF vacuum flange for use with 1/2 inch diameter PVC vacuum hose. This Series 31 adapter is made with 304 stainless steel and should be used with hose clamps.
Technical Specs
-
Component TypeHose Adapter
-
SeriesSeries 31
-
MaterialStainless Steel
-
Flange TypeISO-KF
-
Flange SizeNW16
-
Length1.26 in. (32 mm)
-
Outer Diameter0.5 in. (12.7 mm)
-
Hose Size0.5 in.
-
Dimension "A"0.5 in.
-
Dimension "B"1.26 in.
-
Dimension "C"0.79 in.
