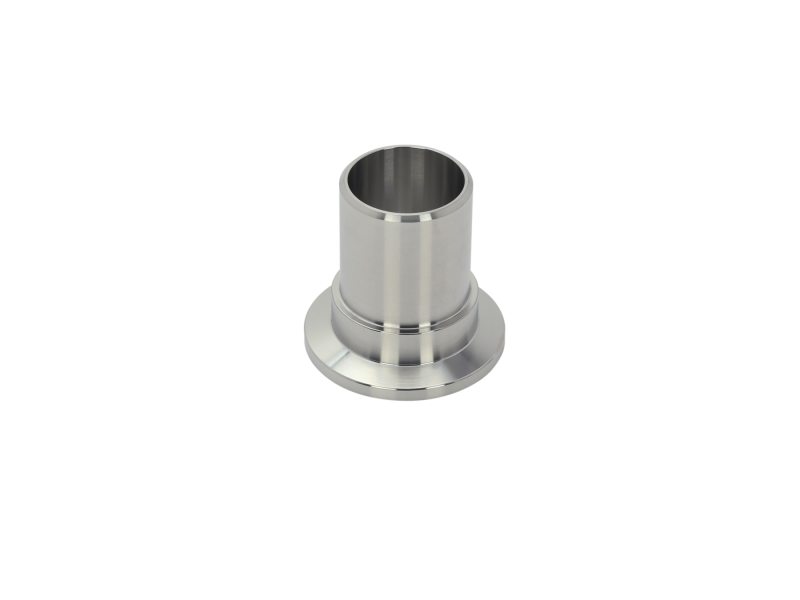

ISO-KF Flange Adapter, NW25 Flange to 1.0 in. Diameter PVC Vacuum Hose

Technical Specs

  • Component Type
    Hose Adapter
  • Series
    Series 31
  • Material
    Stainless Steel
  • Flange Type
    ISO-KF
  • Flange Size
    NW25
  • Length
    1.5 in. (38.1 mm)
  • Outer Diameter
    1.0 in. (25.4 mm)
  • Hose Size
    1.0 in.
  • Dimension "A"
    1.0 in.
  • Dimension "B"
    1.50 in.
  • Dimension "C"
    1.02 in.
