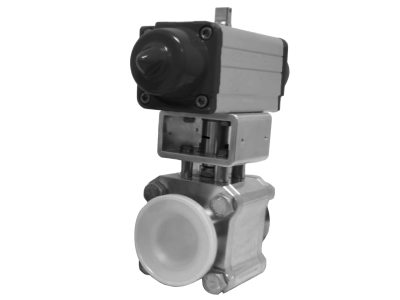

High Vacuum Ball Valve, 2-way, Pneumatic, NW40 Port, ISO-KF Flange

Technical Specs

  • Type
    2-way Ball Valve
  • Port Size
    NW40
  • Flange Size
    NW40
  • Flange Type
    ISO-KF
  • Helium Leak Rate
    <1 X 10-9 std.cc/sec.
  • Actuation
    Pneumatic
  • Body Materials
    316L stainless steel
  • Seal
    Viton
  • Seat
    Teflon
  • Maximum Bakeout Temperature
    150°C
  • Ball Port Diameter
    1.25 in.
  • Tube Outer Diameter
    1.50 in.

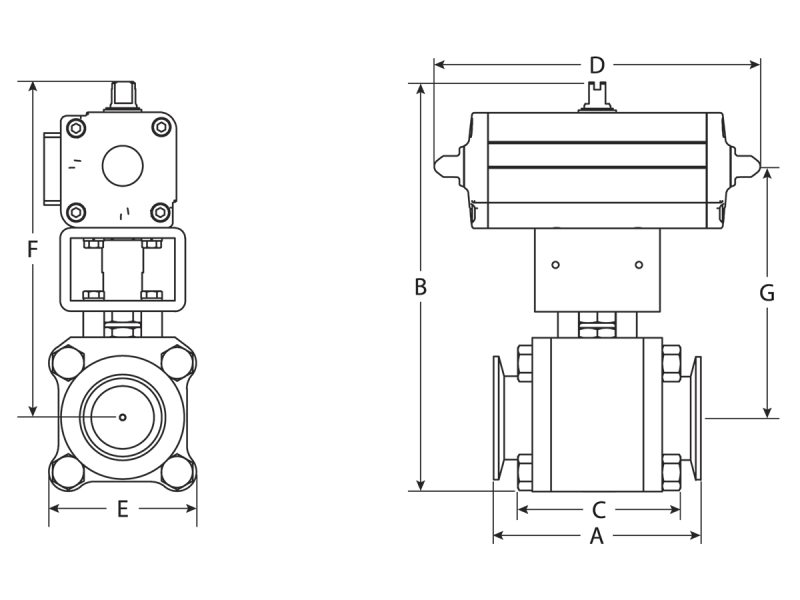

  • Dimension "A"
    4.65 in.
  • Dimension "B"
    9.20 in.
  • Dimension "C"
    3.50 in.
  • Dimension "D"
    10.20 in.
  • Dimension "E"
    3.20 in.
  • Dimension "F"
    7.60 in.
  • Dimension "G"
    5.60 in.
Notes:

Other stem seal materials are available.
