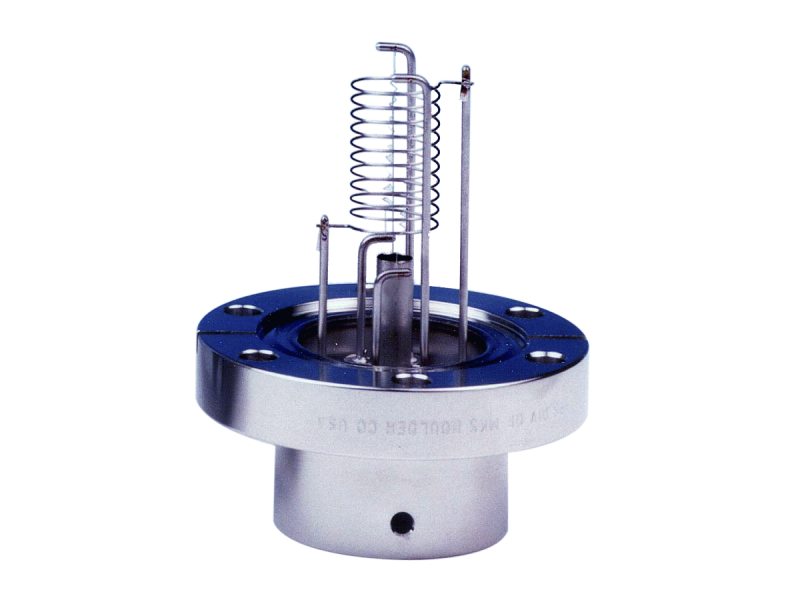

The 100005980 Nude Tube Vacuum Sensor features a tungsten filament for a 10-2 - 10-10 Torr vacuum measurement range and a 2.75 in. CF flange fitting. This Bayard-Alpert style ionization vacuum sensor, which uses a fine wire collector located in the center of a grid. Because of its small area, few x-rays hit the collector, and a vacuum gauge can measure pressures to very low levels. Because the sensing portion of the tube is located within the vacuum system and experiences the system true pressure, nude tubes give a representative pressure measurement and respond more quickly than a glass envelope sensor to pressure changes.
Additional CAD file downloads are not available for this product.
100005980 - Drawings
Additional drawings are not available for this product.
100005980
Sign In
Password Reset
Enter your email address below to reset your account password.
Password Reset
Email Verification Required
Cart Items Updated
Remove Product
Remove this product from your comparison list?
Check Order Status
Provide an order number and postal code to check the status of an order or download an invoice for an order that has shipped. Login to view your complete order history.
Sign In Required
To access this and other valuable technical resources, please sign in or register for a new online account.
Add to Cart
Hot Cathode Sensor, Nude Tube, 10-2 - 10-10 Torr, Tungsten, 2.75 in. CF
